Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

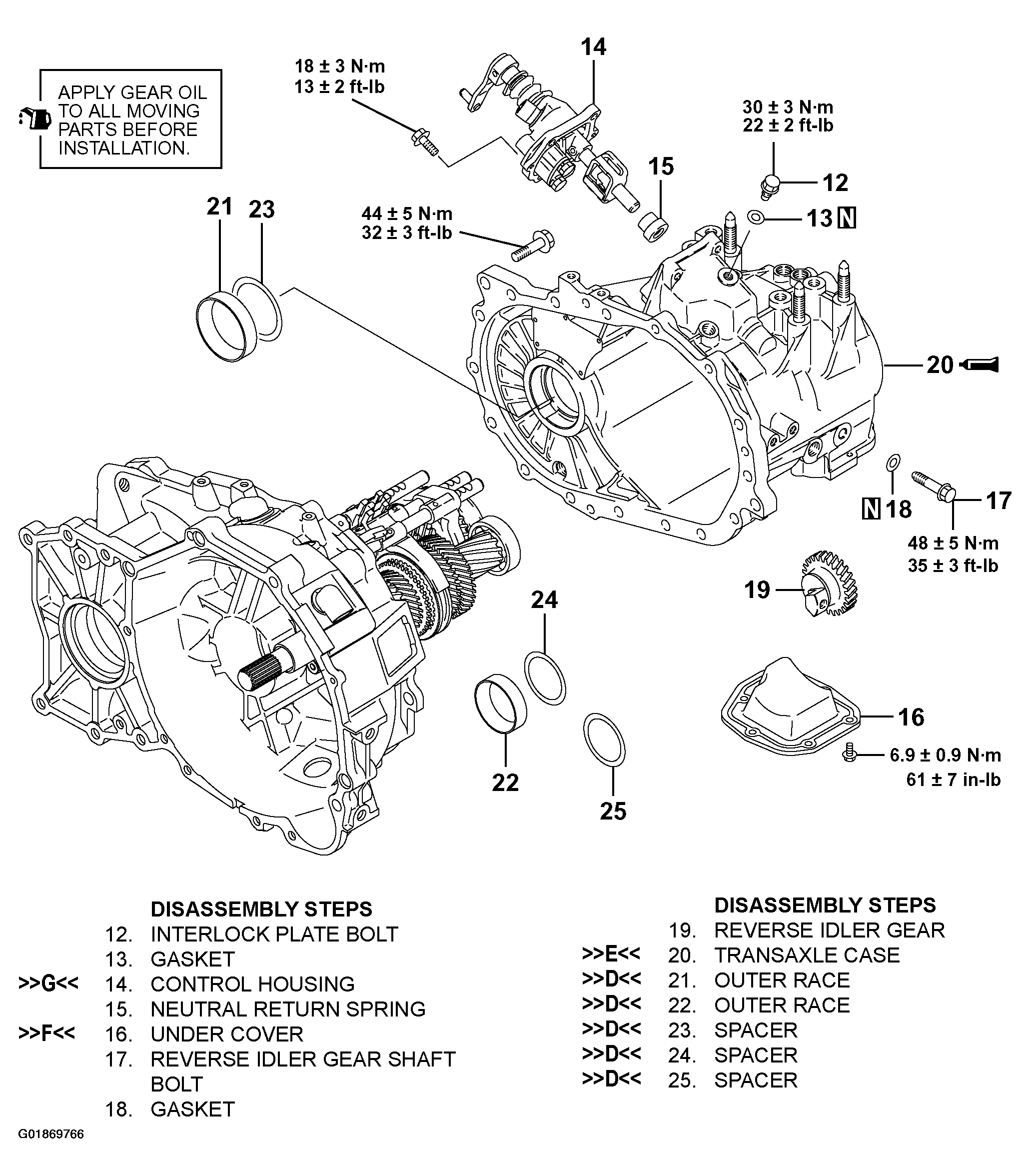

Fig 1: Exploded View And Torque Specifications Of Transaxle (1 of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

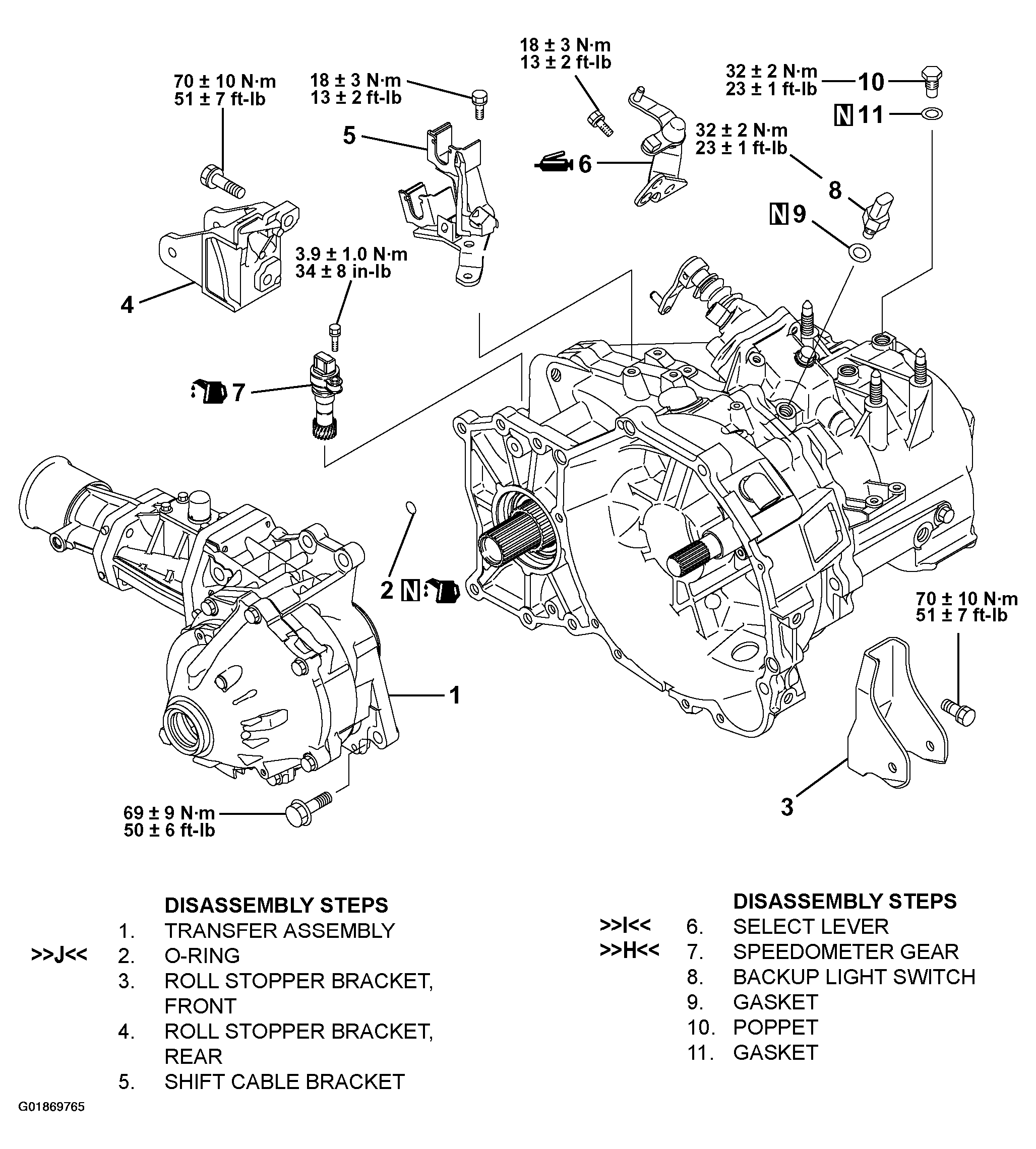

Fig 2: Exploded View And Torque Specifications Of Transaxle (2 of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

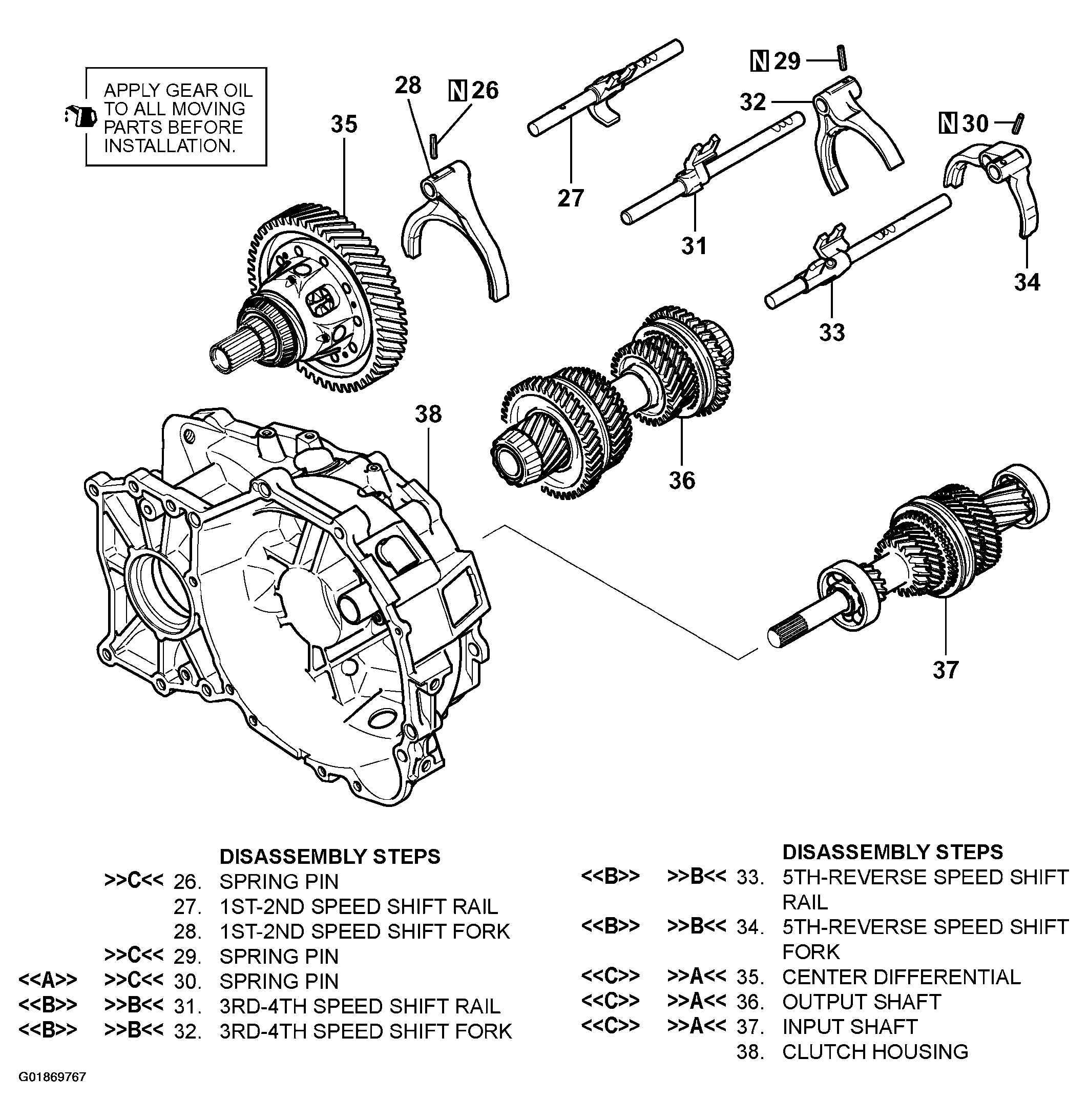

Fig 3: Exploded View And Torque Specifications Of Transaxle (3 of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
