Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

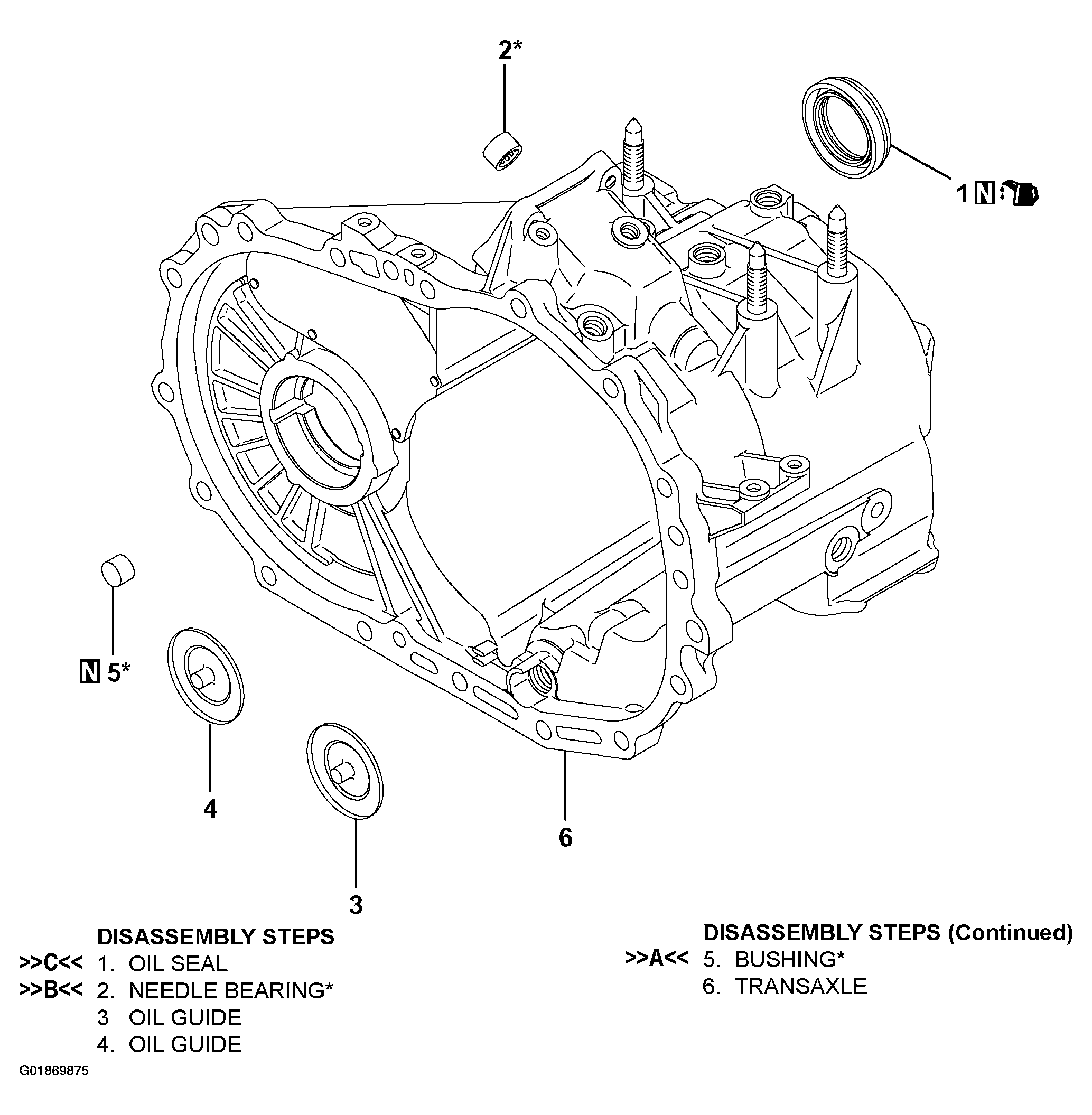

Fig 1: Exploded View Of Transmission Case

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: *: Refer to the needle bearing and bushing installation procedures only when replacing the transaxle case.

Required Special Tools:
