Fan Control Relay Continuity Check
WARNING:
This page is about a different variant/trim than selected.

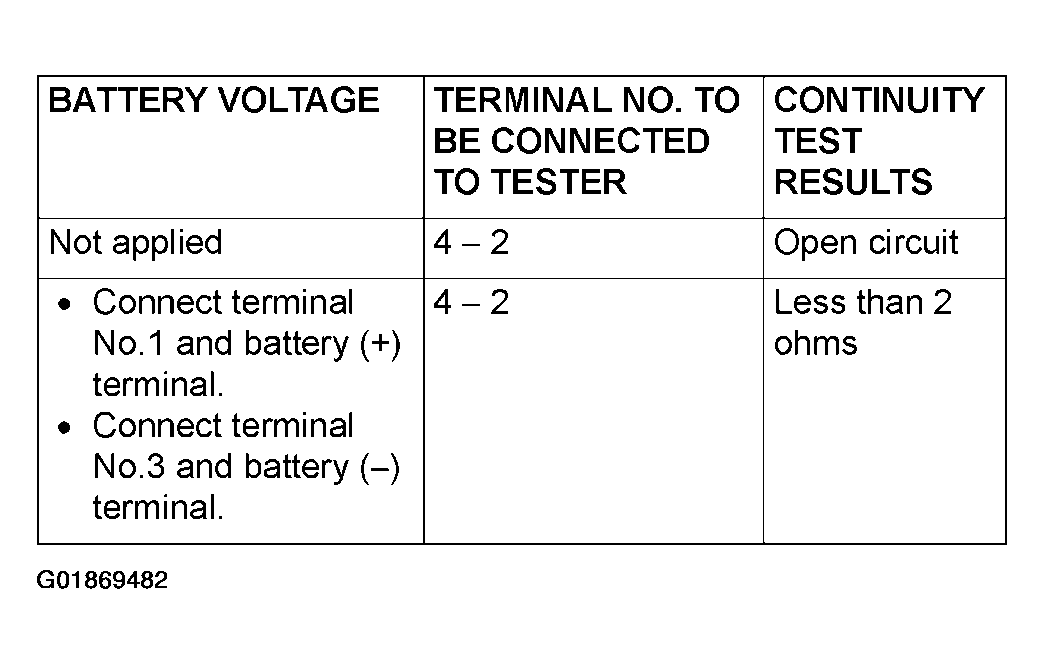

Fig 1: Fan Control Relay Continuity Check Reference Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

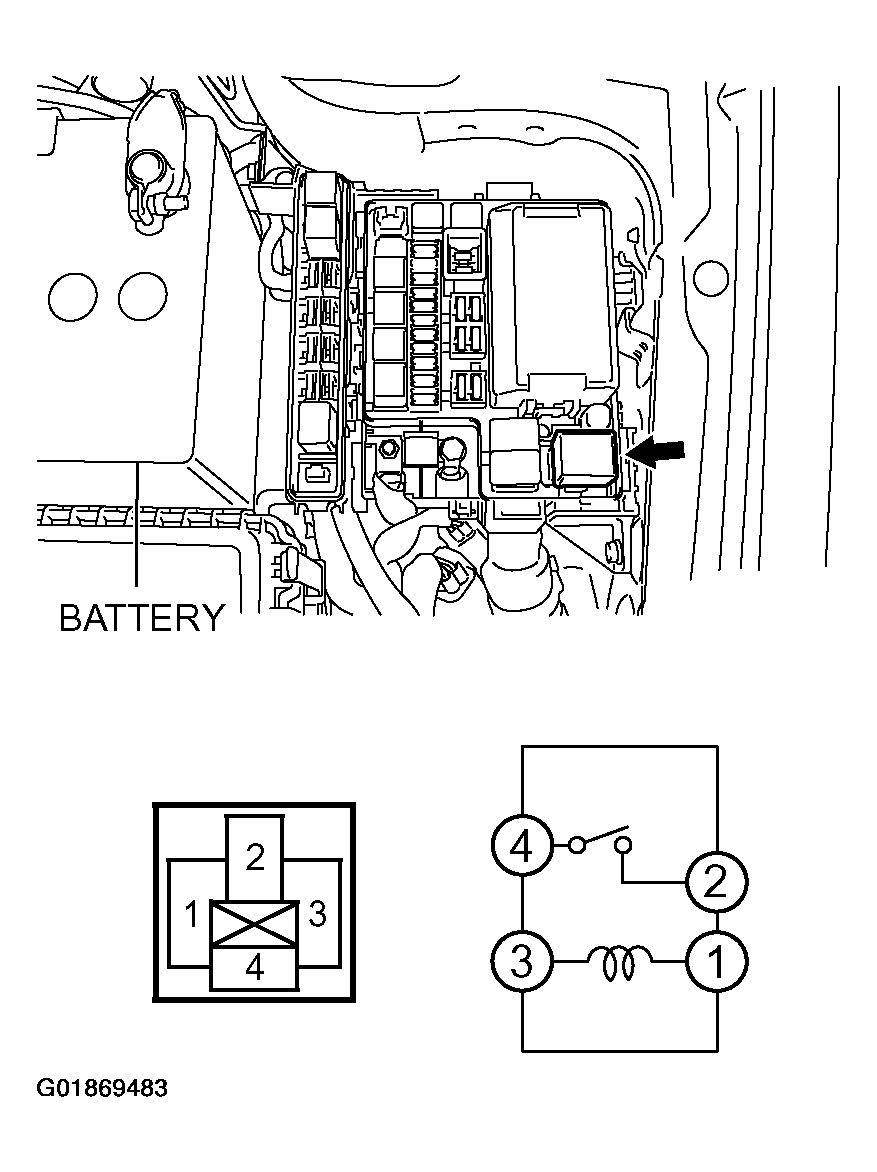

Fig 2: Checking Fan Control Relay Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
