Disassembly And Assembly: Notes

CAUTION: Never disassemble the terminal assembly. It cannot be reassembled.

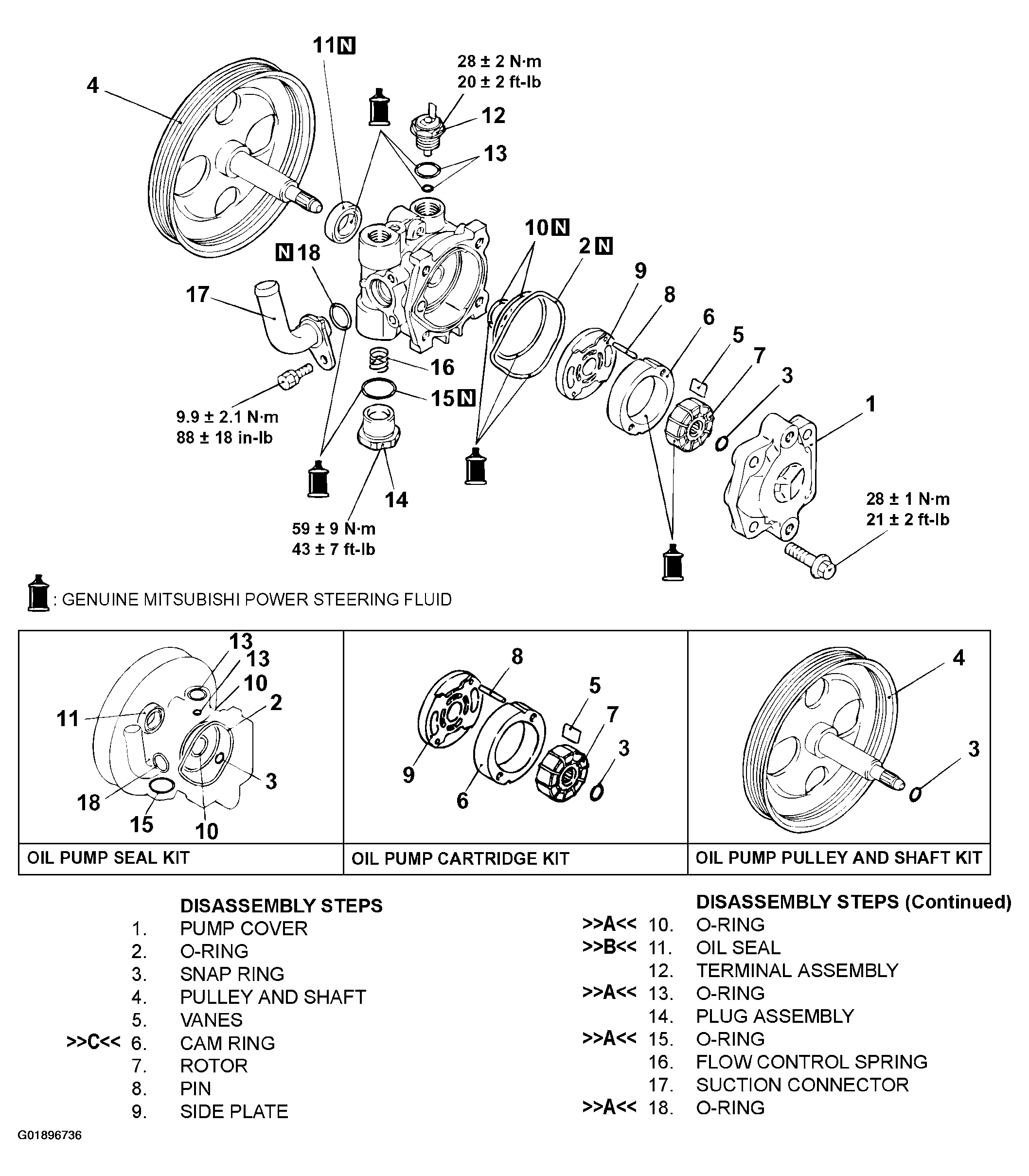

Fig 1: Disassembling/Assembling Power Steering Oil Pump Assembly
G01896736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying O-Rings
G01896737Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
