FixVault
Home
›
Mitsubishi
›
2003
›
Lancer LS
›
Repair and Diagnosis
›
Steering
›
Manual Steering
›
Steering - Except Evolution
›
Specifications
›
Service Specifications
Service Specifications

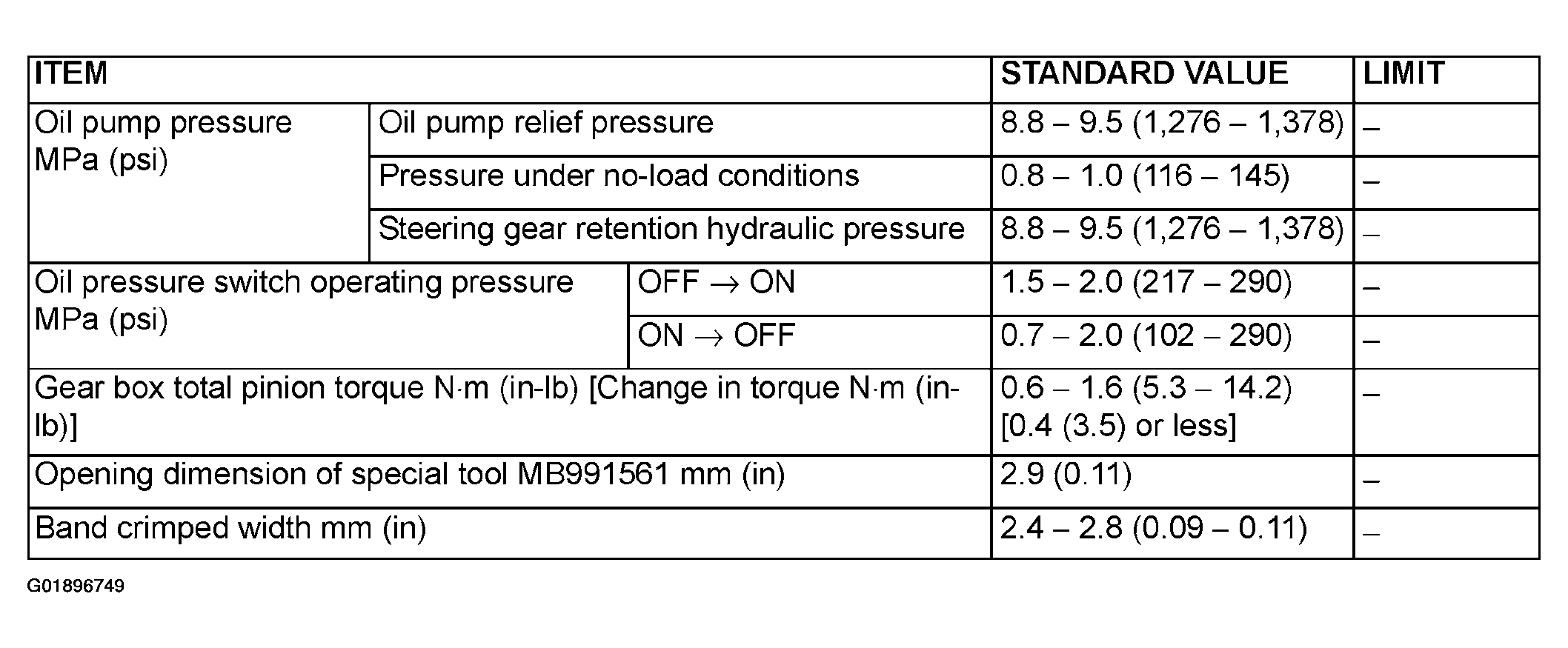

Fig 1: Service Specification (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

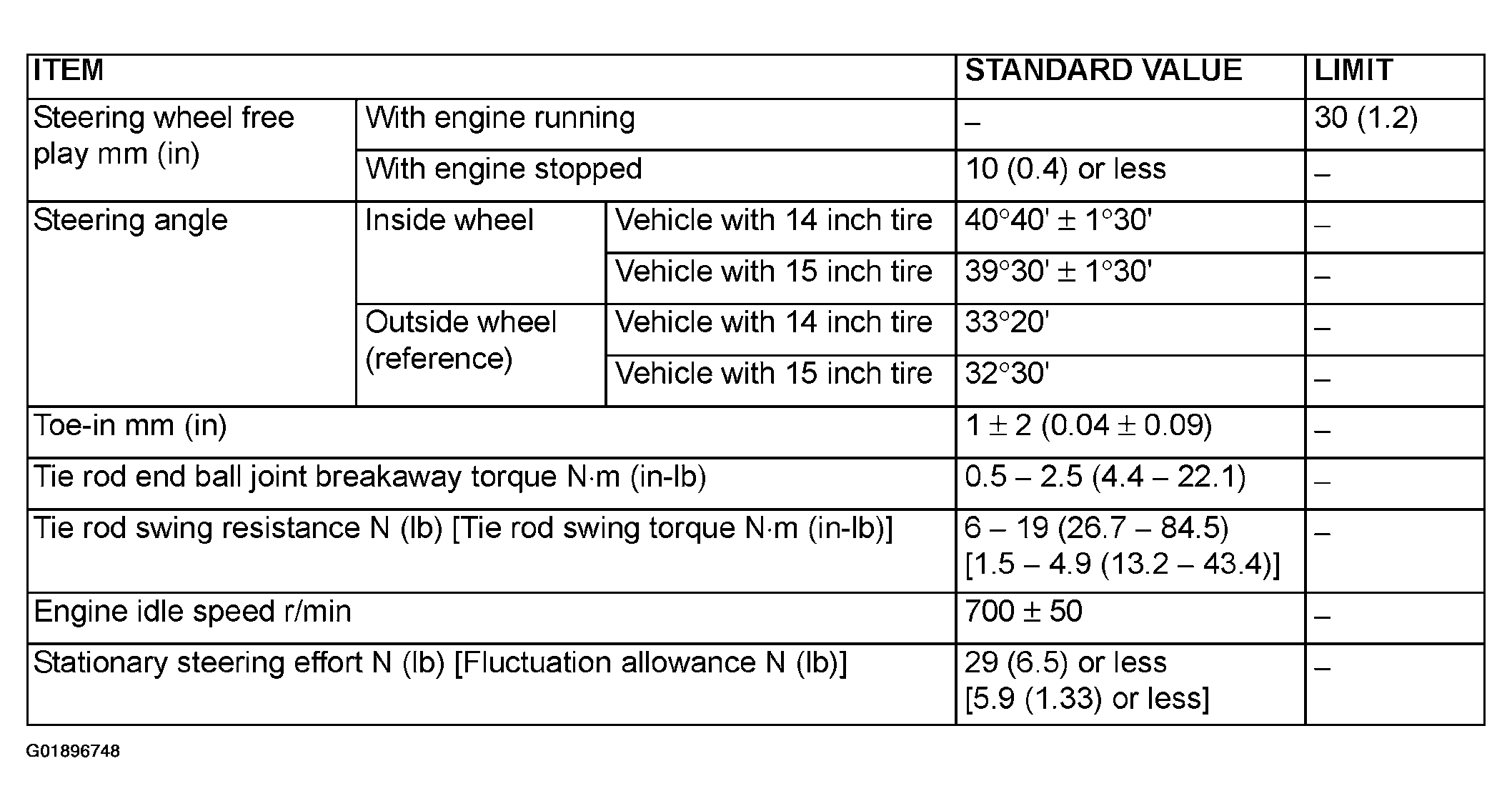

Fig 2: Service Specification (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
