Diagnosis Introduction - Except Evolution
›
Actuator Test Reference Table
Actuator Test Reference Table

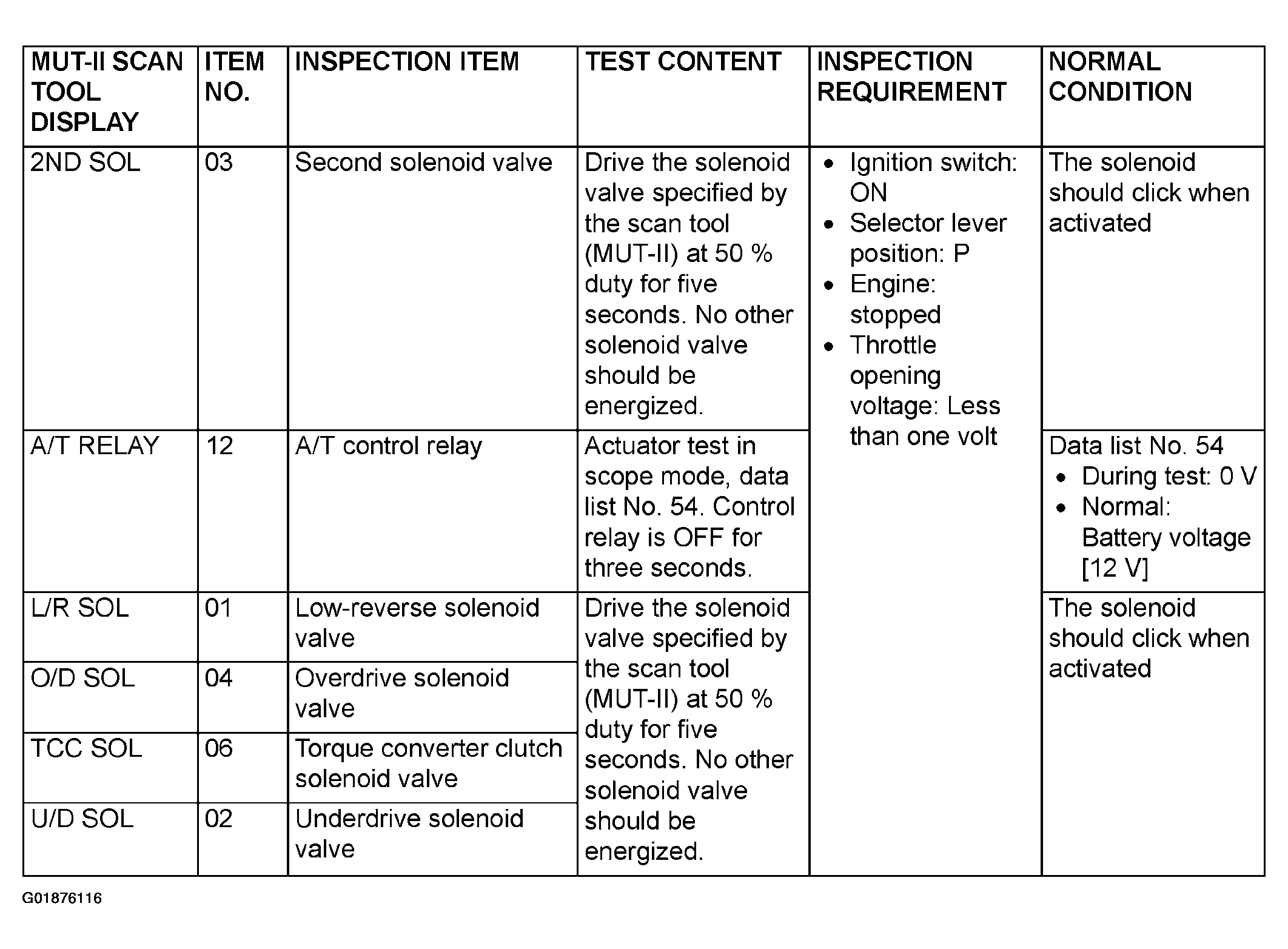

Fig 1: Actuator Test Reference Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
