Inspection Procedure Using An Oscilloscope
Inspection Procedure Using An Oscilloscope

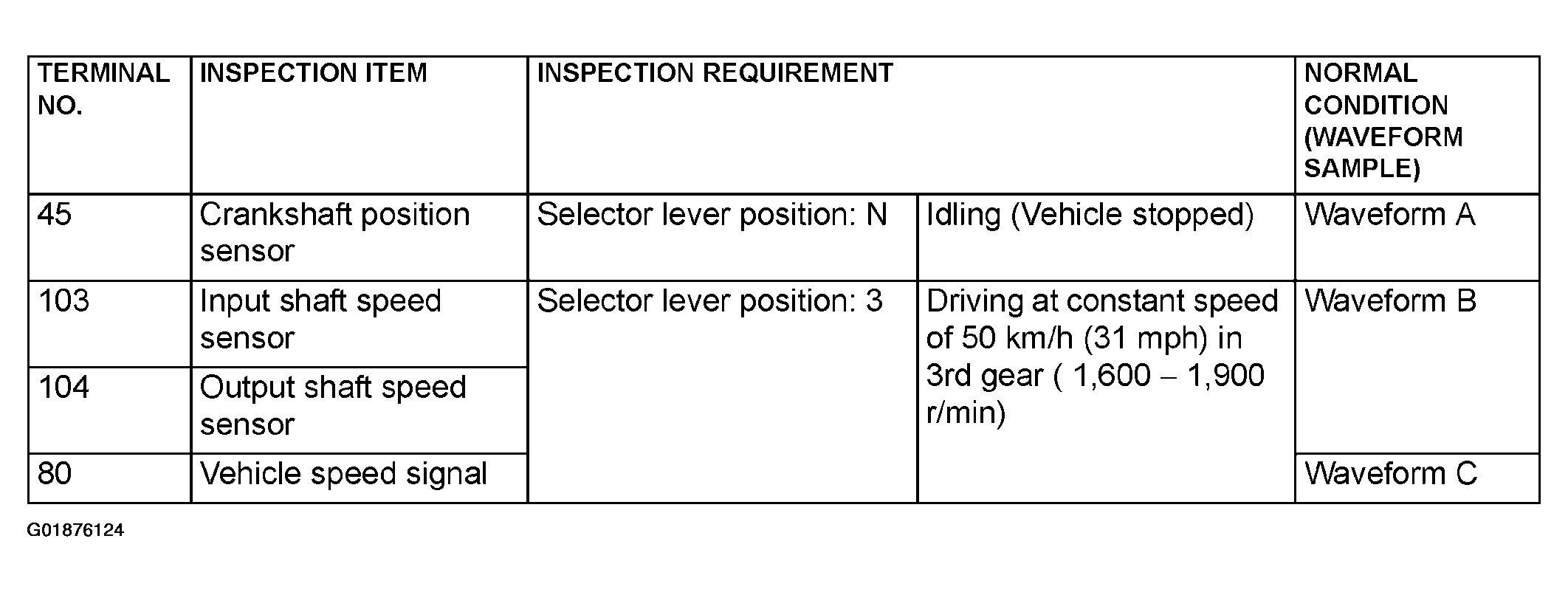

Fig 1: Inspection Procedure Chart (Using Oscilloscope - 1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

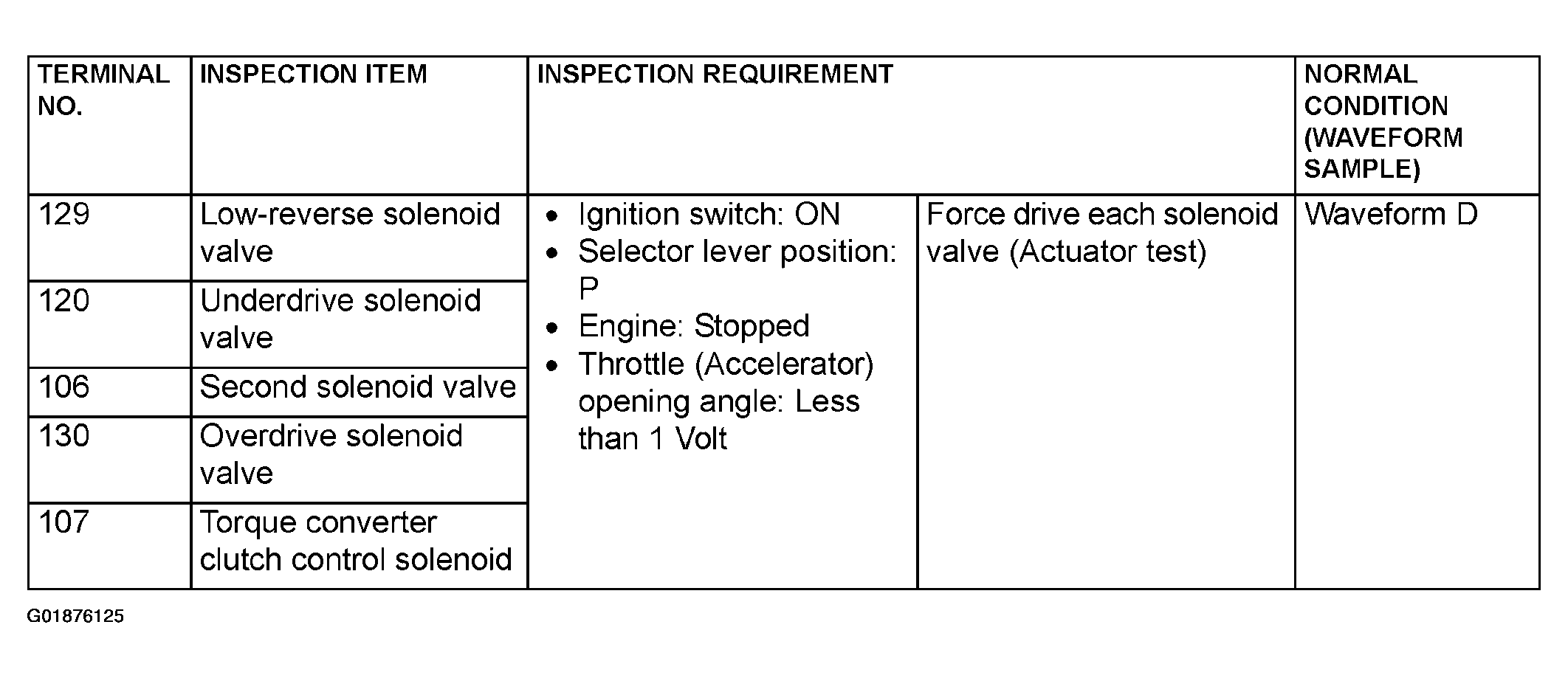

Fig 2: Inspection Procedure Chart (Using Oscilloscope - 2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

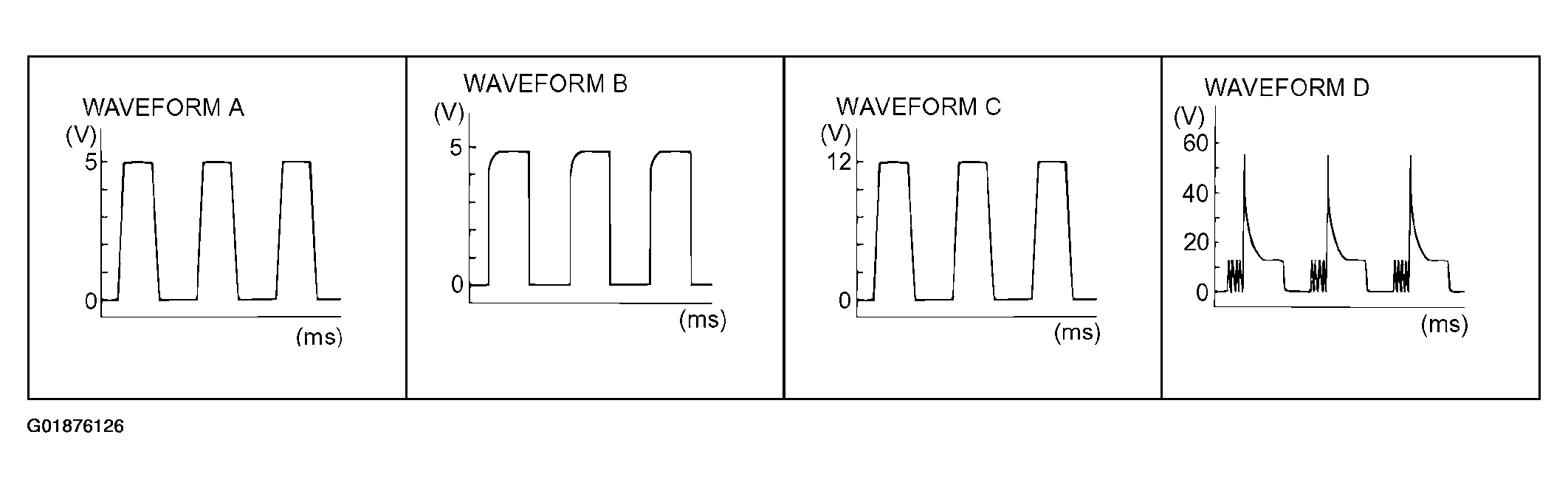

Fig 3: Identifying Various Wave Form Signals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
