Diagnosis Introduction - Except Evolution
›
Pcm Terminal Resistance And Continuity Inspection Chart
Pcm Terminal Resistance And Continuity Inspection Chart
Fig 1: Identifying PCM Connector Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
The PCM connectors should be disconnected for this inspection.

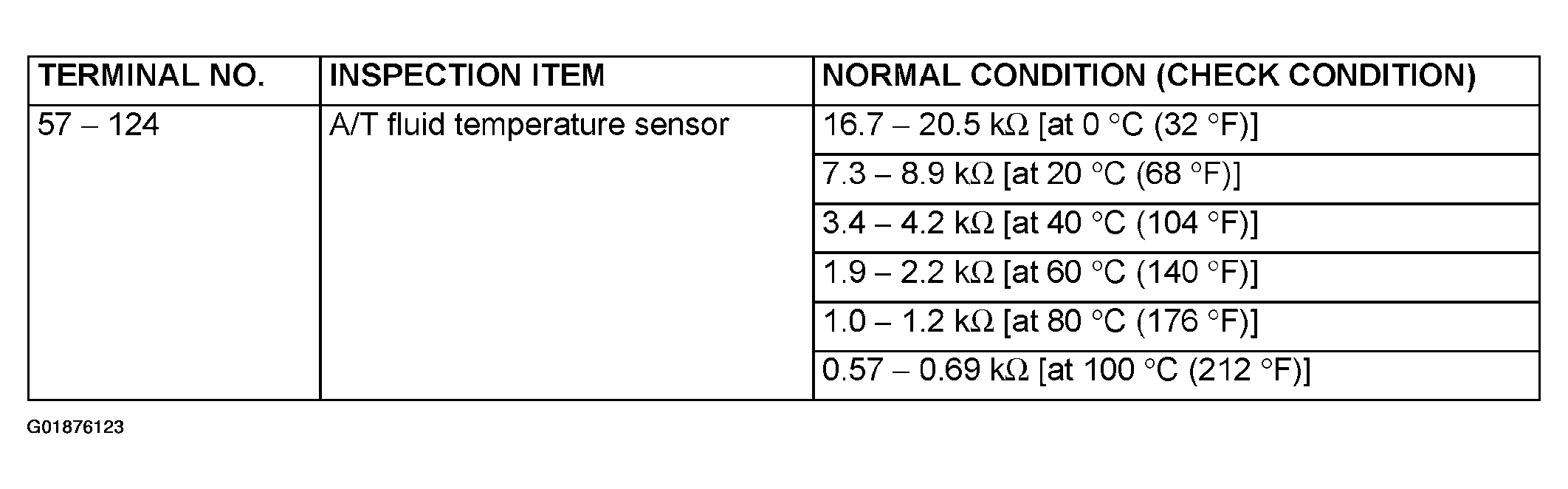

Fig 2: PCM Terminal Resistance & Continuity Inspection Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
