Components And Functions

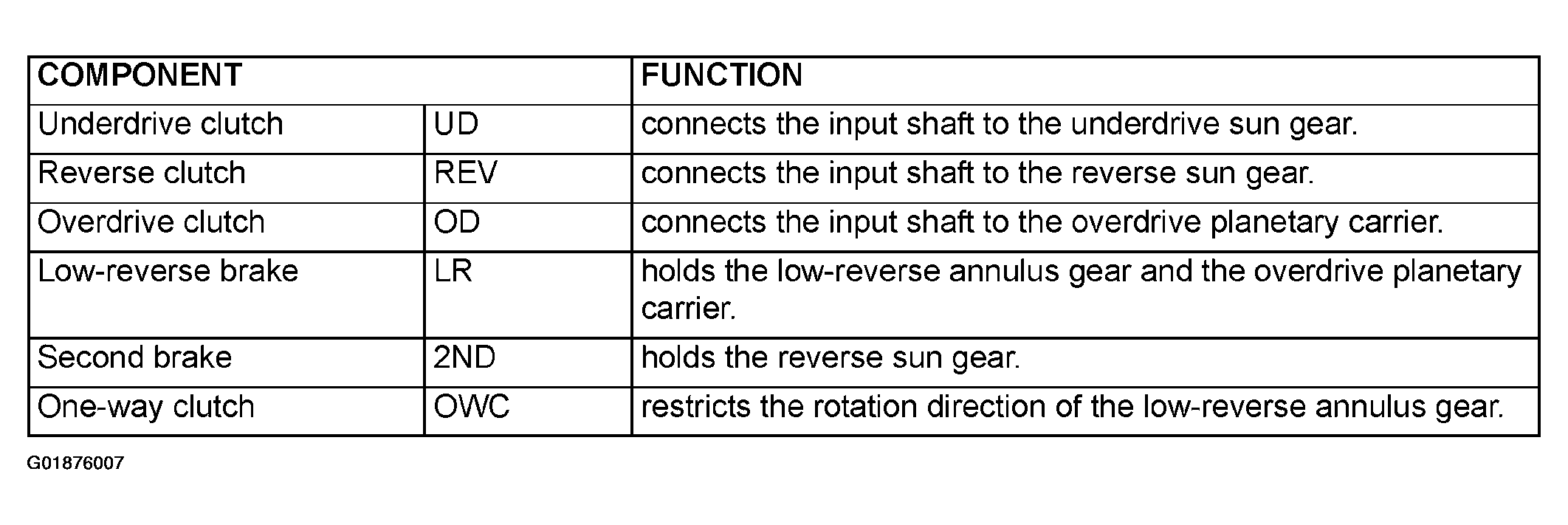

Fig 1: Transaxle Components & Functions Table
G01876007Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
