General Description
›
Sectional View
Sectional View

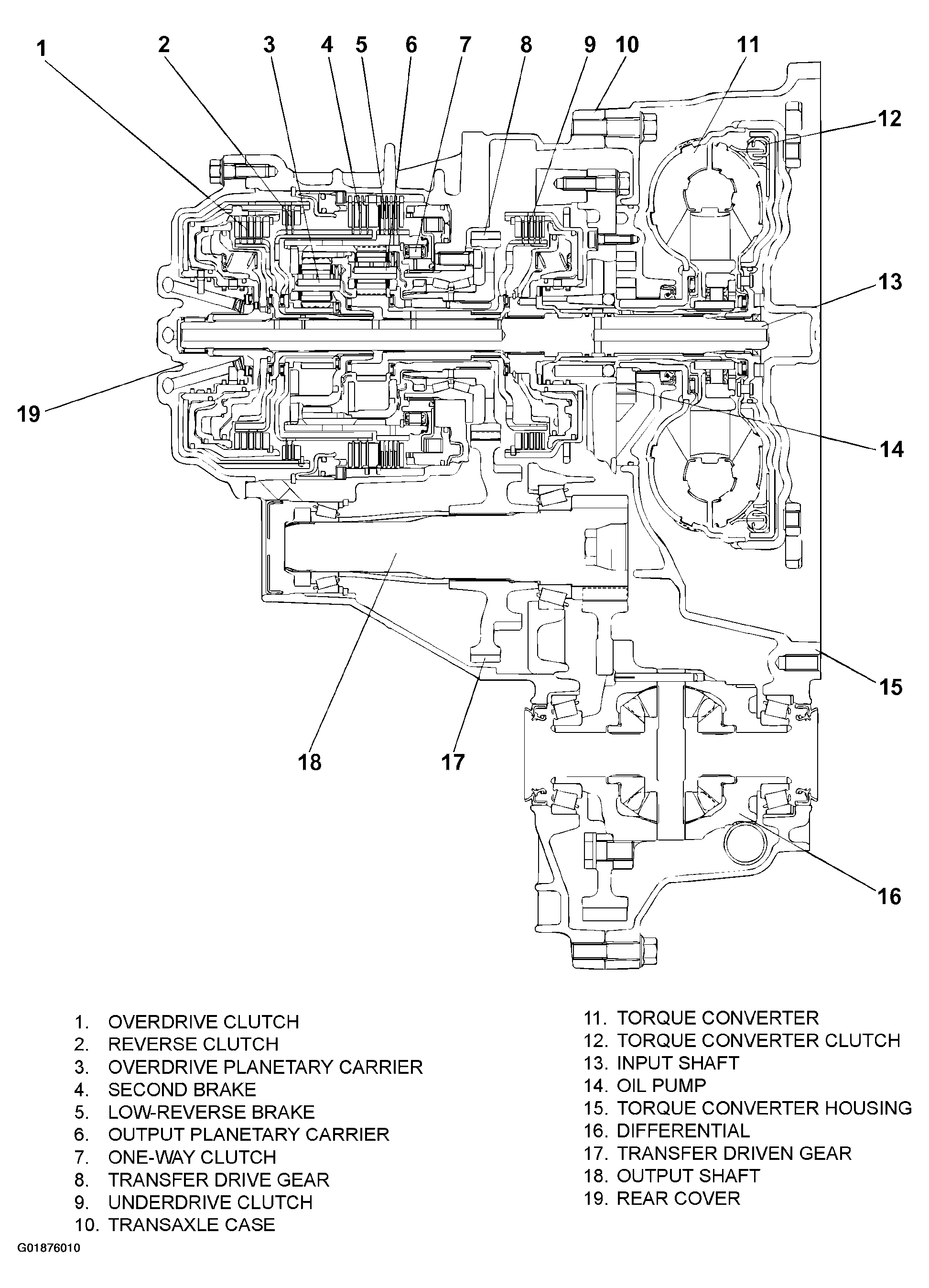

Fig 1: A/T Sectional View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
