Disassembly And Assembly

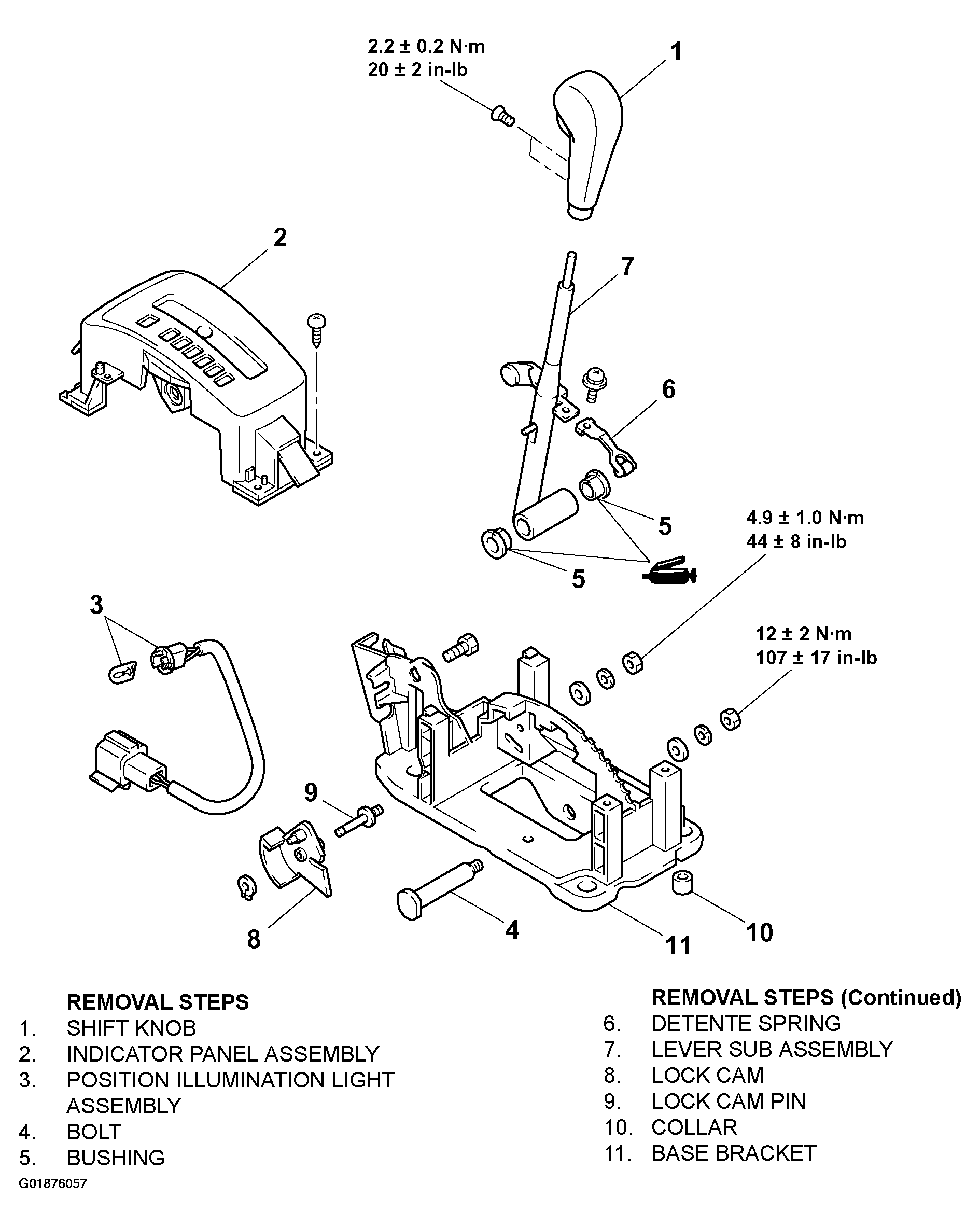

Fig 1: Disassembly/Assembly Of Transaxle Control Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
