General Description
›
Sectional View
Sectional View

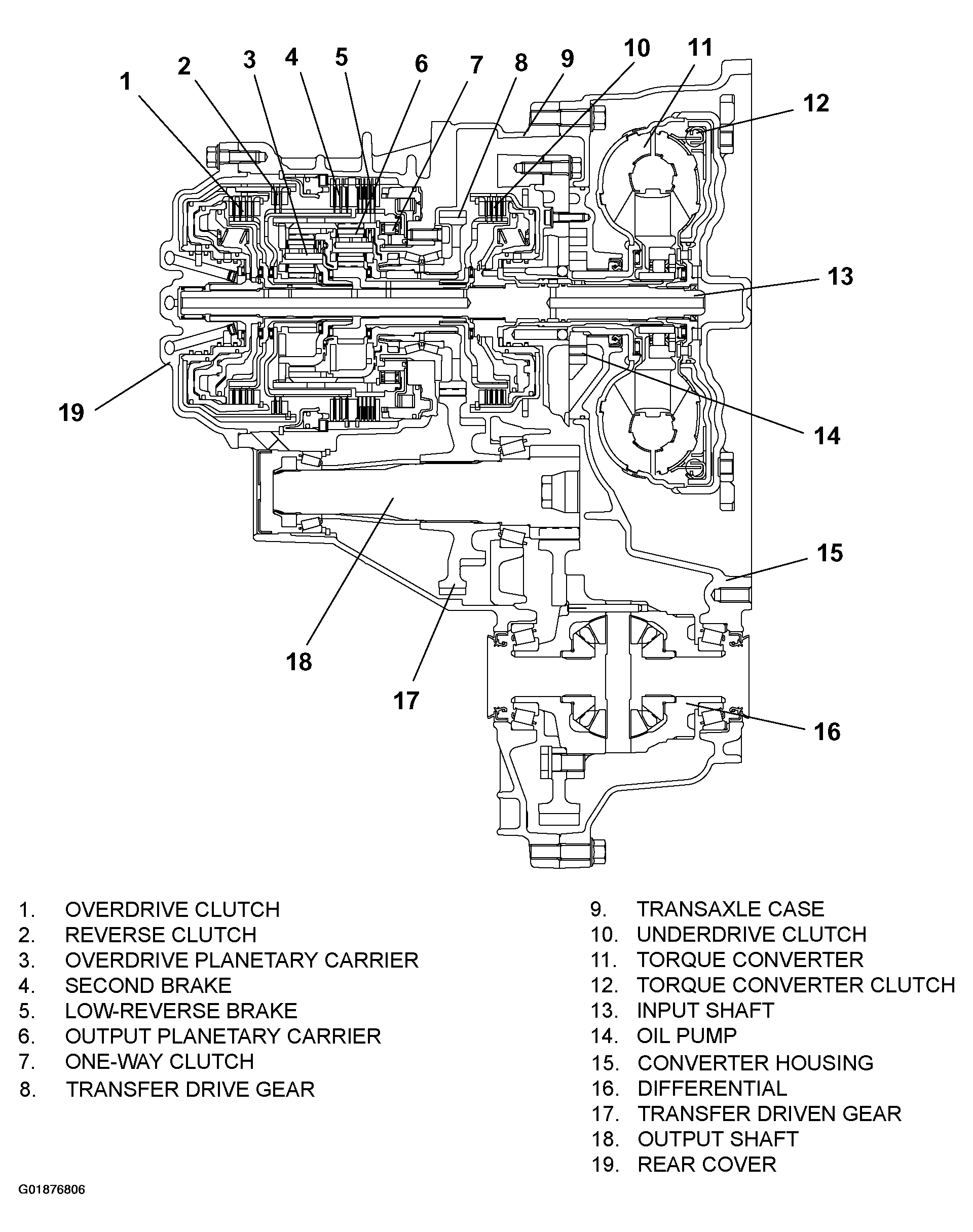

Fig 1: Locating Automatic Transaxle Components (Cross Sectional View)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
