Disassembly And Assembly: Notes

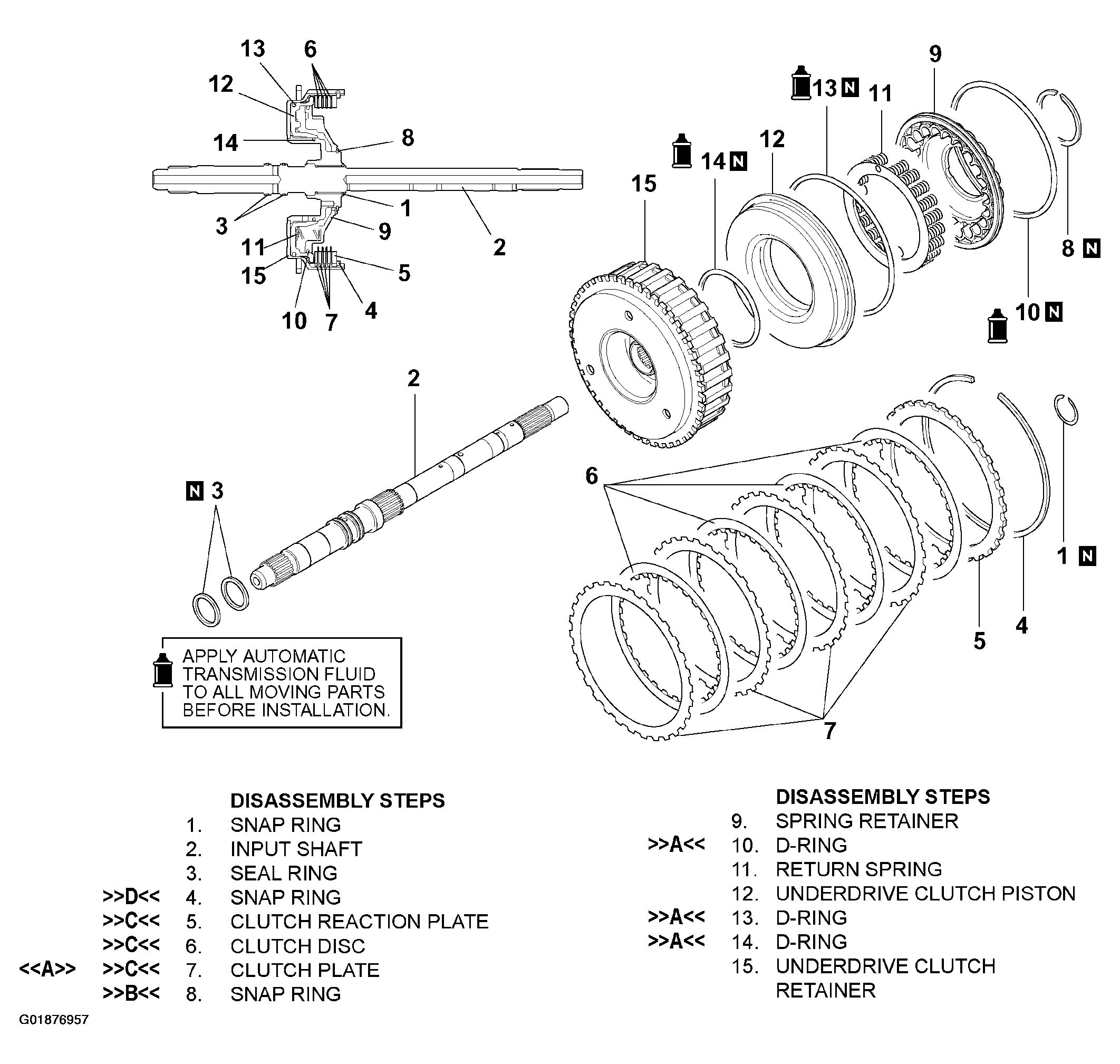

Fig 1: Disassembly & Assembly Of Underdrive Clutch & Input Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991628: Spring Compressor
• MD998907: Spring Compressor
• MD998924: Spring Compressor Retainer
