Ignition Switch Less Continuity Check

Disconnect ignition switch connector without removing the ignition switch and steering lock cylinder. Then check the continuity.

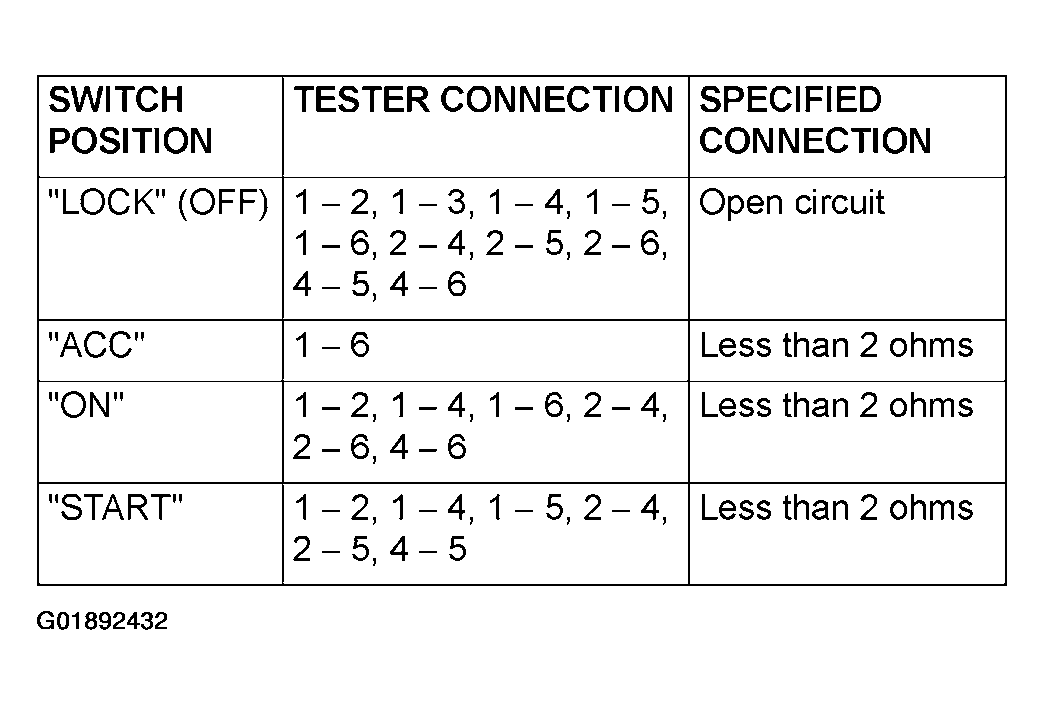

Fig 1: Ignition Switch Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

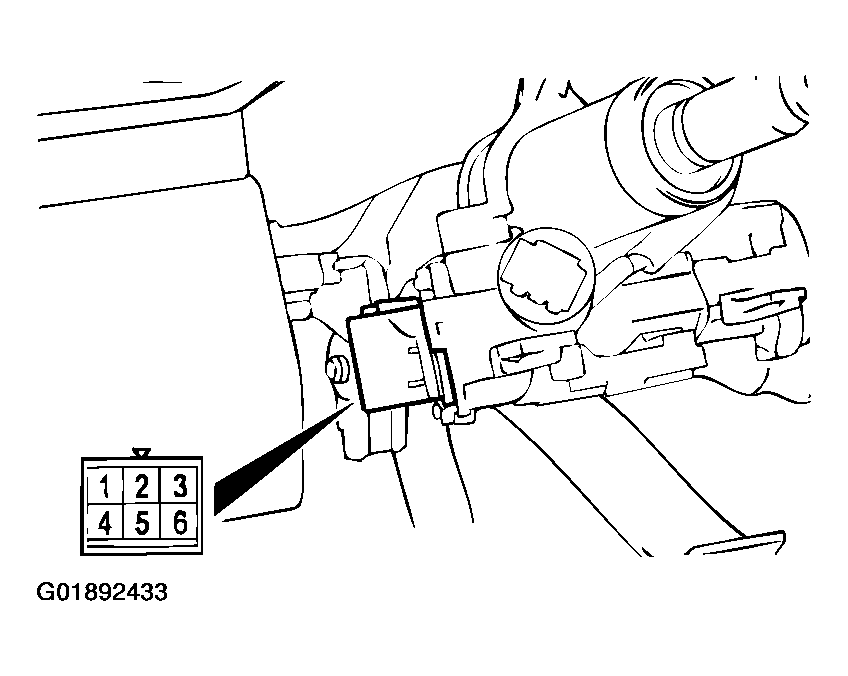

Fig 2: Identifying Ignition Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
