Notes
Disassembly & Assembly: Notes

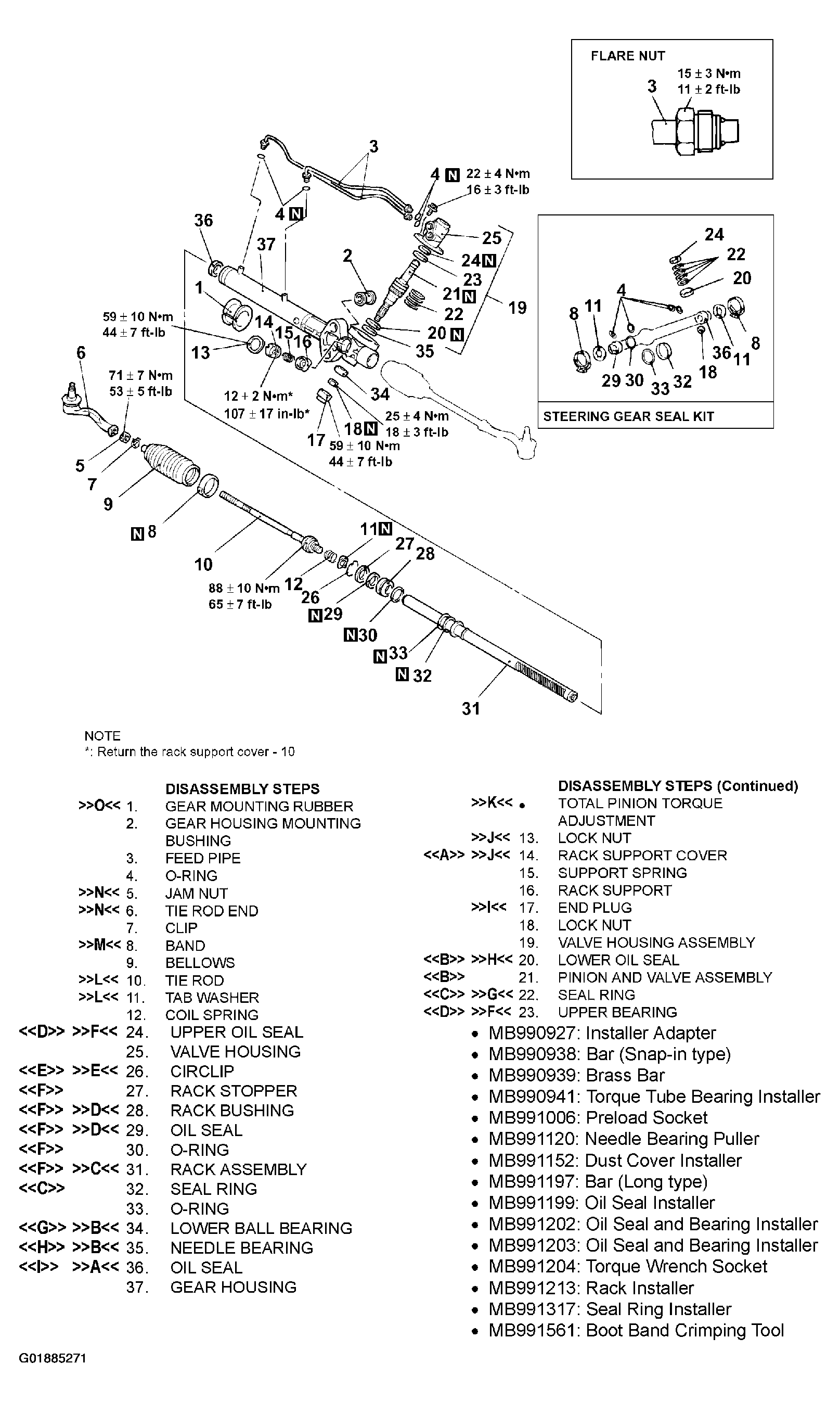

Fig 1: Exploded View & Torque Specifications Of Power Steering Gear Box Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
