DTC 26: Stoplight Switch System
›
Notes
DTC 26: Stoplight Switch System: Notes

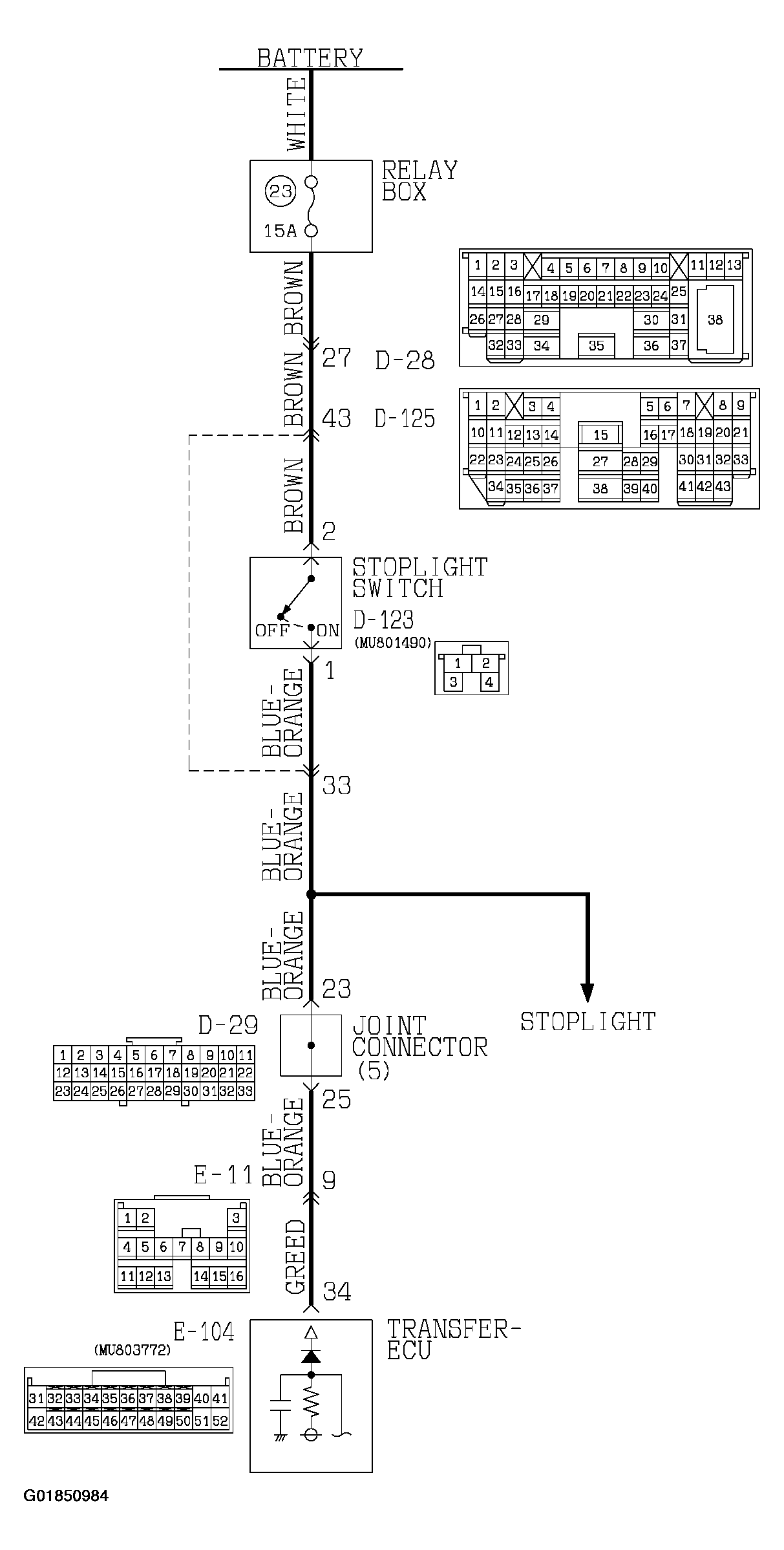

Fig 1: Stoplight Switch System Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

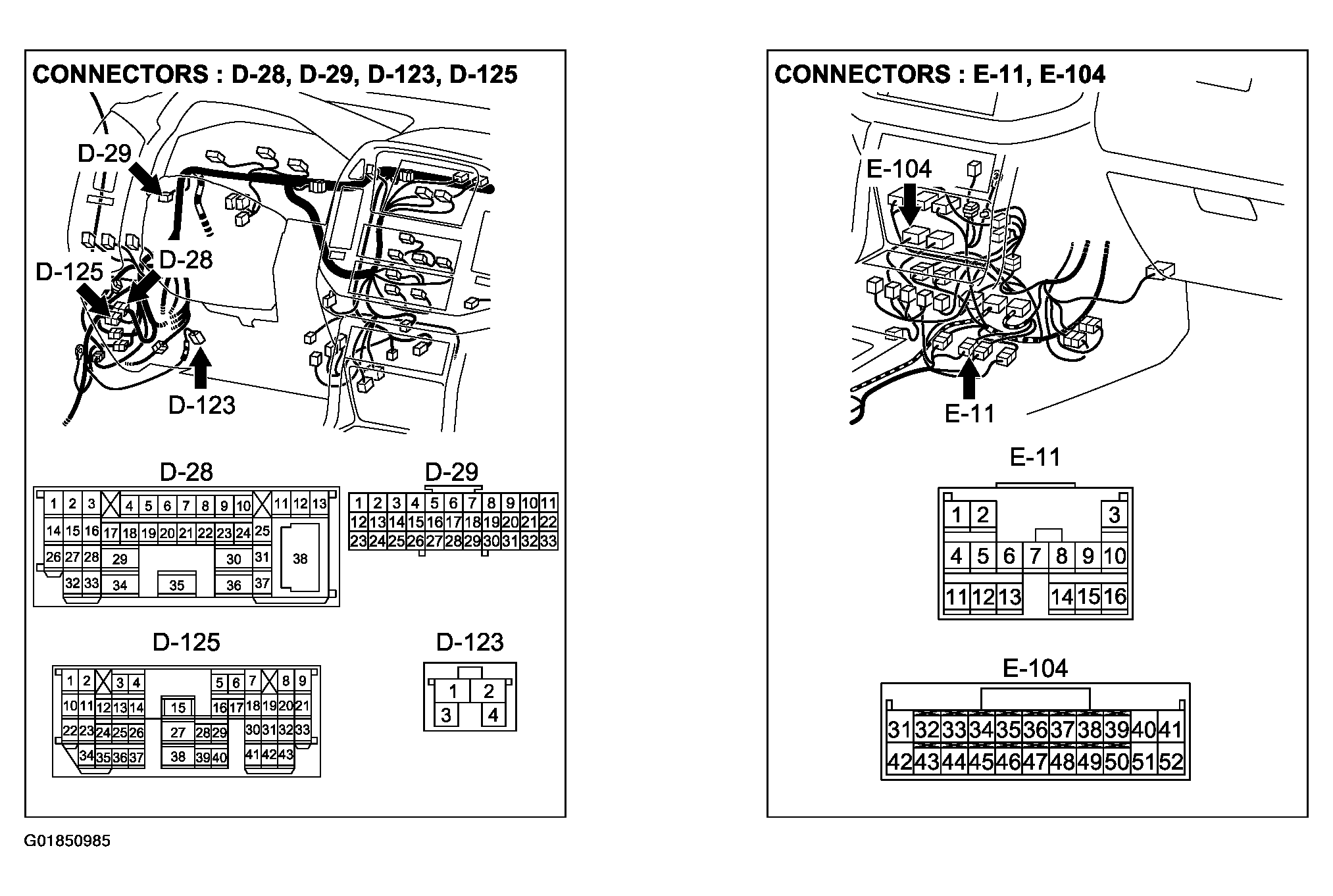

Fig 2: Stoplight Switch System Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
