Code No.56: "N" Range Light System: Notes

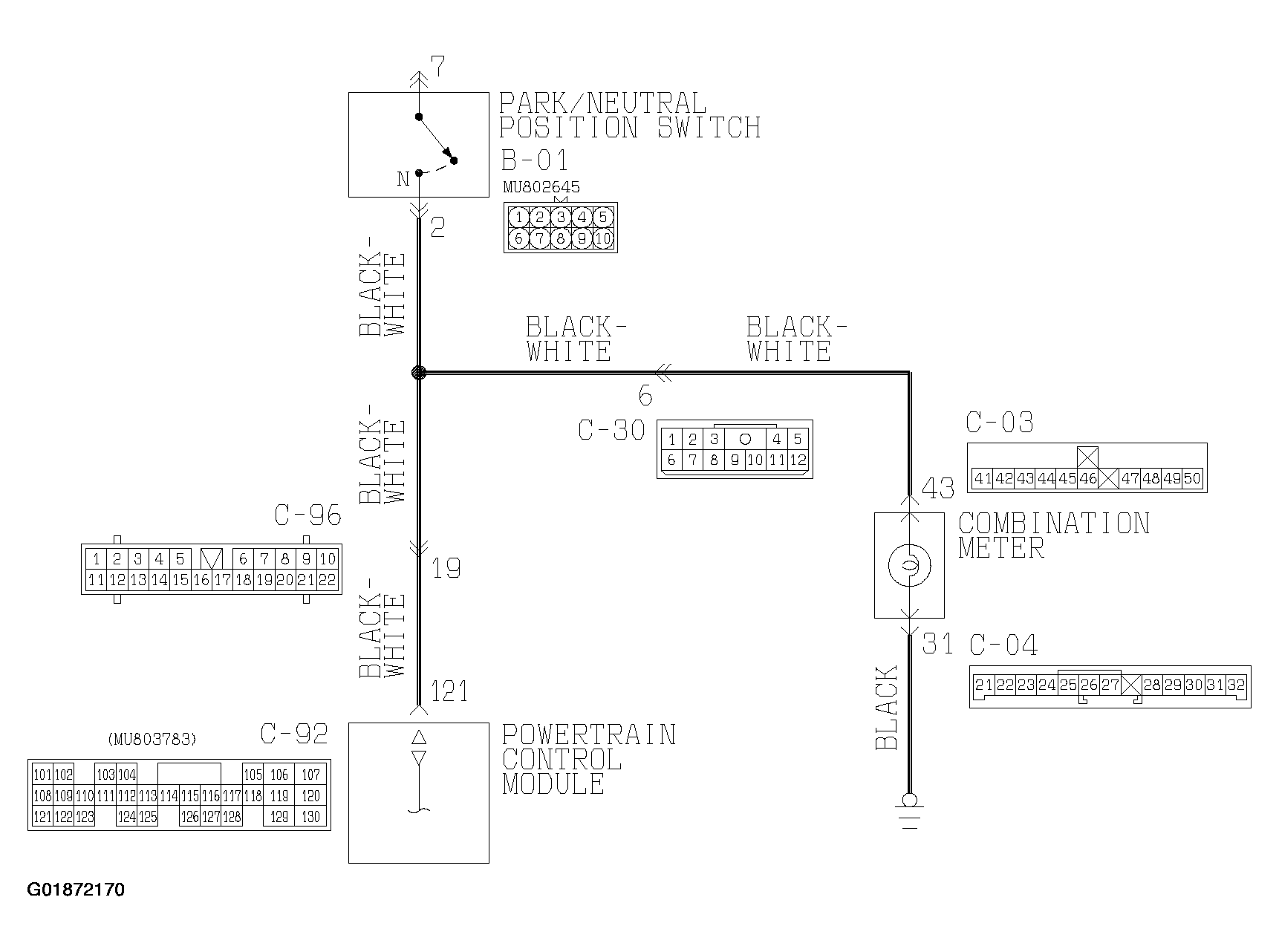

Fig 1: N Range Light System Circuit (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

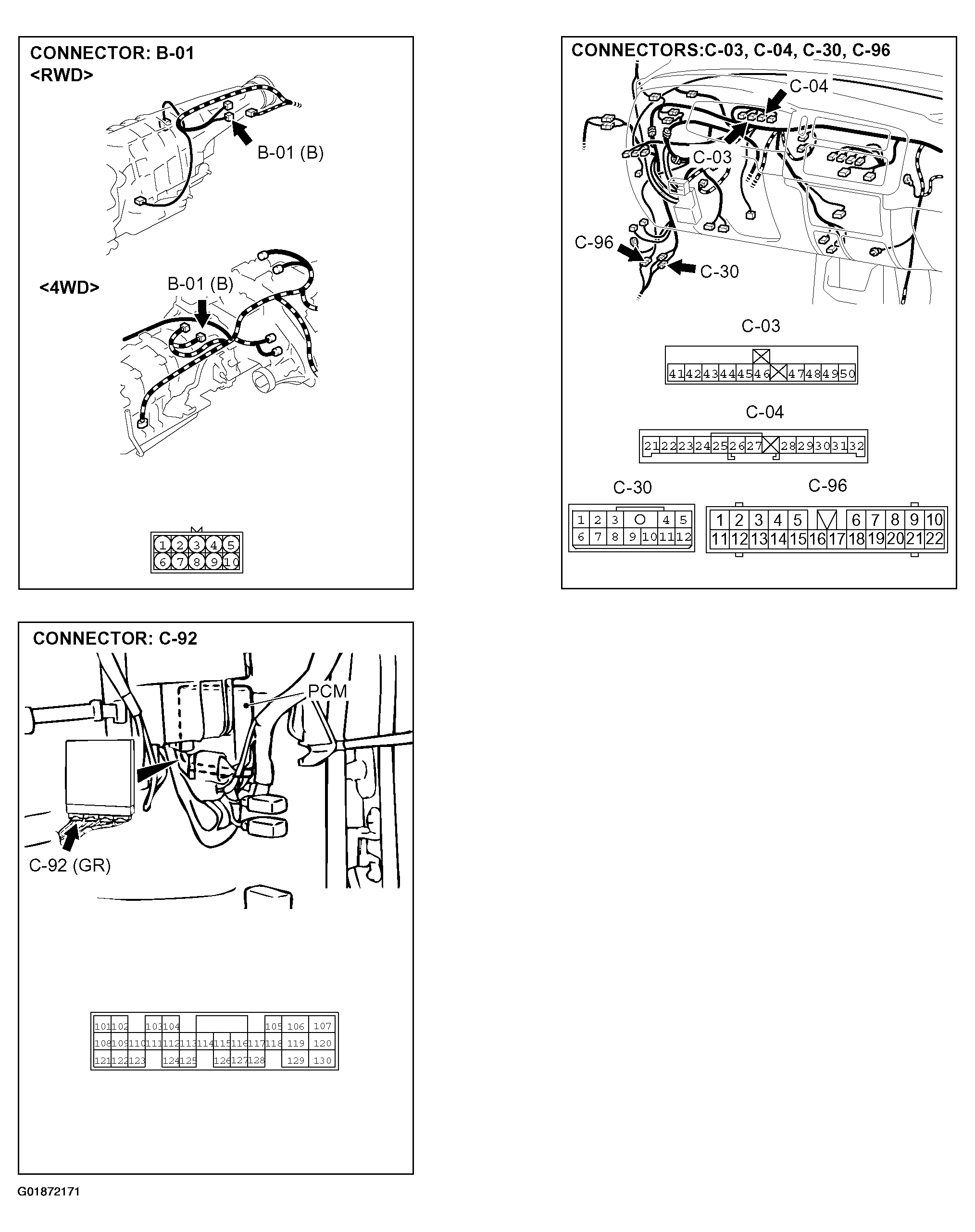

Fig 2: N Range Light System Circuit (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
