DTC 23: Output Shaft Speed Sensor System: Notes

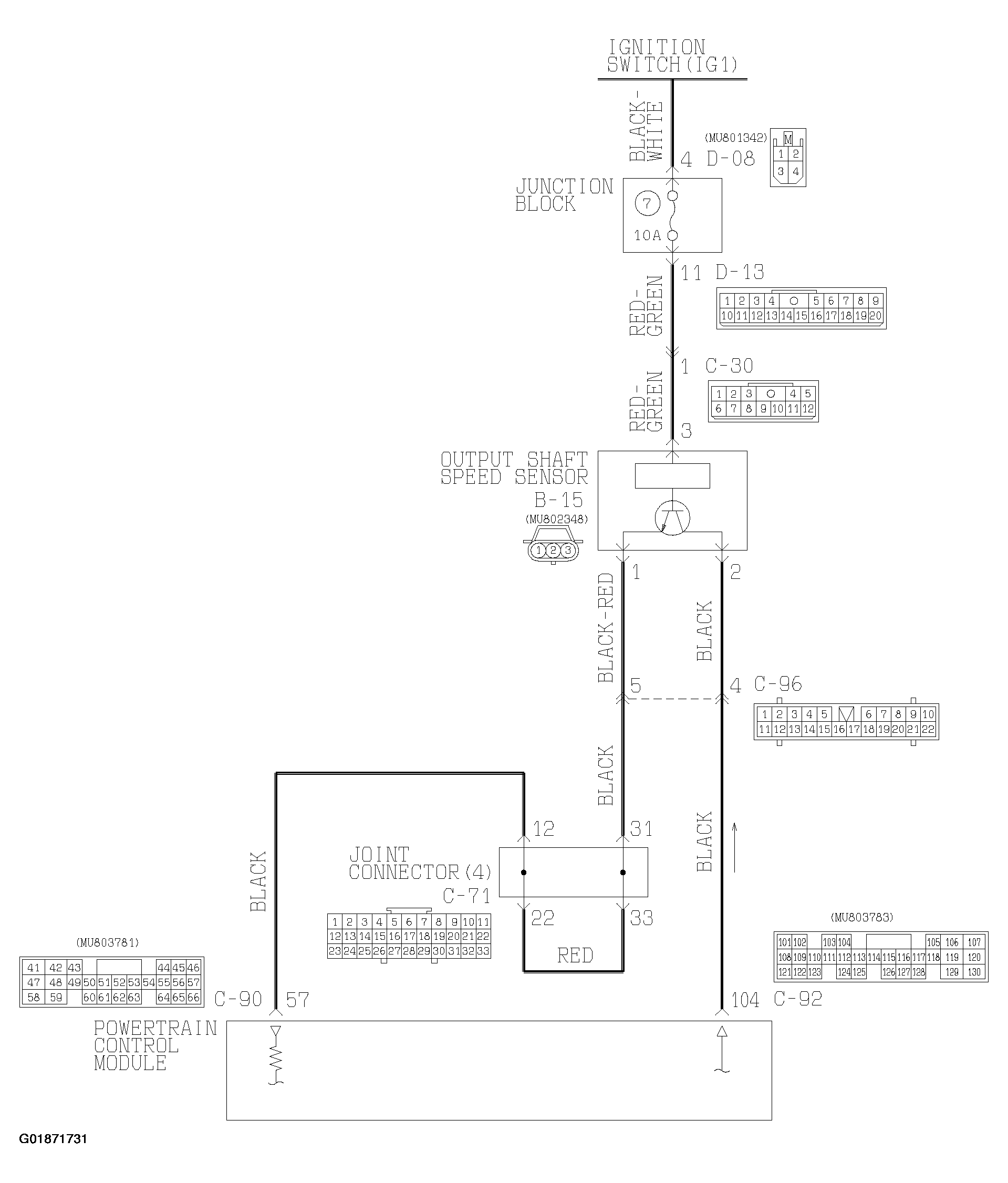

Fig 1: Output Shaft Speed Sensor System Circuit (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Output Shaft Speed Sensor System Circuit (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
