DTC 31: Low-Reverse Solenoid Valve System: Notes

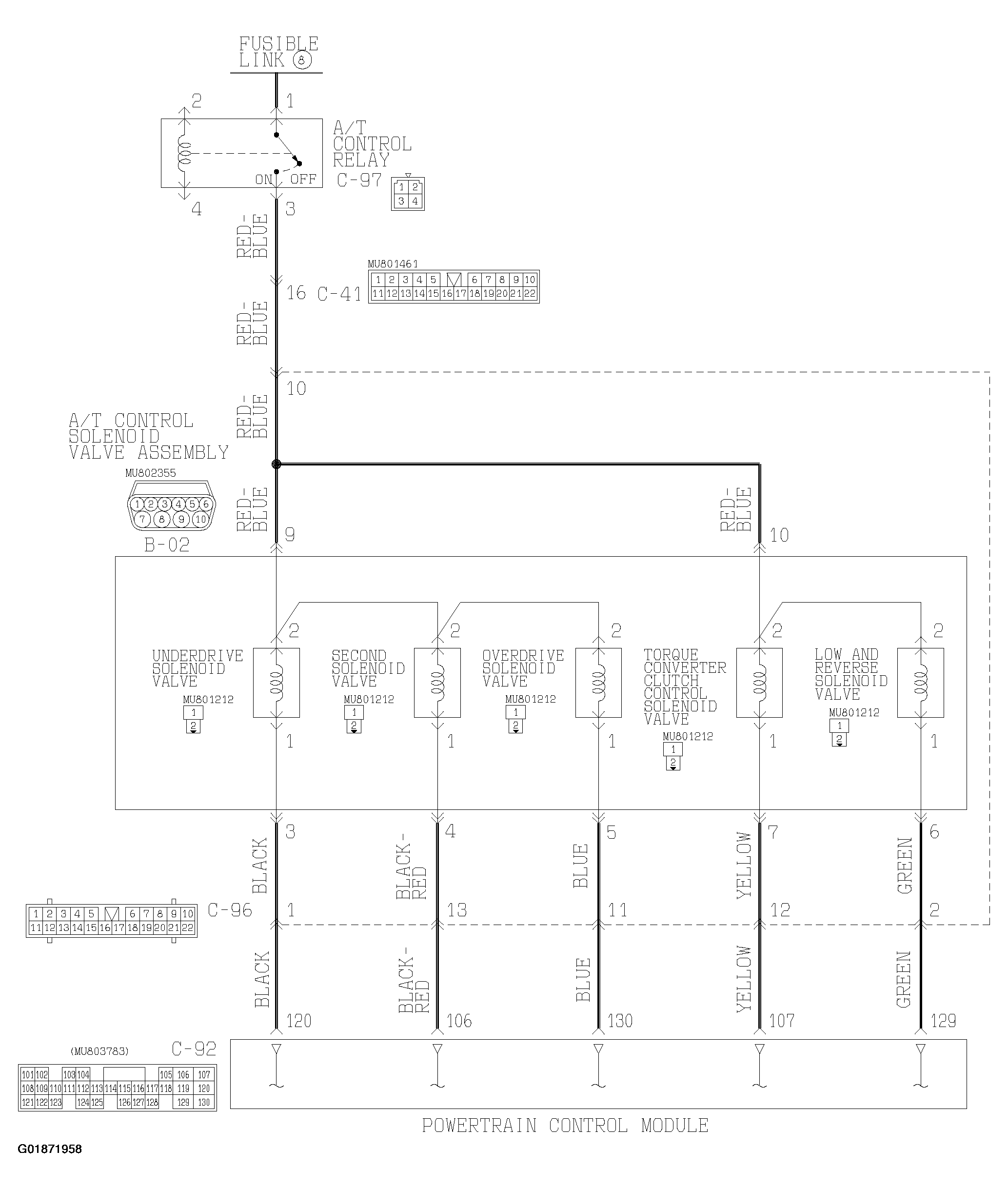

Fig 1: Solenoid Valve System Circuit (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

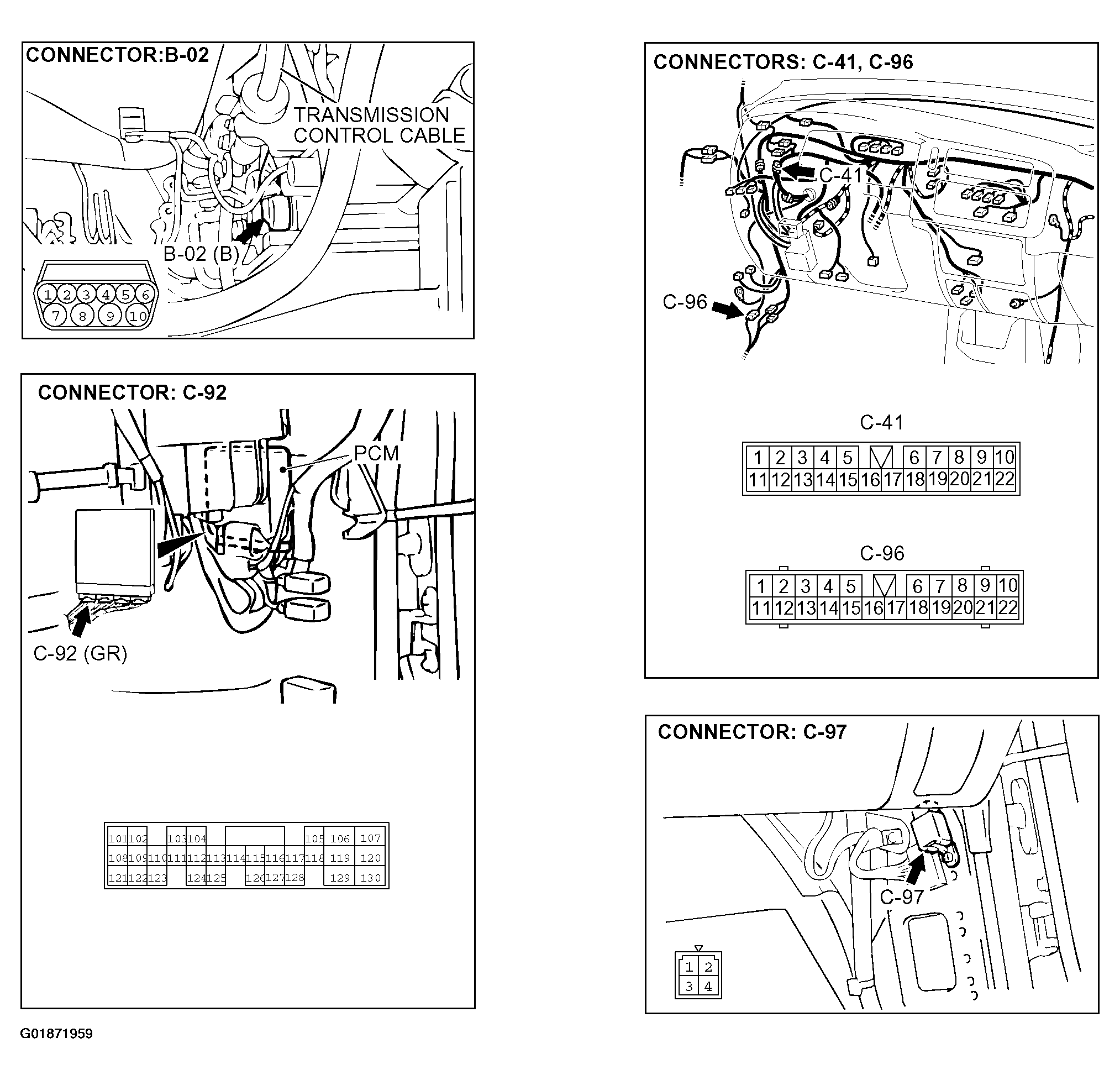

Fig 2: Solenoid Valve System Circuit (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
