Automatic Transmission Control Component Layout

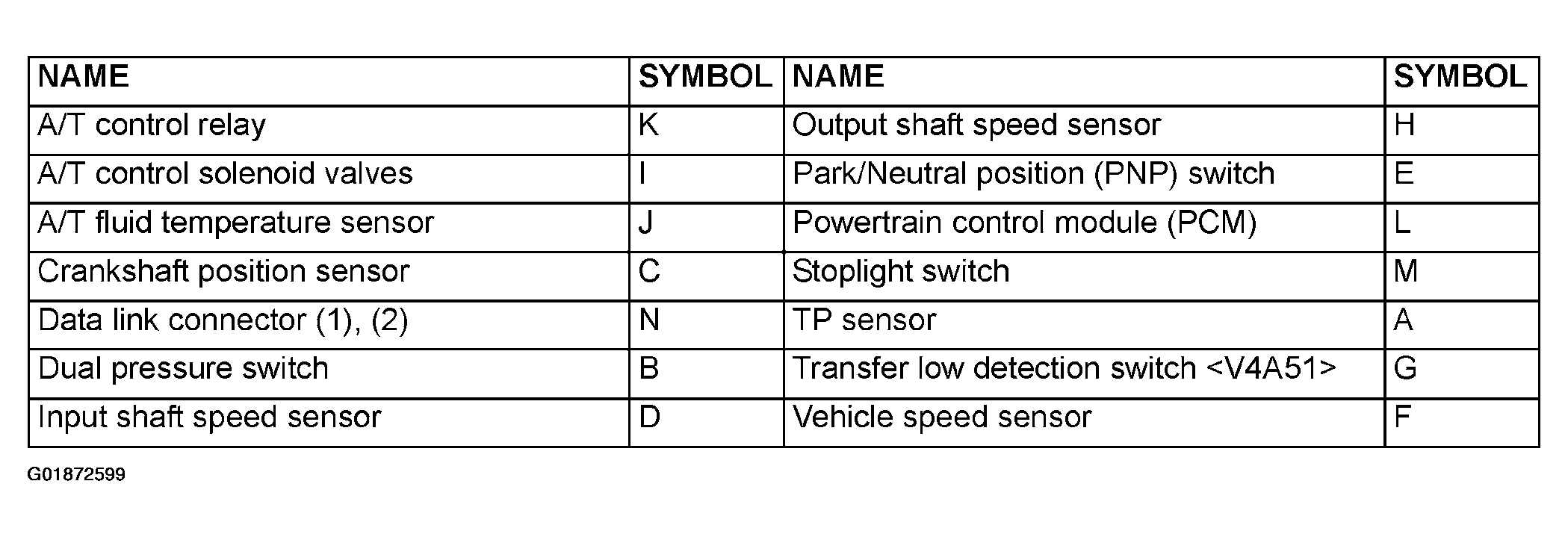

Fig 1: Automatic Transmission Control Component Layout Chart
G01872599Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

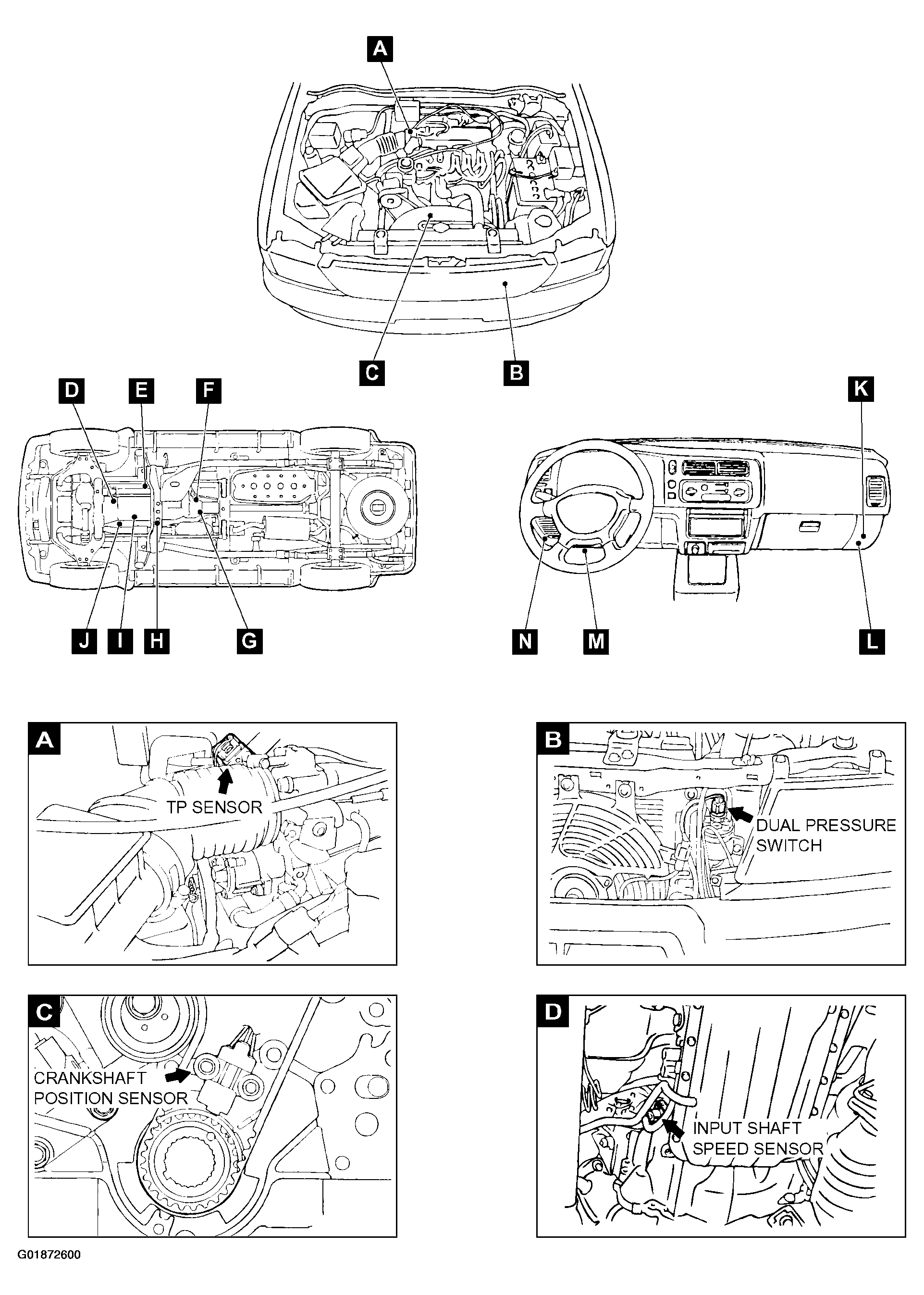

Fig 2: Automatic Transmission Control Component Layout (1 Of 3)
G01872600Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

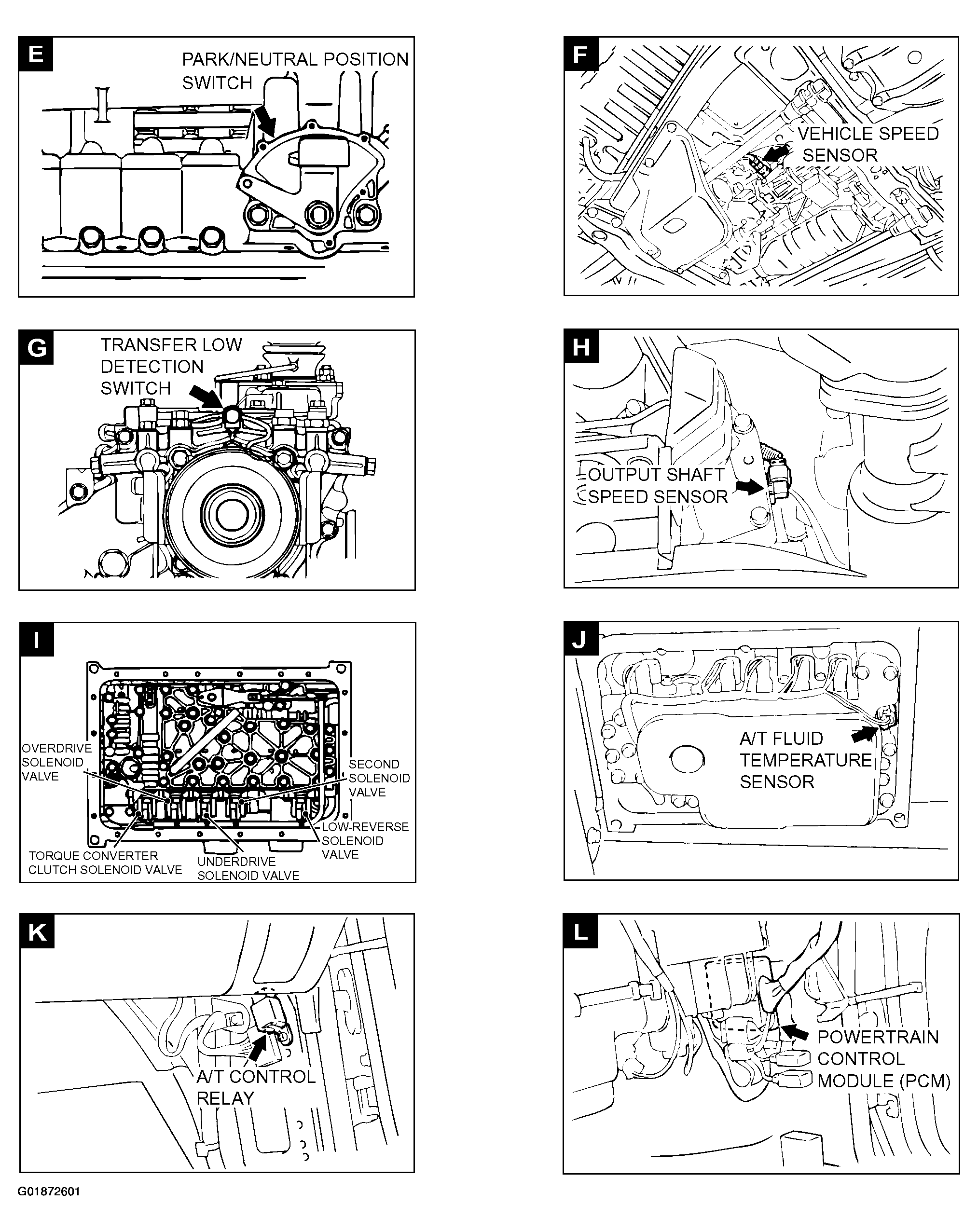

Fig 3: Automatic Transmission Control Component Layout (2 Of 3)
G01872601Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

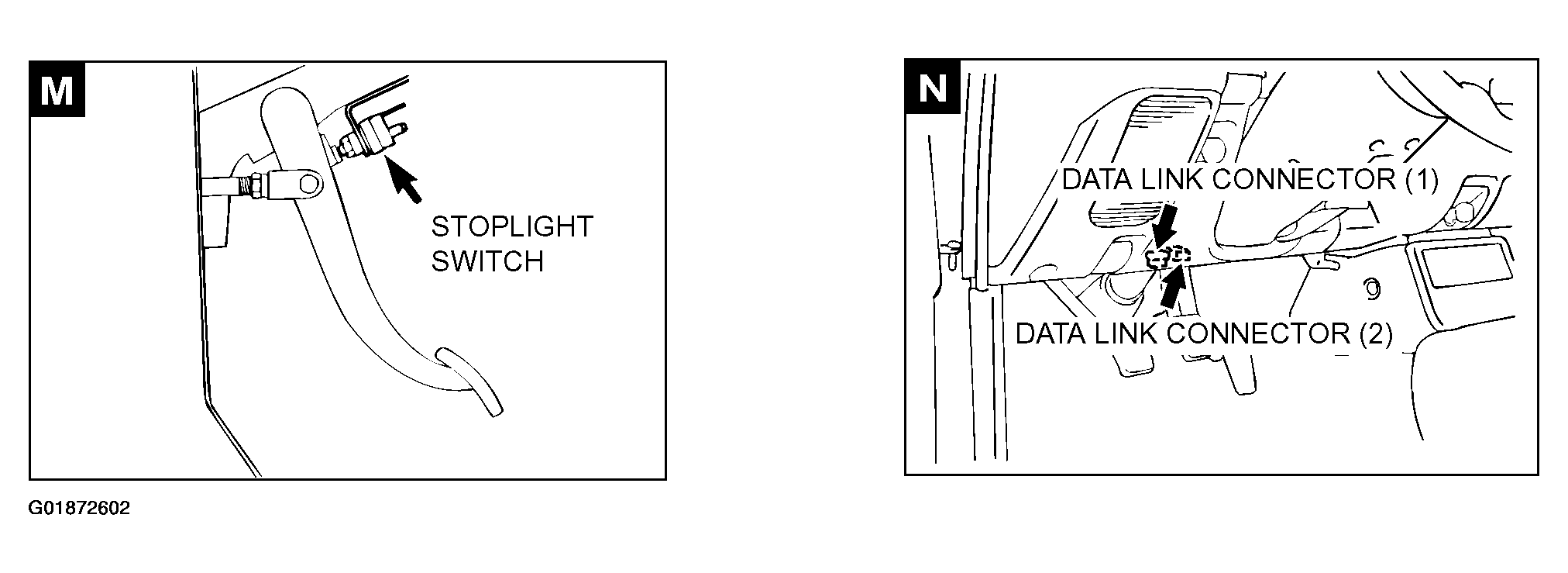

Fig 4: Automatic Transmission Control Component Layout (3 Of 3)
G01872602Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
