Powertrain Control Module Connector D-134 Connector End View
Powertrain Control Module Connector D-134 Connector End View

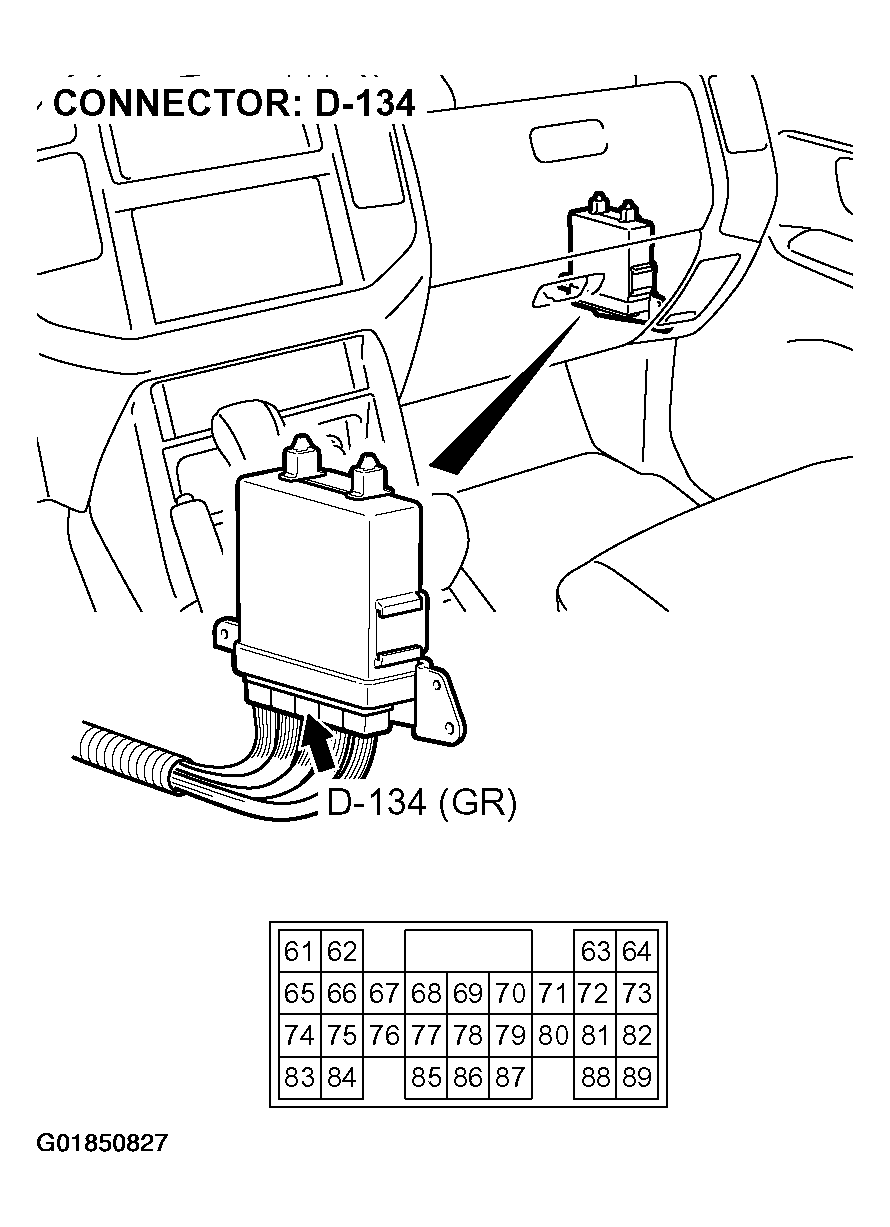

Fig 1: Powertrain Control Module Connector D-134 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
