DTC15 : Auto-cruise Control Switch System
›
Notes
DTC15 : Auto-cruise Control Switch System: Notes

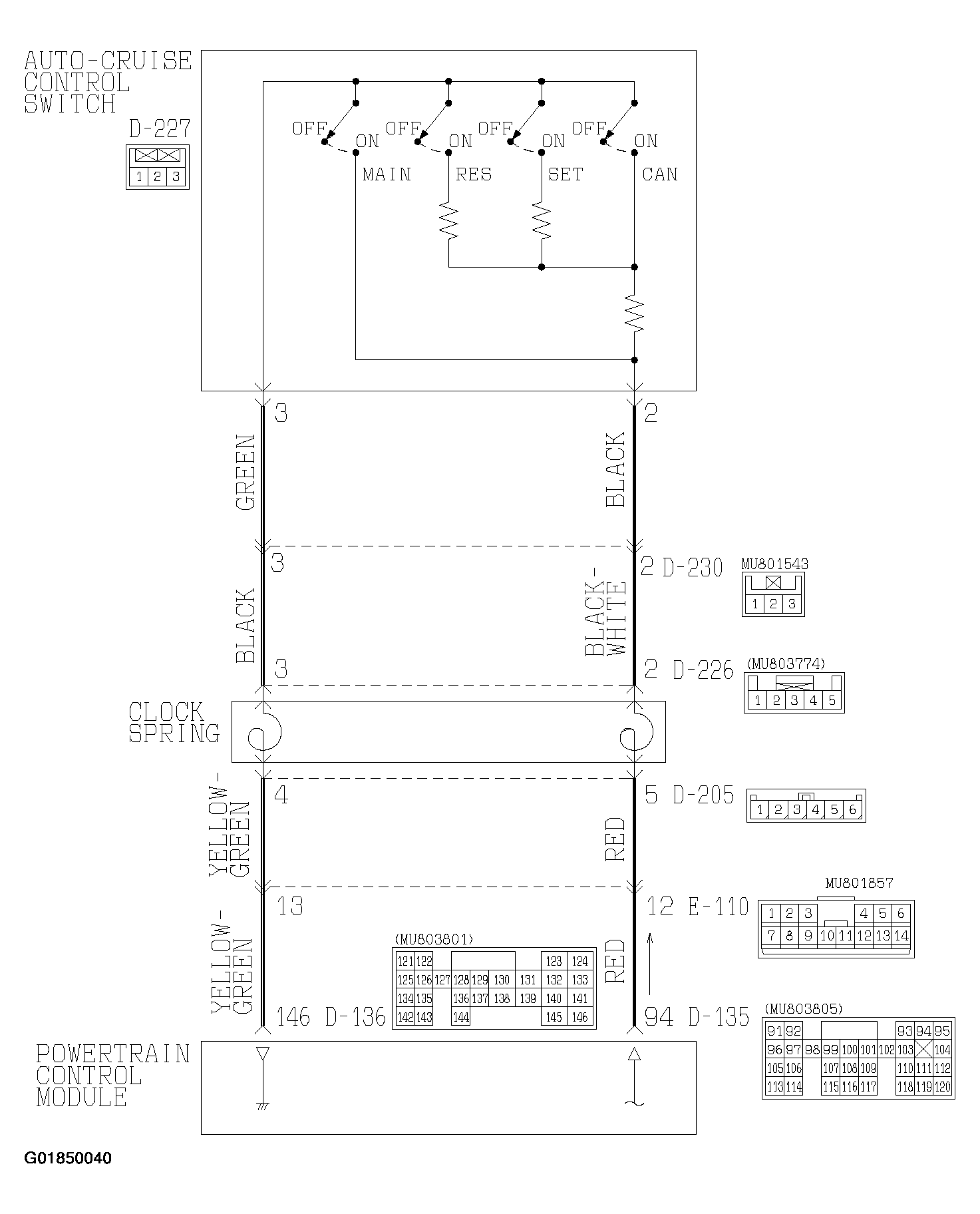

Fig 1: DTC 15 Auto-Cruise Control Switch System Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

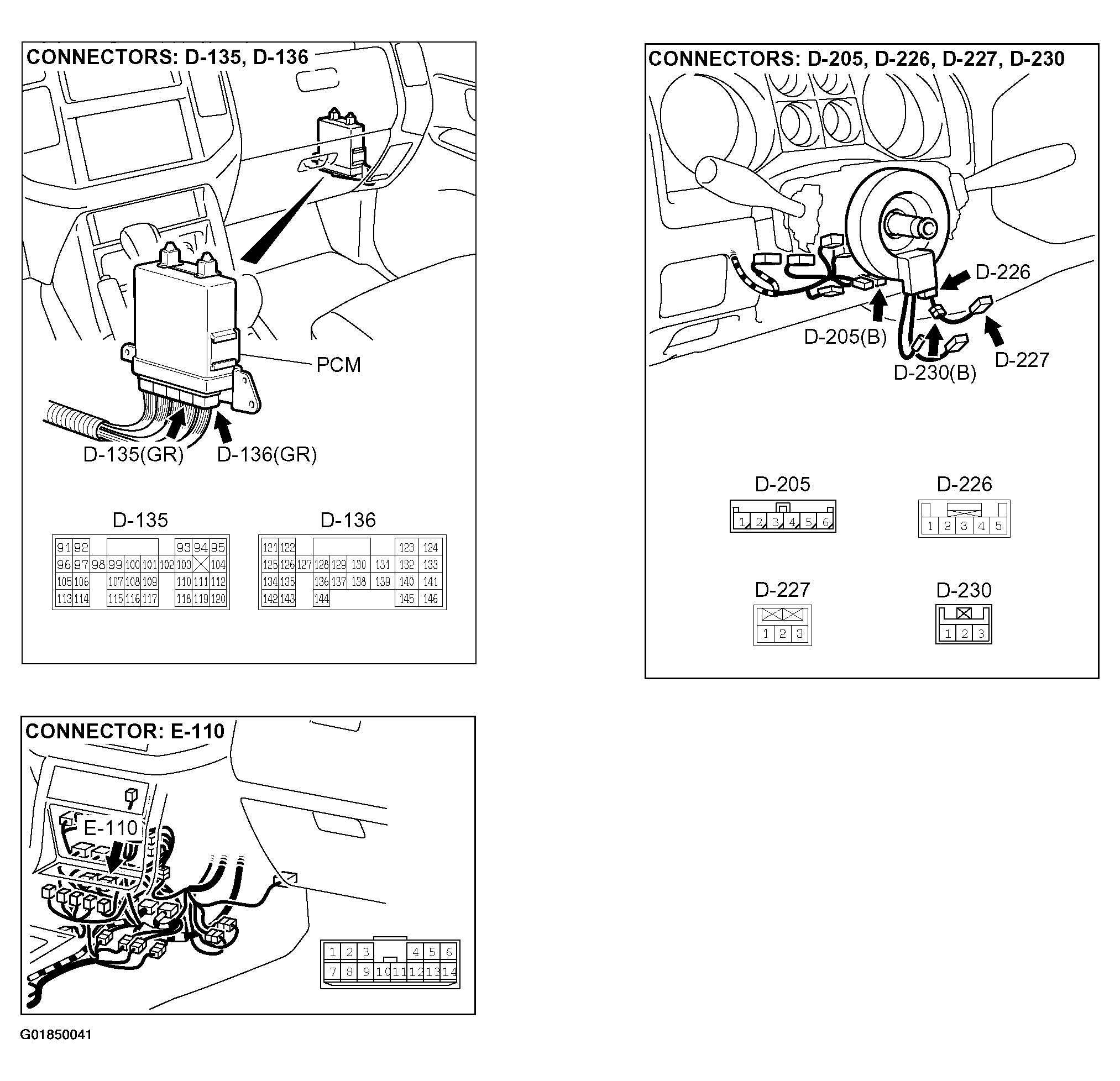

Fig 2: DTC 15 Auto-Cruise Control Switch System Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
