Auto-Cruise Control Switch Check

Measure the resistance between terminal 2 and terminal 3 when each of the "SET," "RESUME," "CANCEL" and MAIN switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

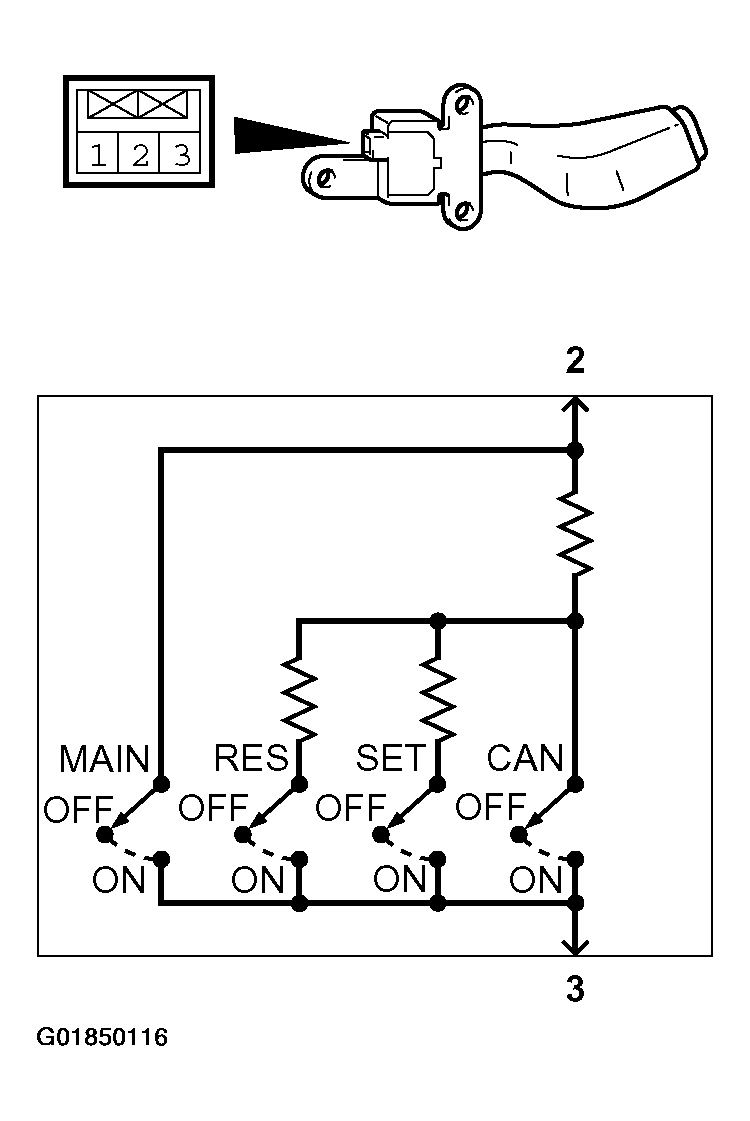

Fig 1: Checking Auto-Cruise Control Switch And Connector Terminal View

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

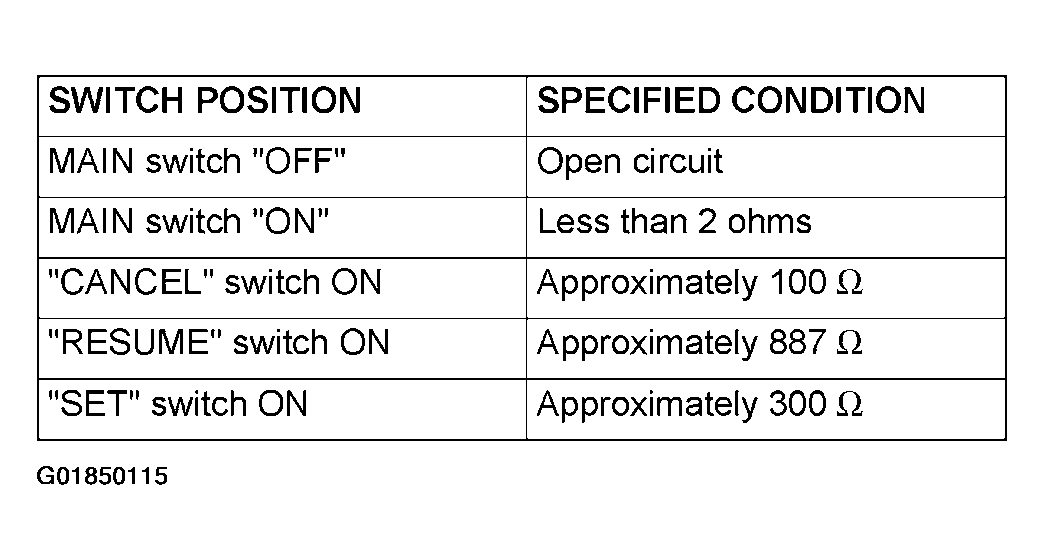

Fig 2: Auto-Cruise Control Switch Check Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
