Actuator Test Reference
›
Actuator Test Specifications
›
Notes
Actuator Test Specifications: Notes

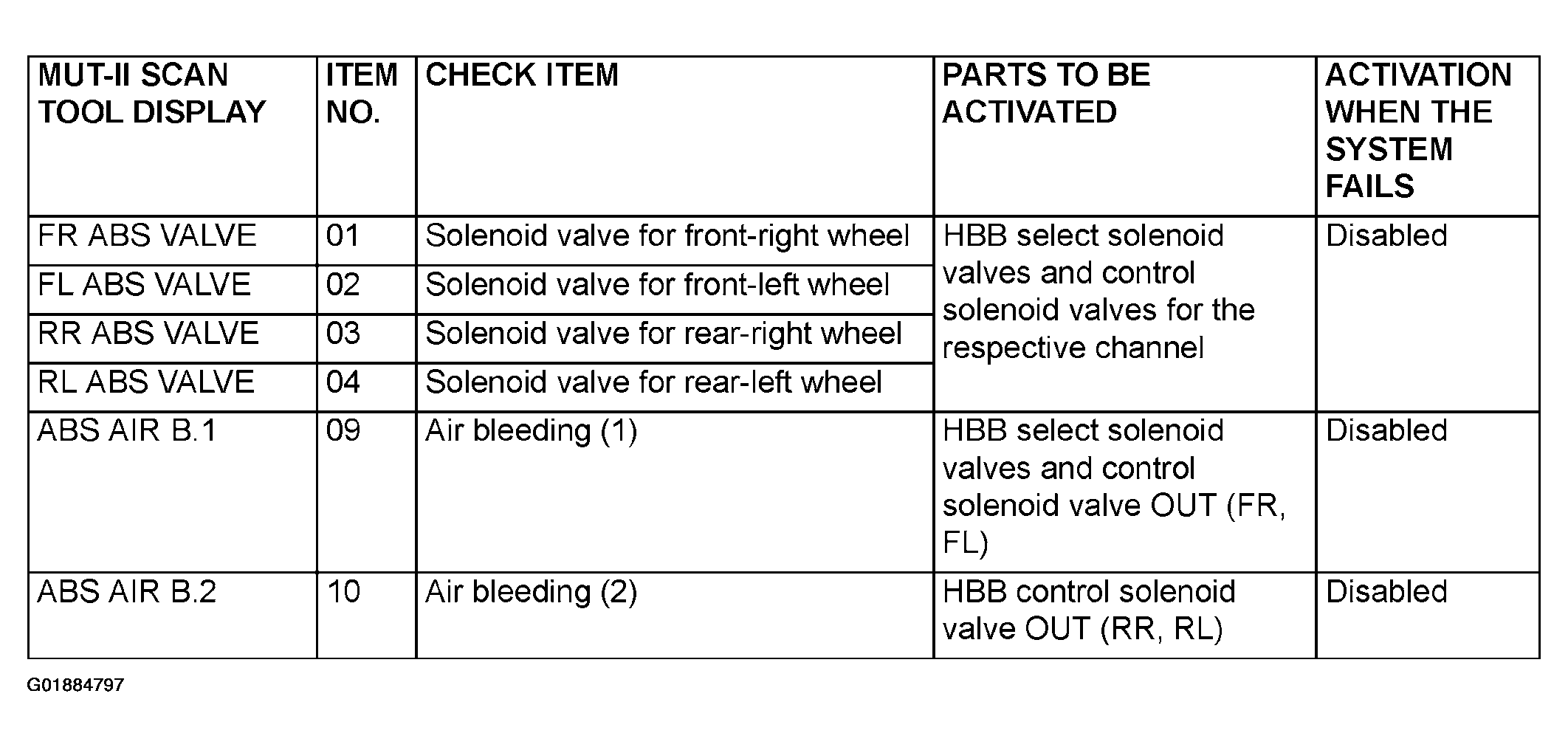

Fig 1: Actuator Test Specifications Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
