Solenoid Valve Check

Measure the resistance between the following solenoid valve terminals.

• Control solenoid valve IN (FR): Between terminals (19) - (34)
• Control solenoid valve OUT (FR): Between terminals (20) - (34)
• Control solenoid valve IN (FL): Between terminals (21) - (34)
• Control solenoid valve OUT (FL): Between terminals (22) - (34)
• Control solenoid valve IN (RR): Between terminals (15) - (34)
• Control solenoid valve OUT (RR): Between terminals (16) - (34)
• Control solenoid valve IN (RL): Between terminals (13) - (34)
• Control solenoid valve OUT (RL): Between terminals (14) - (34)
• Select solenoid valve (SA1): Between terminals (18)-(34)
• Select solenoid valve (SA2): Between terminals (17)-(34)
• Select solenoid valve (SA3): Between terminals (12)-(34)
• Select solenoid valve (STR): Between terminals (11)-(34)

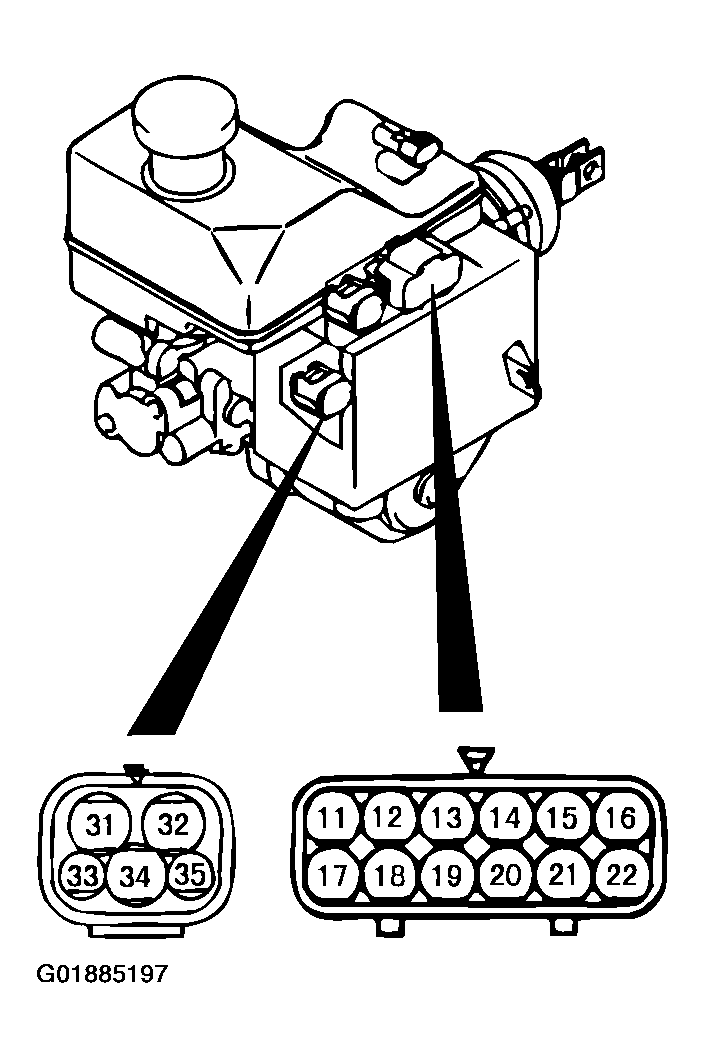

  Fig 1: Measuring Resistance Between Solenoid Valve Terminals

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  Standard value:

  1. Control solenoid valve IN: 4.75 - 5.25 Ω
  2. Control solenoid valve OUT: 2.0 - 2.4 Ω
  3. Select solenoid valve: 3.5 - 3.9 Ω
