Removal & Installation

For generator removal and installation procedures, see Fig 1 .

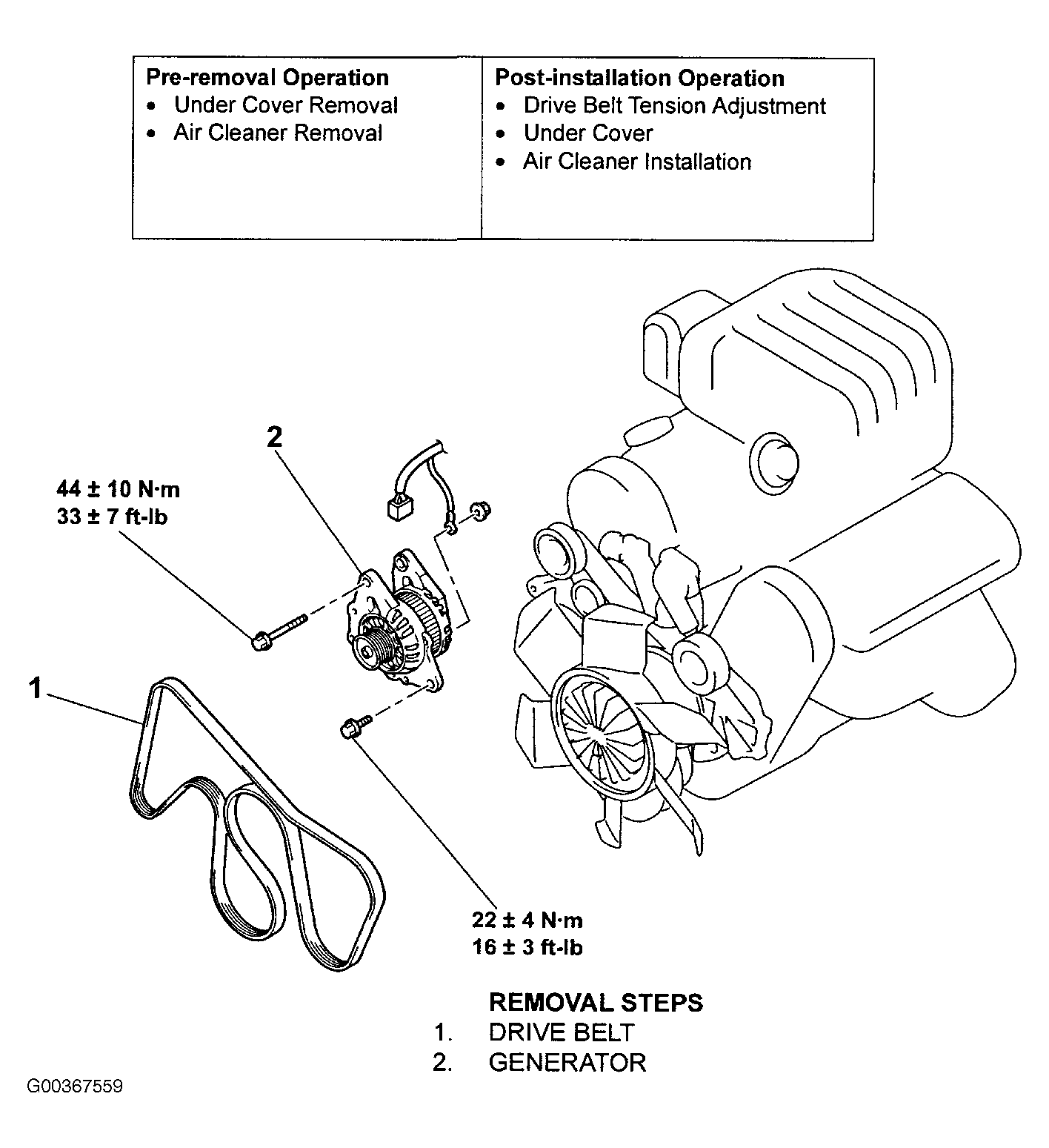

Fig 1: Removing & Installing Generator
G00367559Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
