Starter Relay Check

NOTE: For starter relay testing, see Fig 1 .

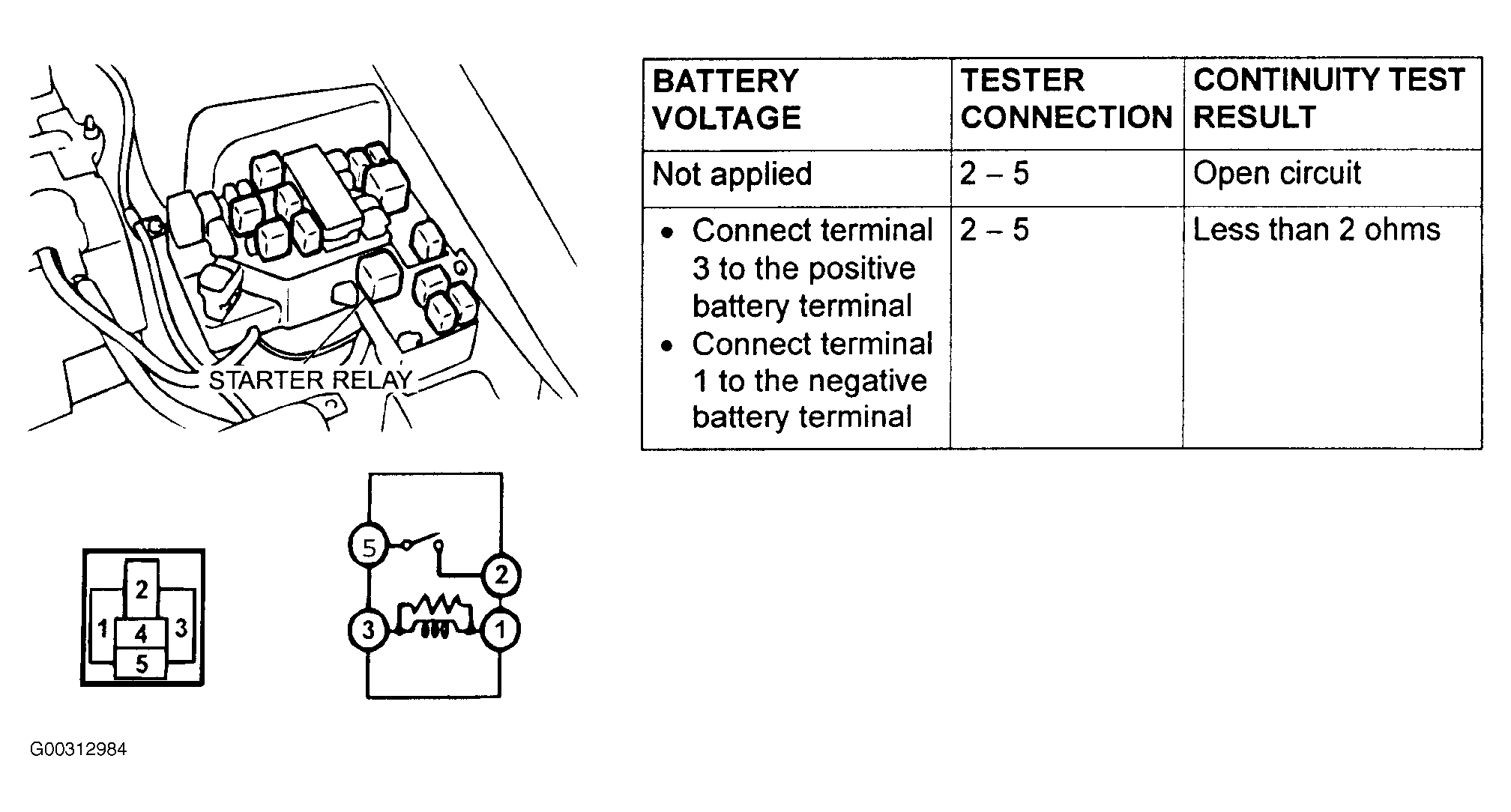

Fig 1: Testing Starter Relay
G00312984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
