Component Locations

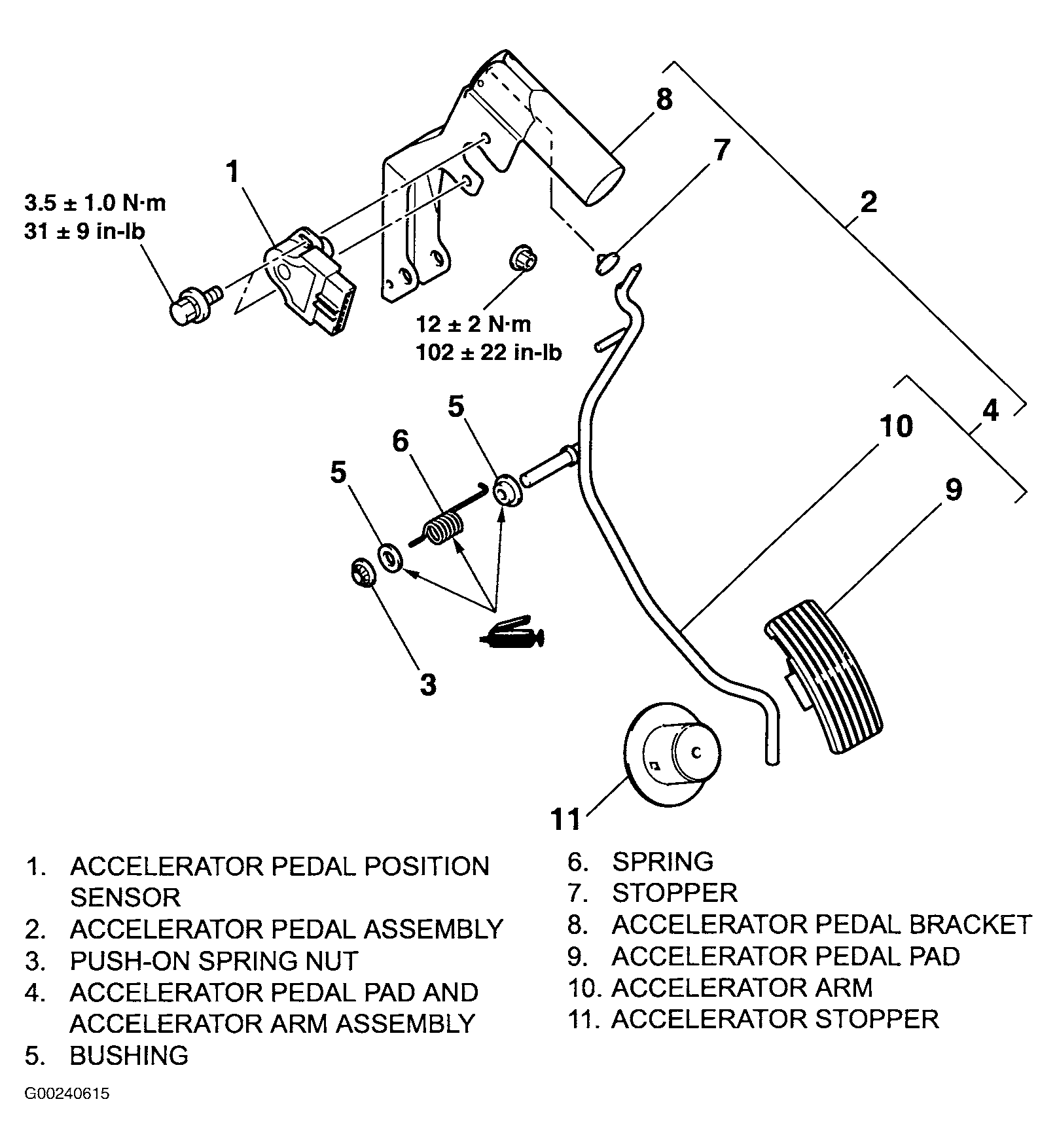

Fig 1: Locating Accelerator Pedal Position Sensor
G00240615Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

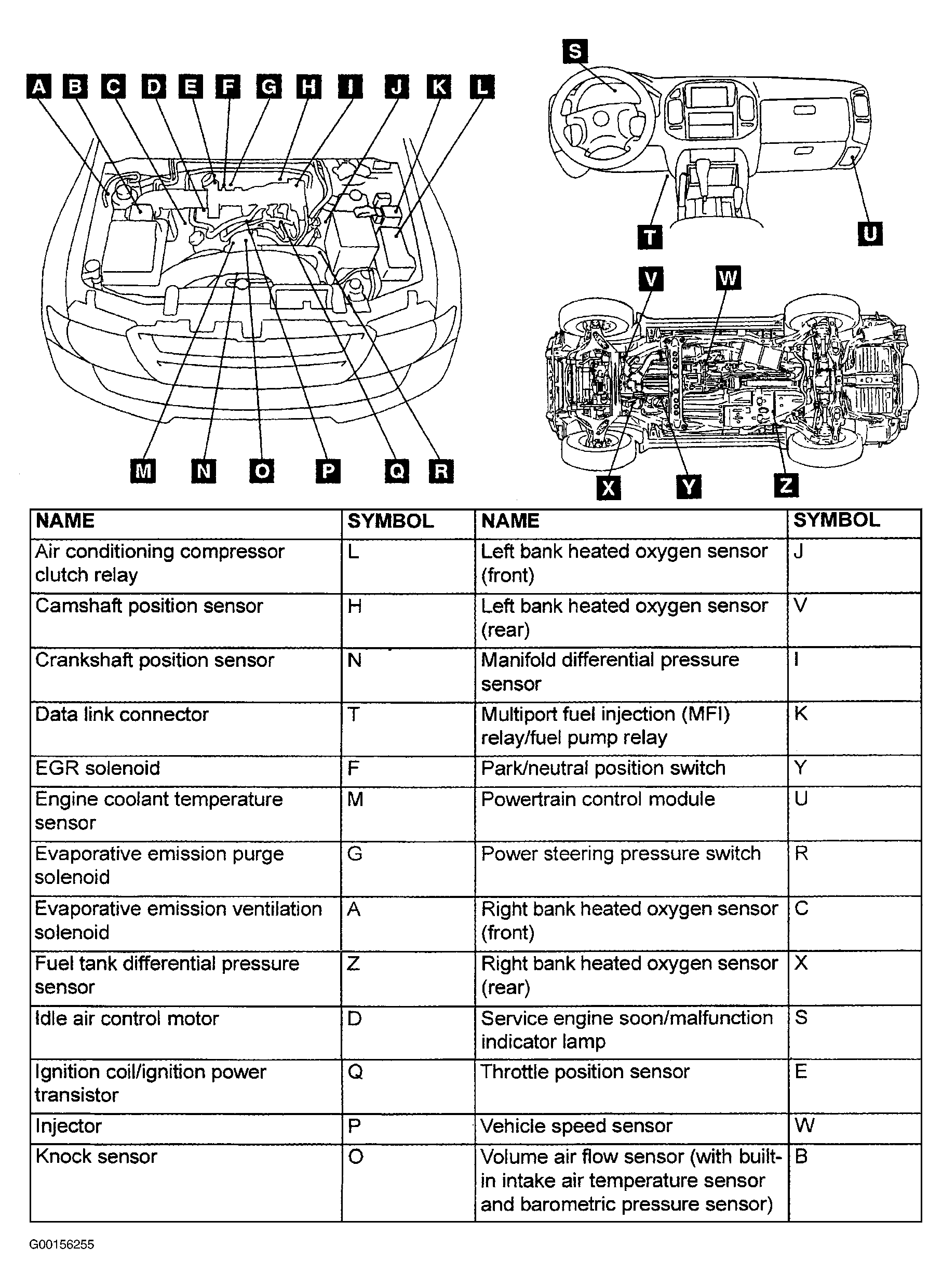

Fig 2: Locating Engine Performance-Related Components
G00156255Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
