Specifications
›
Service Specifications
Service Specifications

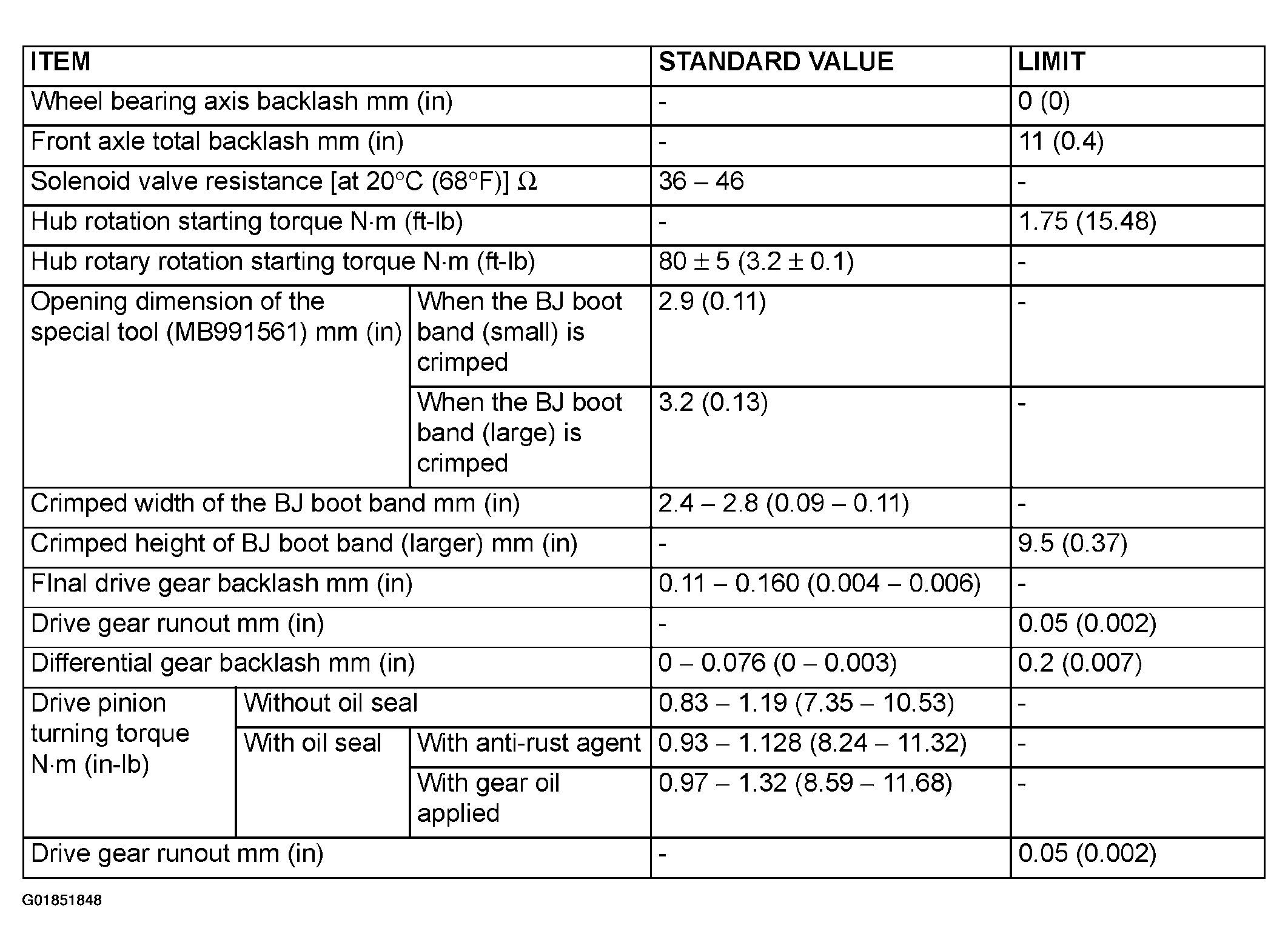

Fig 1: Front Axle Service Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
