Disassembly And Assembly

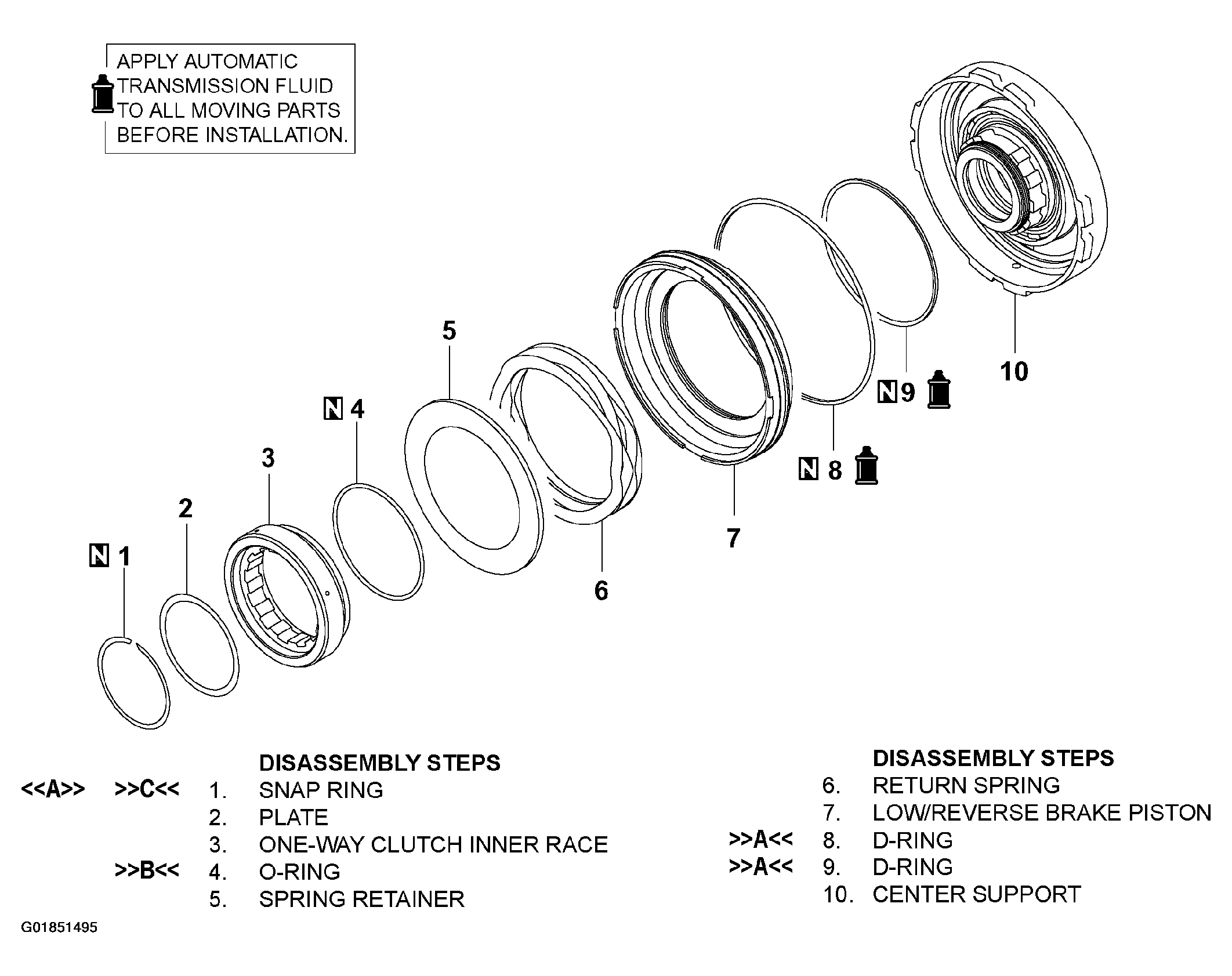

Fig 1: Disassembly & Assembly Of Center Support

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991630: Spring Compressor
• MD998924: Spring Compressor Retainer
