Valve Body Spring Identification

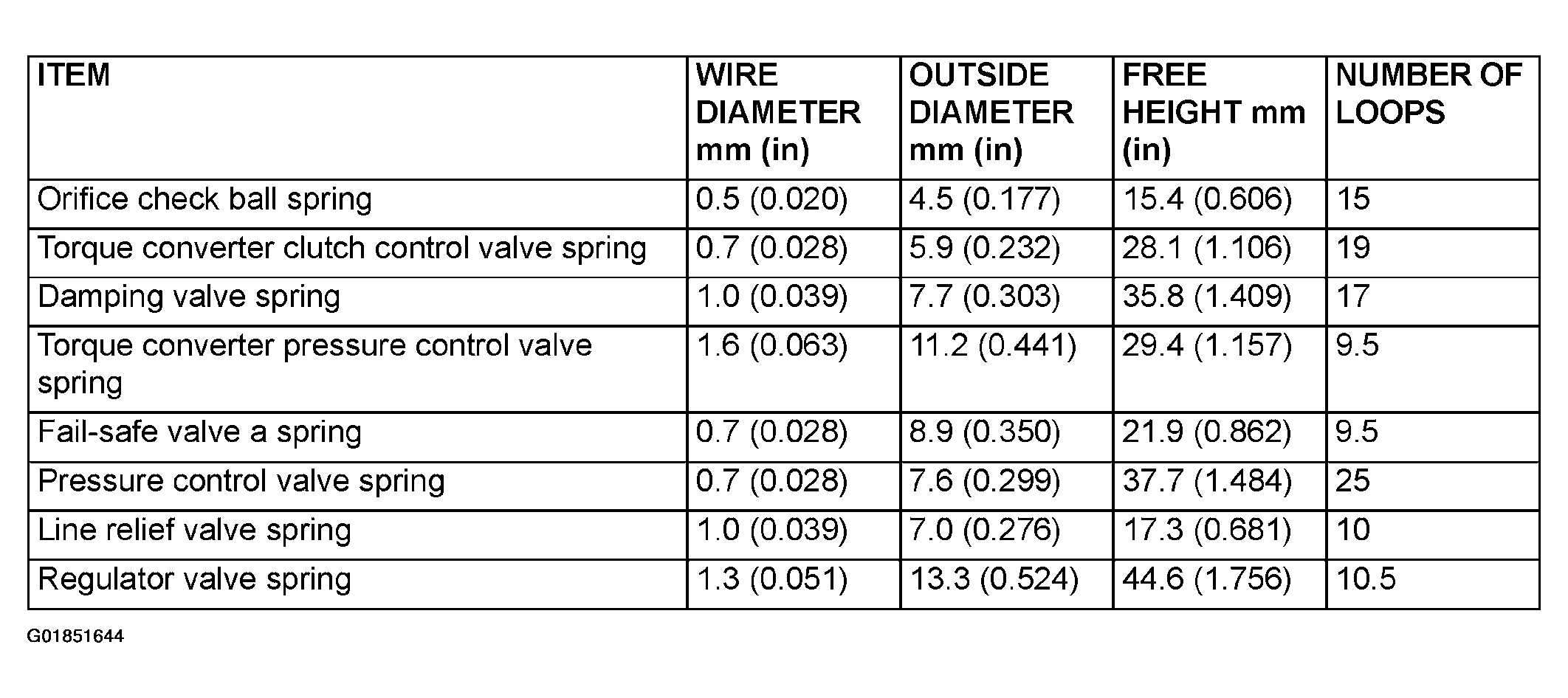

Fig 1: Valve Body Spring Identification Chart
G01851644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
