Disassembly And Assembly

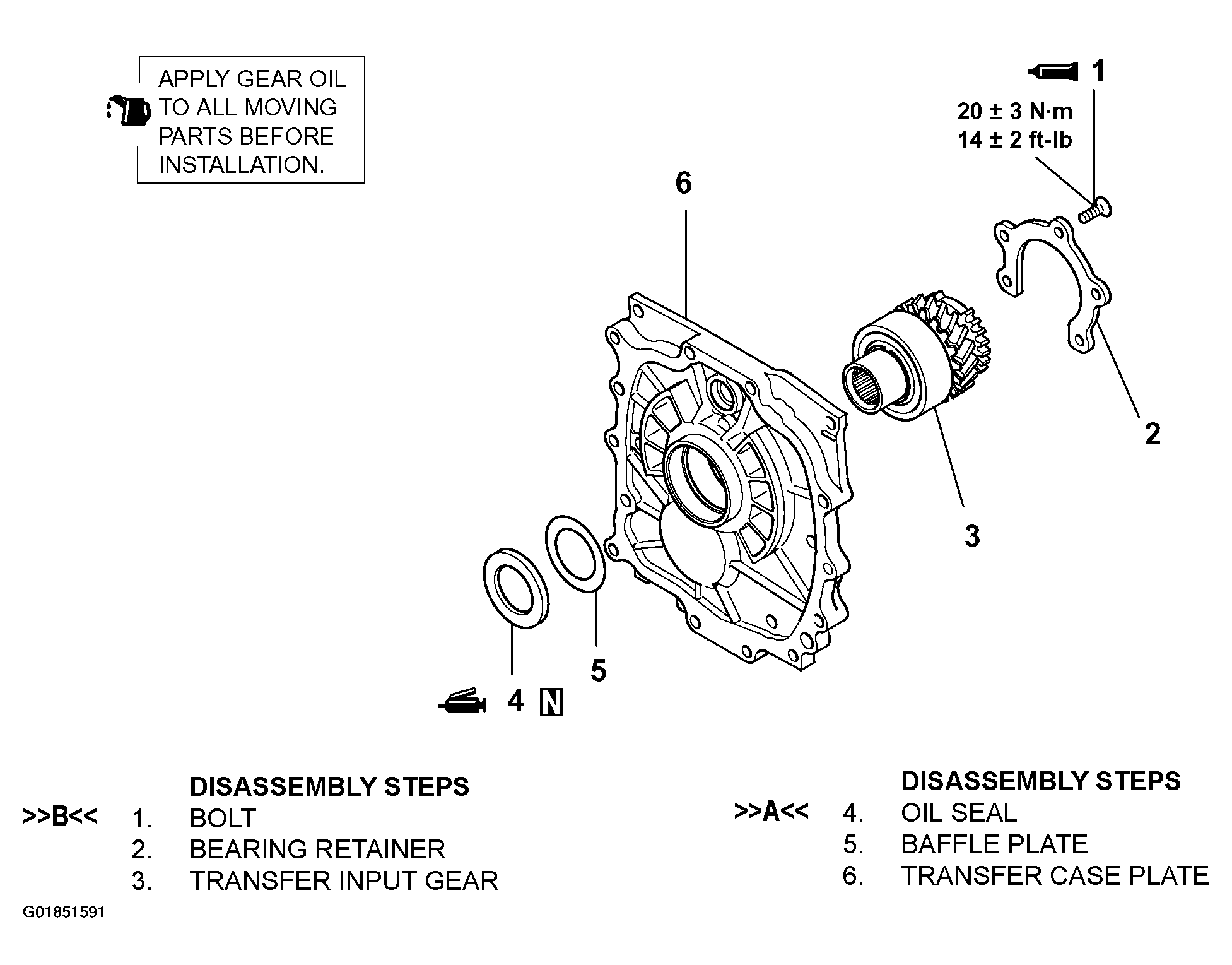

Fig 1: Disassembly & Assembly Of Transfer Case Plate

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990938: Handle
• MB990936: Installer Adapter
