Disassembly And Assembly < Part Time 4WD>

Fig 1: Disassembly & Assembly Of Transfer (Part Time 4WD - 1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Disassembly & Assembly Of Transfer (Part Time 4WD - 2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

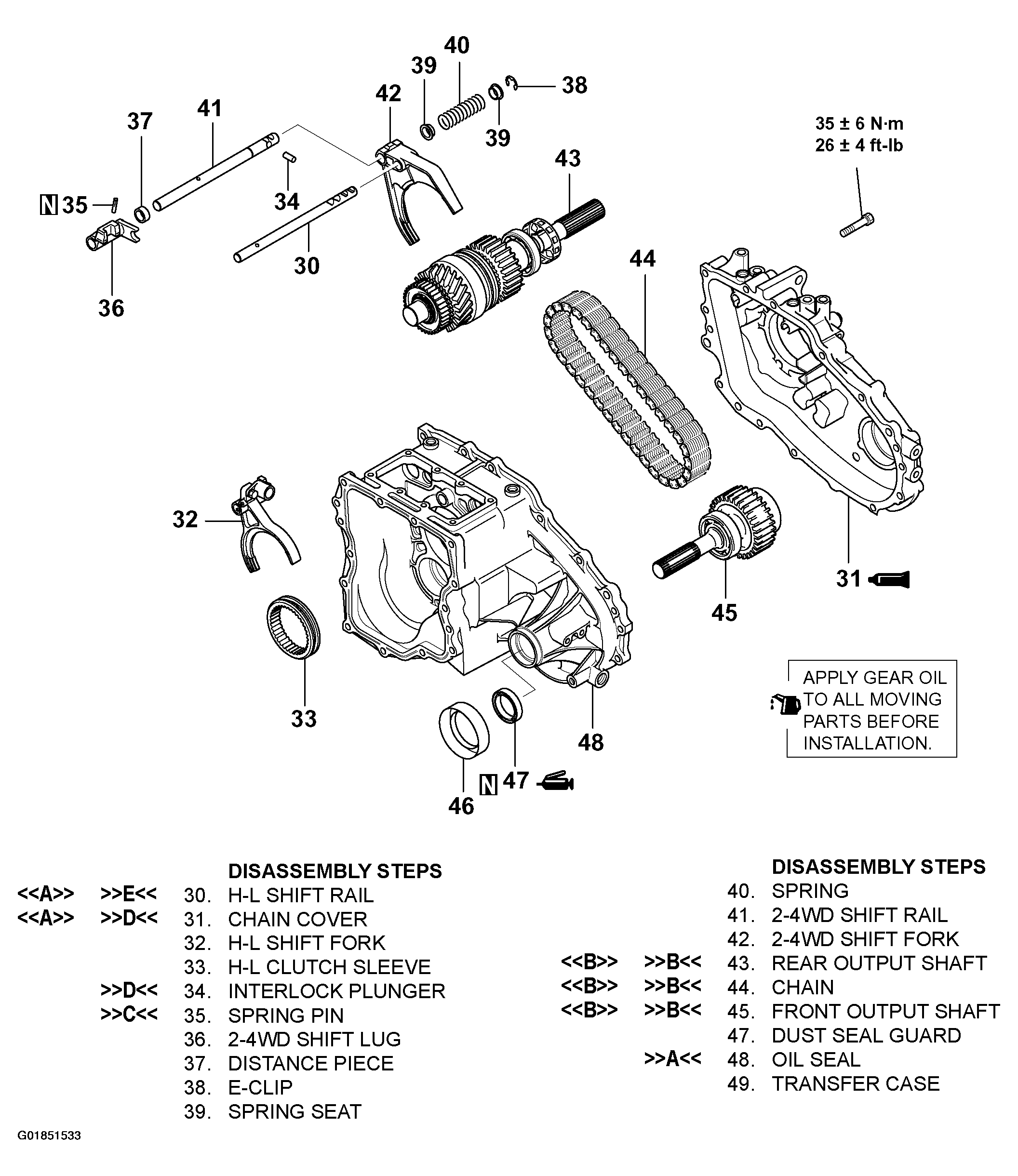

Fig 3: Disassembly & Assembly Of Transfer (Part Time 4WD - 3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990929: Installer Adapter
• MB990938: Handle
