Disassembly And Assembly

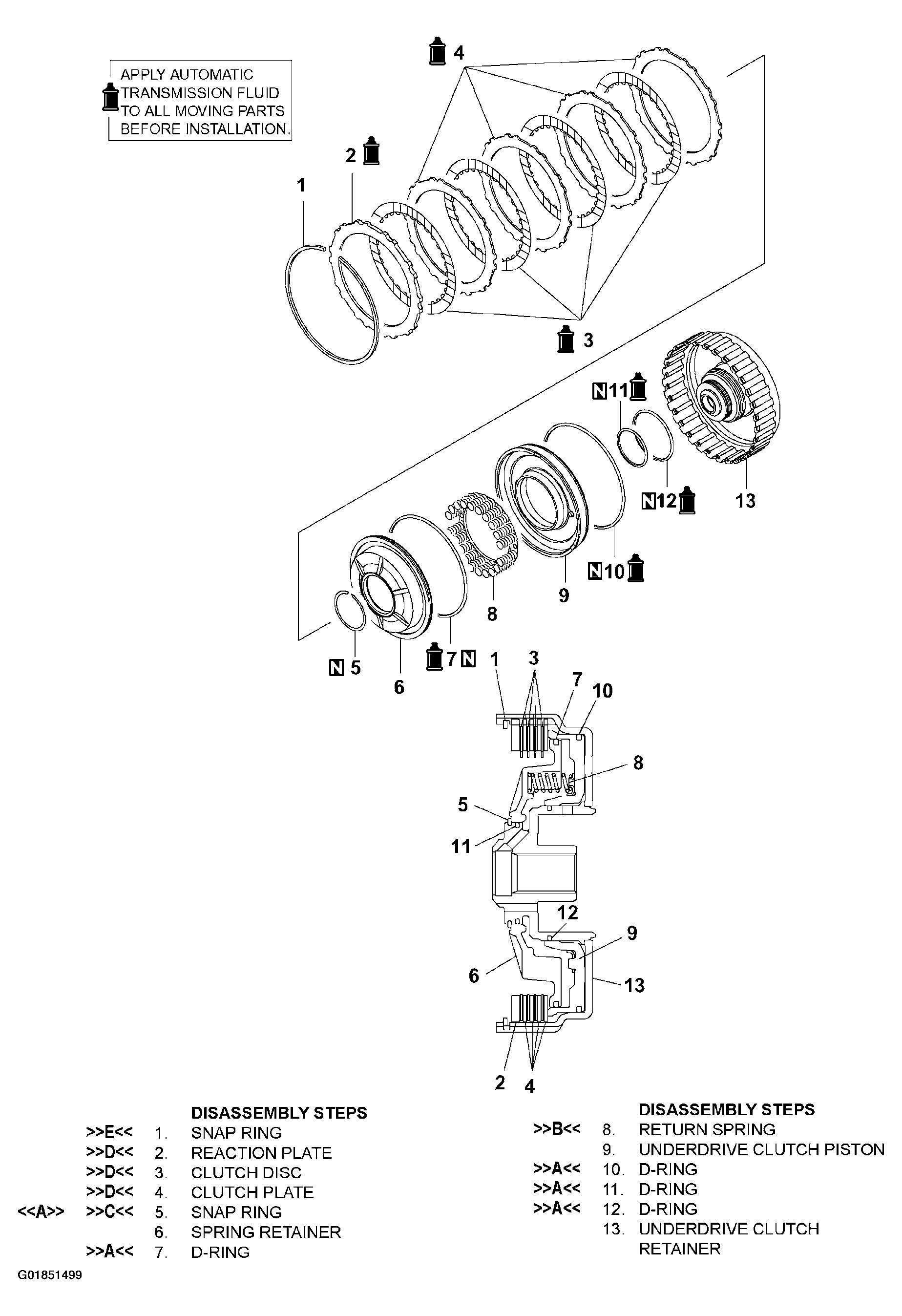

Fig 1: Disassembly & Assembly Of Underdrive Clutch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991629: Spring Compressor
• MD998907: Spring Compressor
• MD998924: Spring Compressor Retainer
