Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Auto-Cruise Control System
›
Auto-Cruise Control System Diagnosis
›
Data List Reference Table
Data List Reference Table

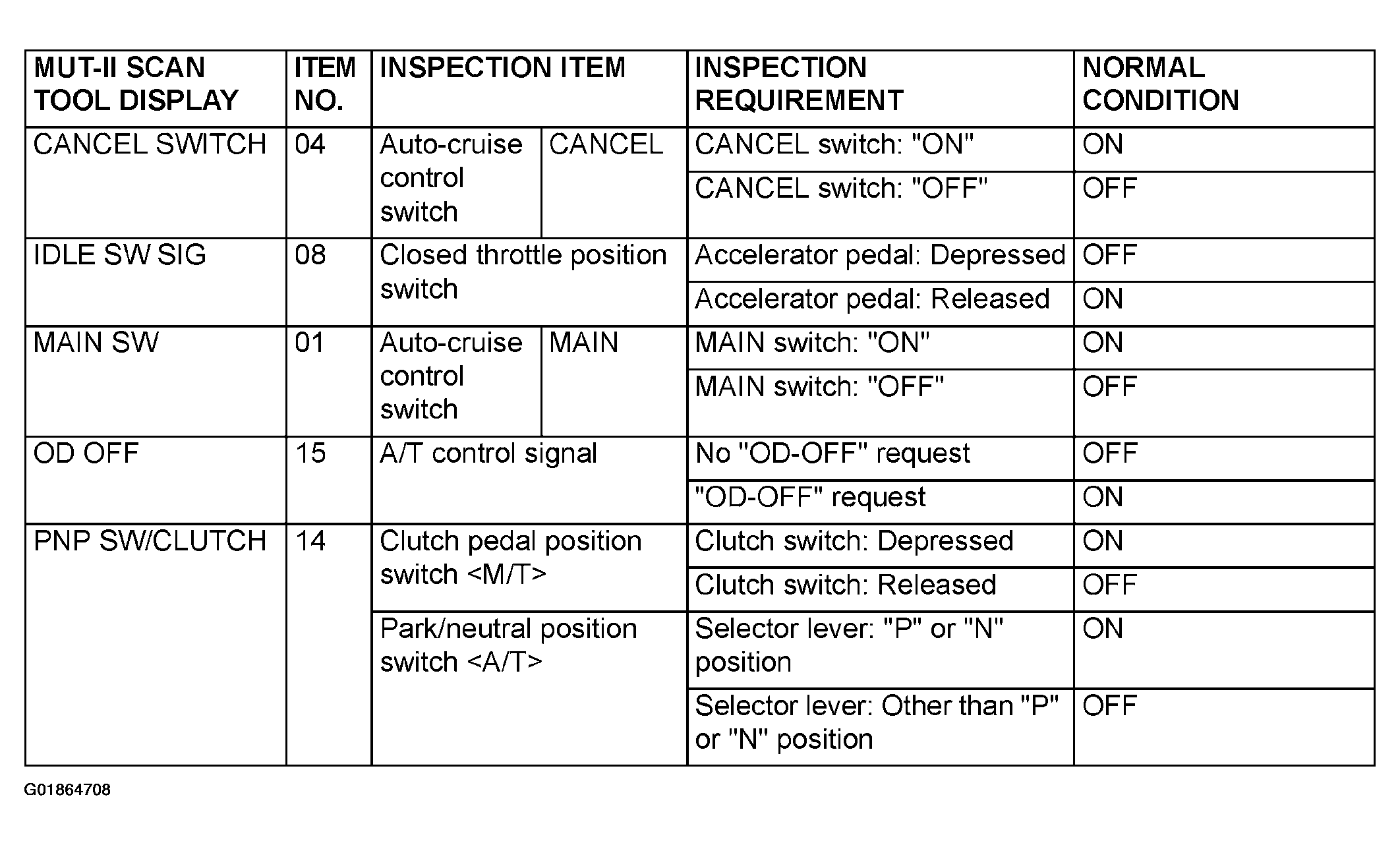

Fig 1: Data List Reference Table (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

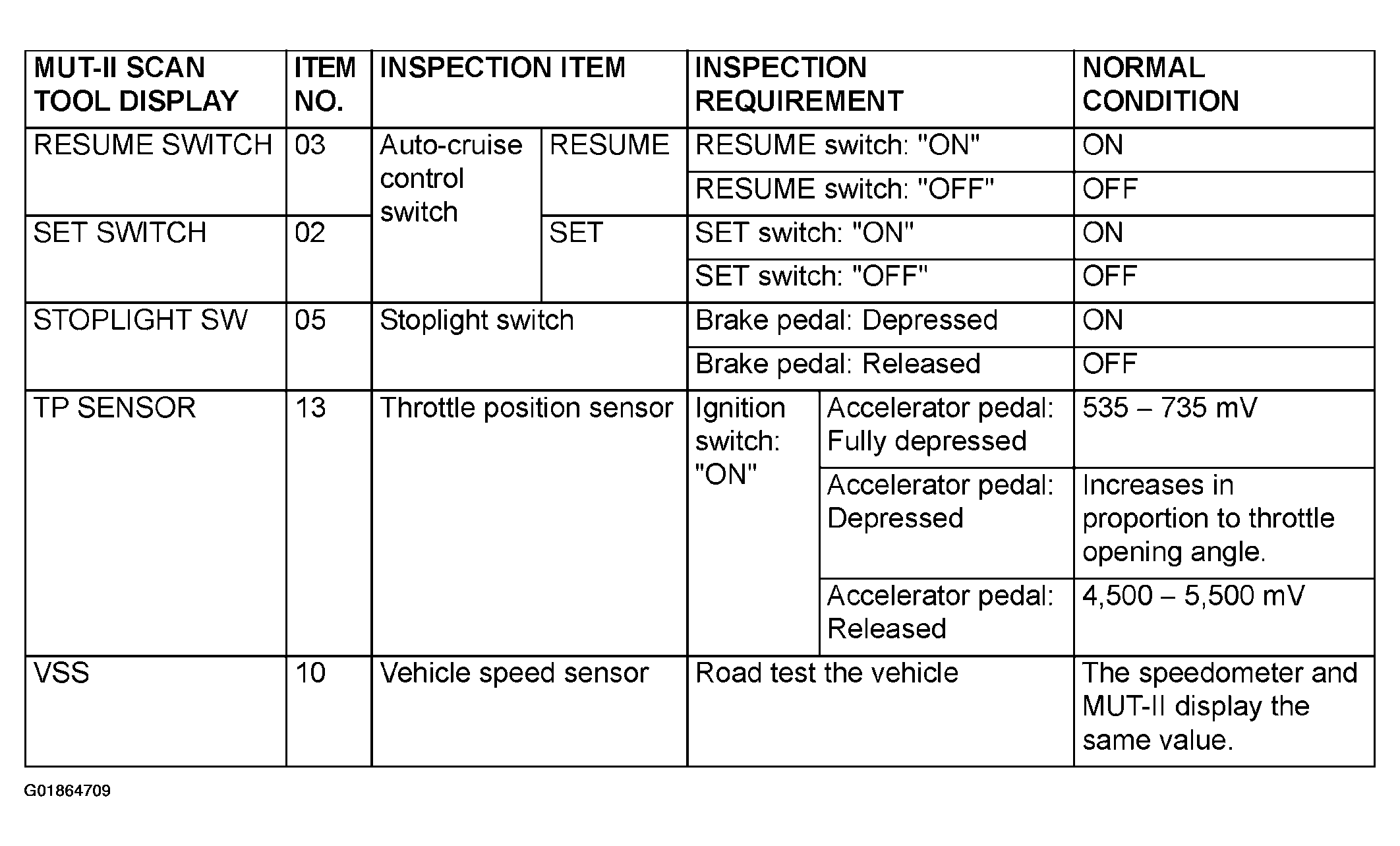

Fig 2: Data List Reference Table (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
