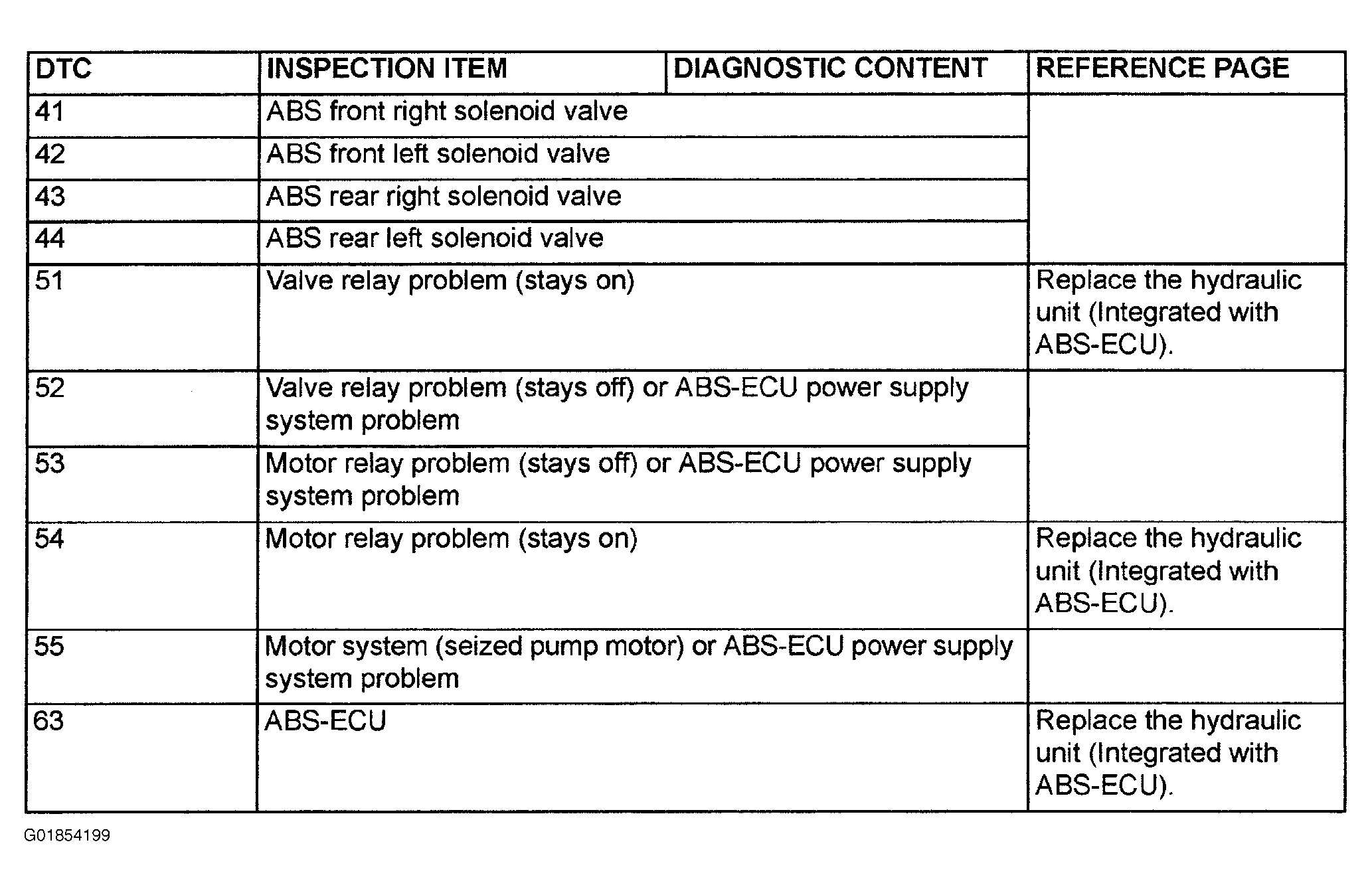

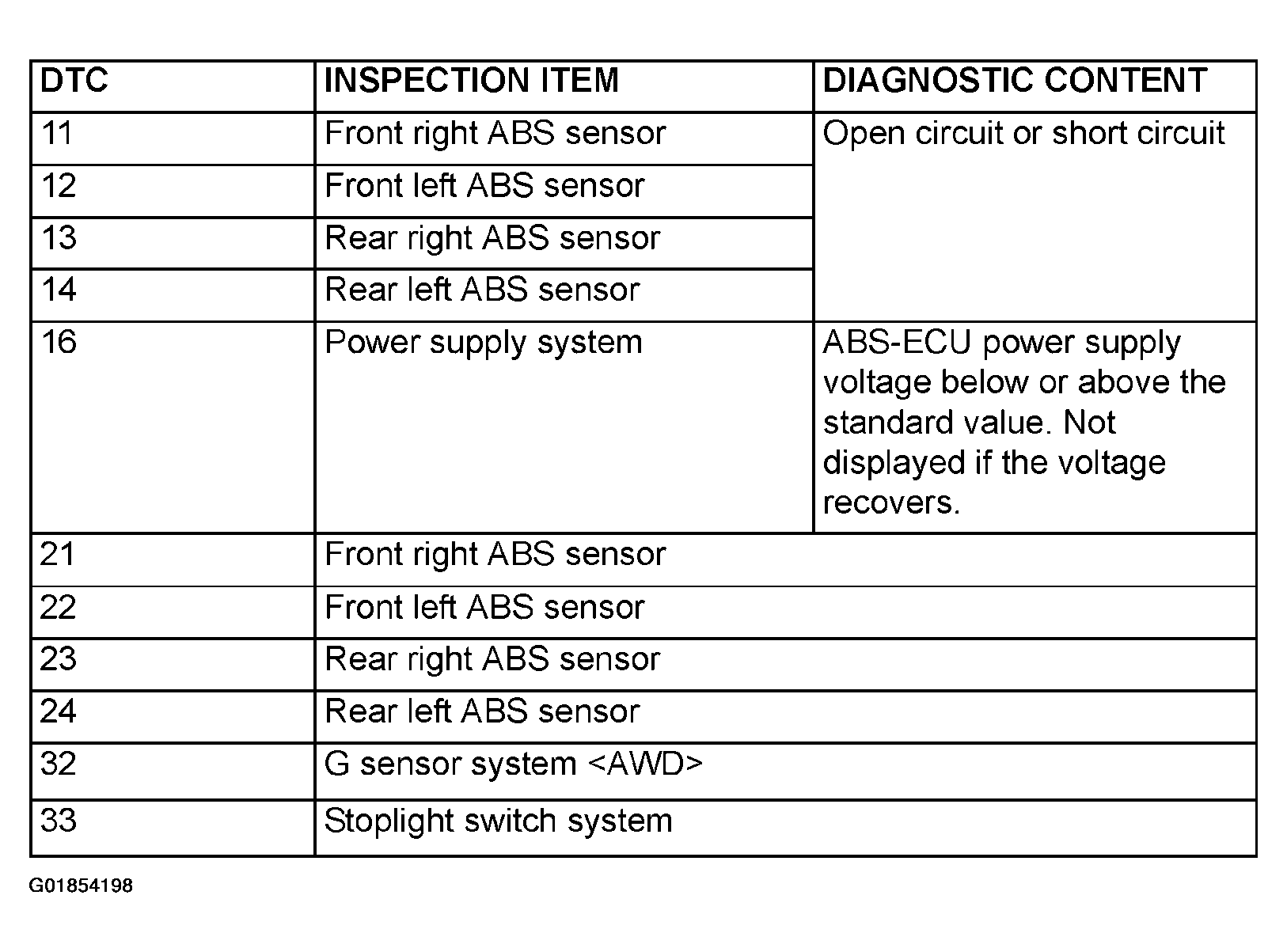

Diagnostic Trouble Code Chart
Follow the inspection chart that is appropriate for the diagnostic trouble code.
NOTE:
Diagnostic trouble code No. 16, 52, 63.
- Code No. 16 is cleared from the memory by turning the ignition switch to ACC position. When the system is properly reset, this code is also cleared from the memory.
- Code No. 52 and 63 are cleared from the memory by turning the ignition switch to ACC position.
