FixVault
Home
›
Mitsubishi
›
2003
›
Outlander LS, AWD
›
Repair and Diagnosis
›
Engine Mechanical
›
Cooling Fans
›
Component Tests
›
Fan Control Relay
Fan Control Relay

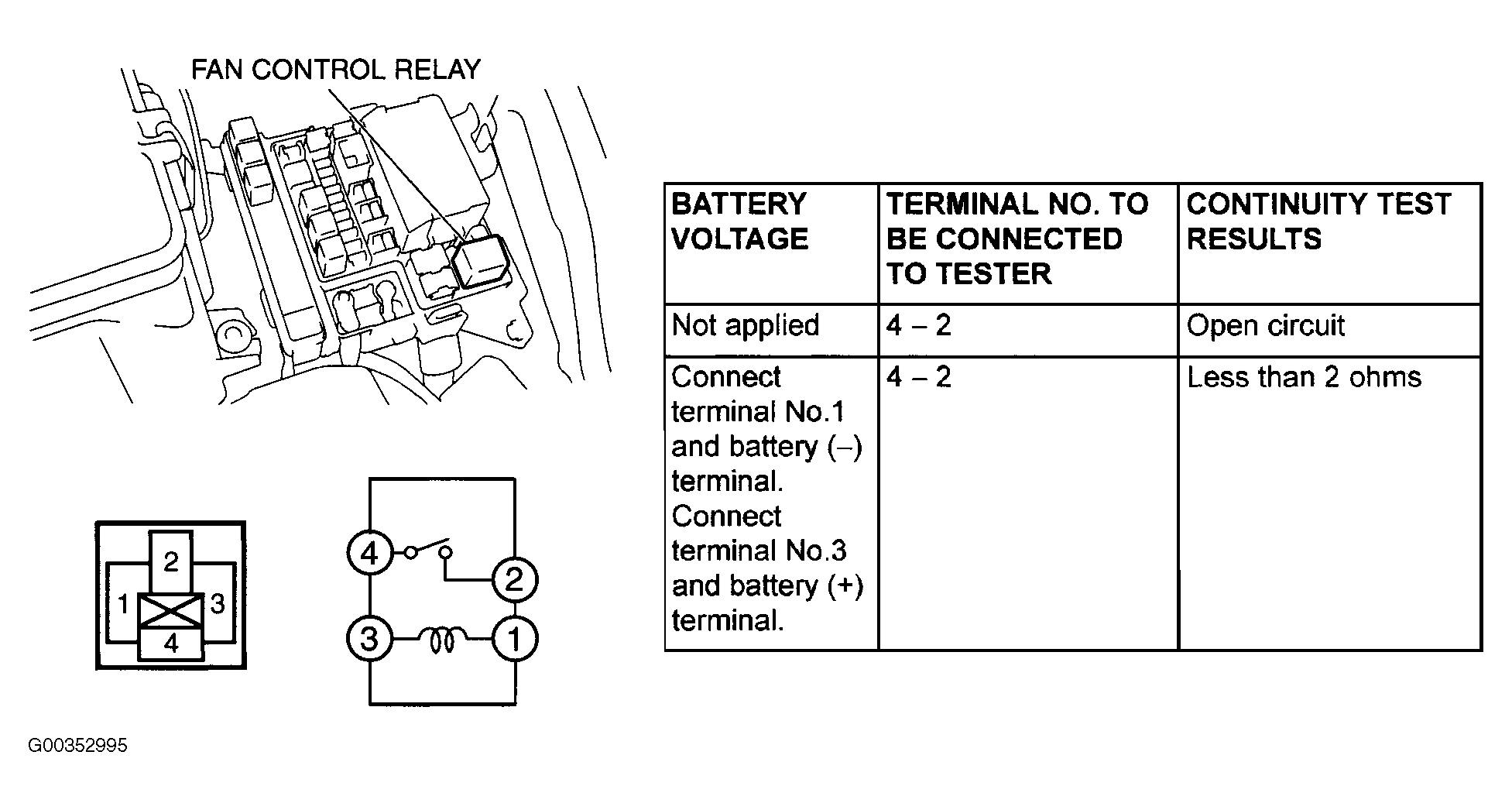

Fig 1: Testing Fan Control Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
