FixVault
Home
›
Mitsubishi
›
2003
›
Outlander LS, AWD
›
Repair and Diagnosis
›
Engine Mechanical
›
Intake And Exhaust
›
Intake Manifold
›
Removal And Installation
›
Notes
Removal And Installation: Notes

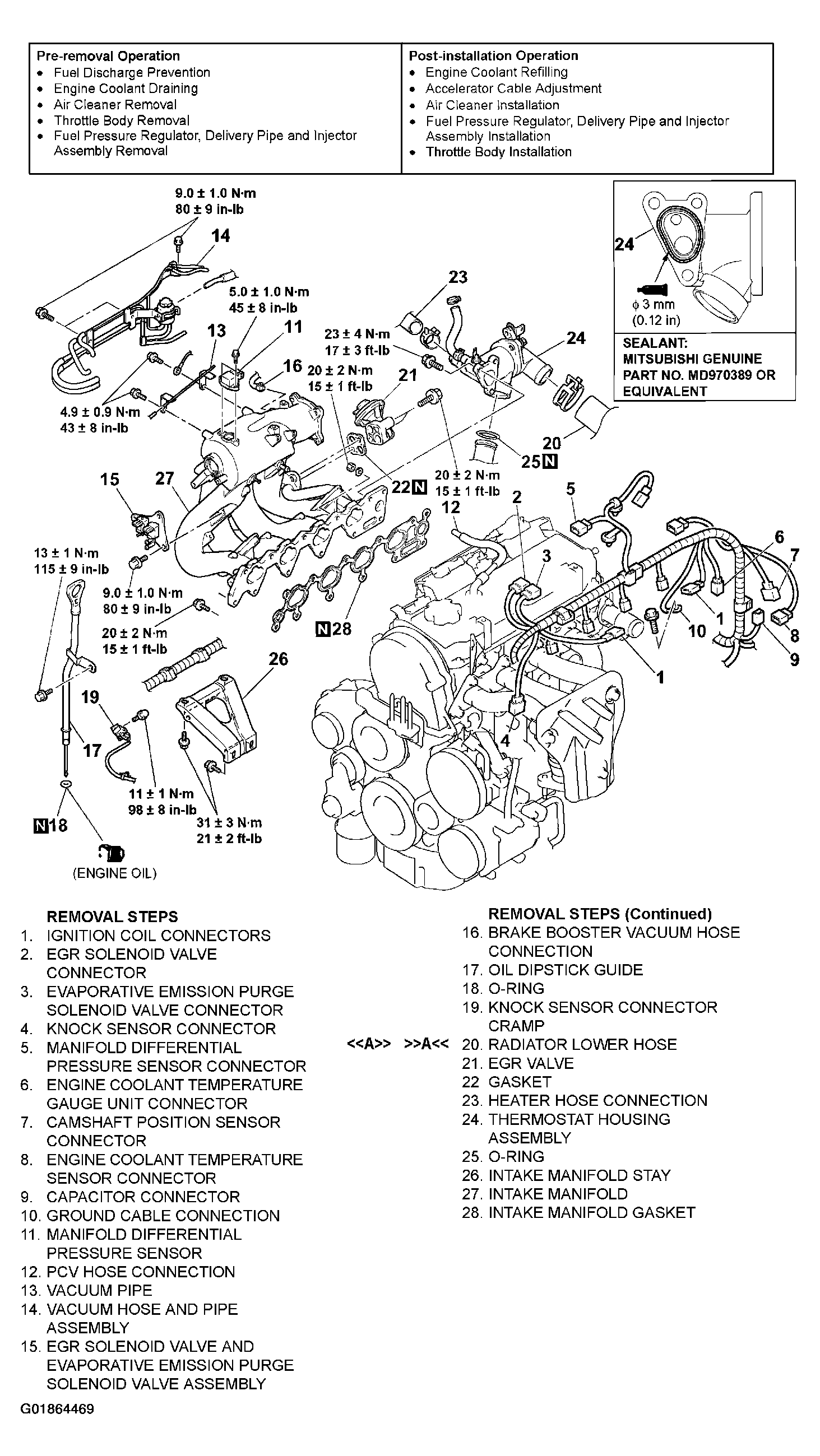

Fig 1: Removing & Installing Intake Manifold
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
