Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

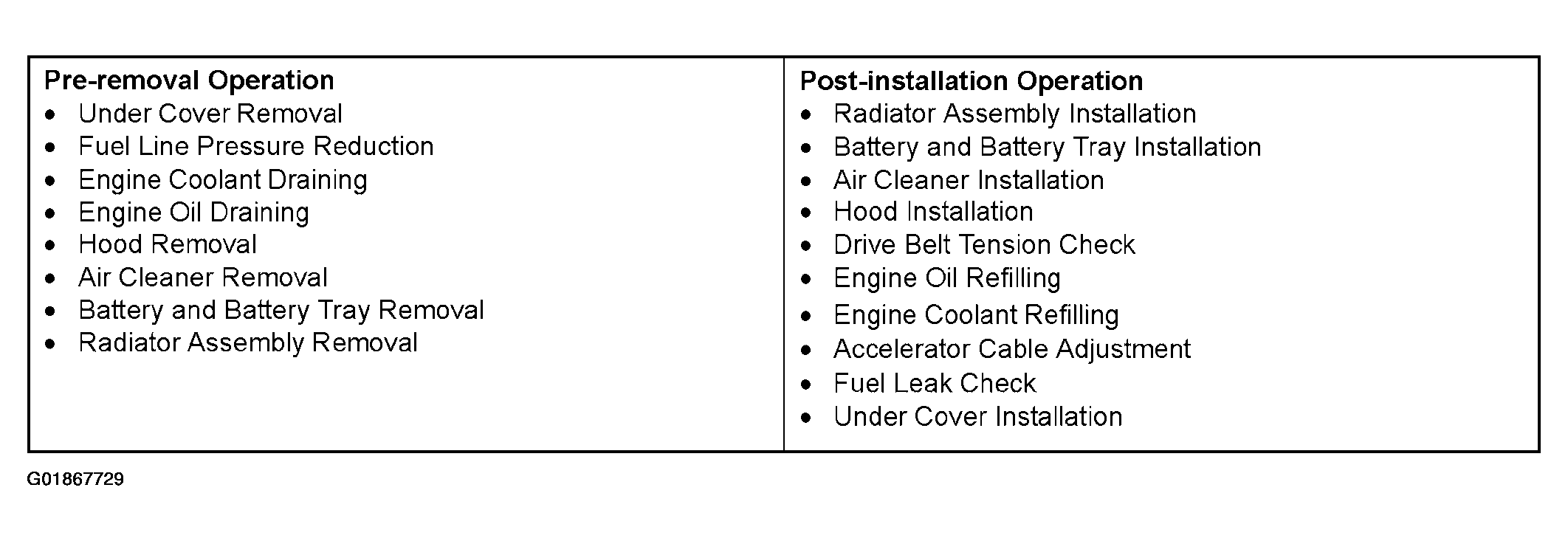

Fig 1: Pre-Removal And Post-Installation Operation
G01867729Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

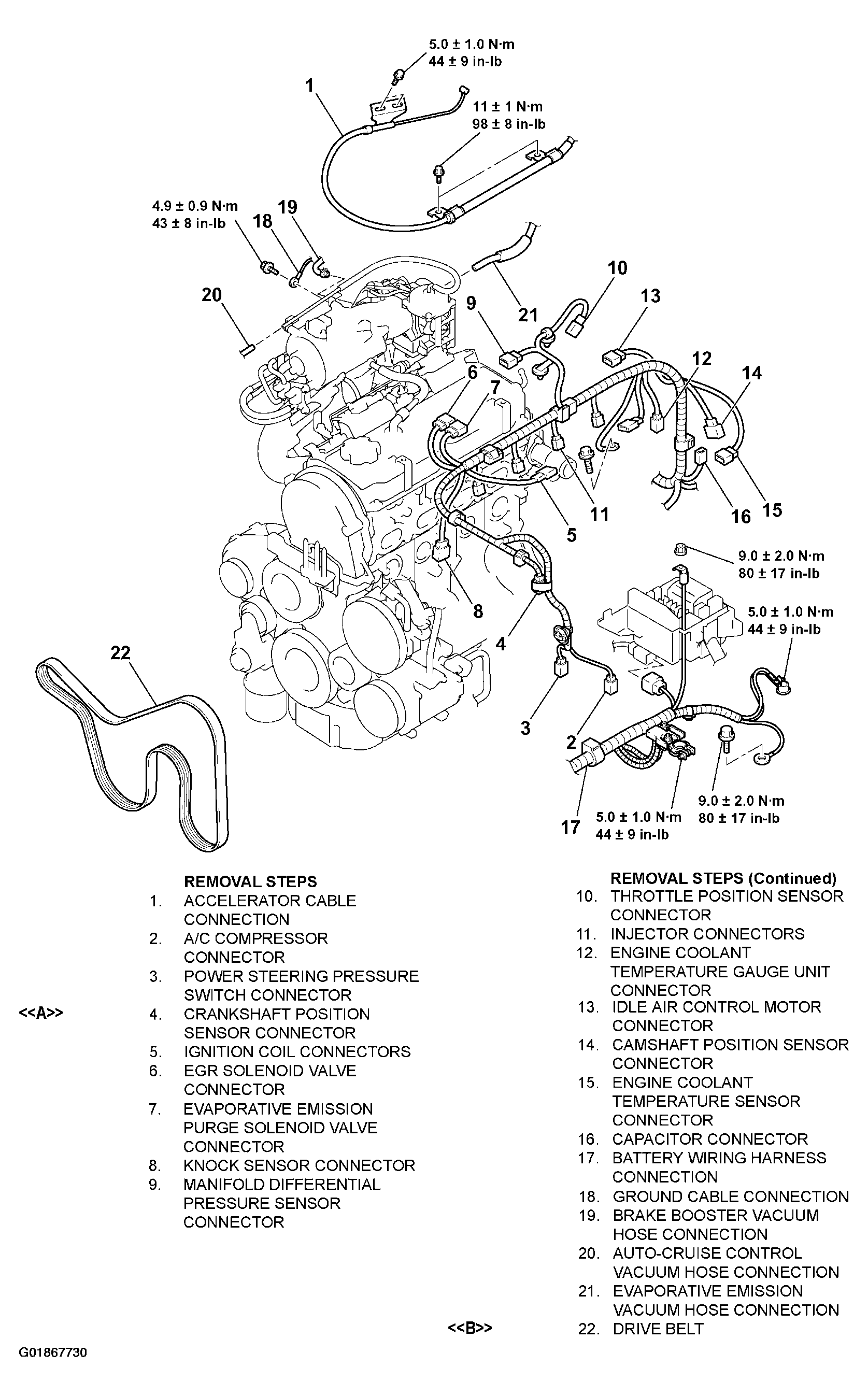

Fig 2: Exploded View Of Engine (1 Of 2)
G01867730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

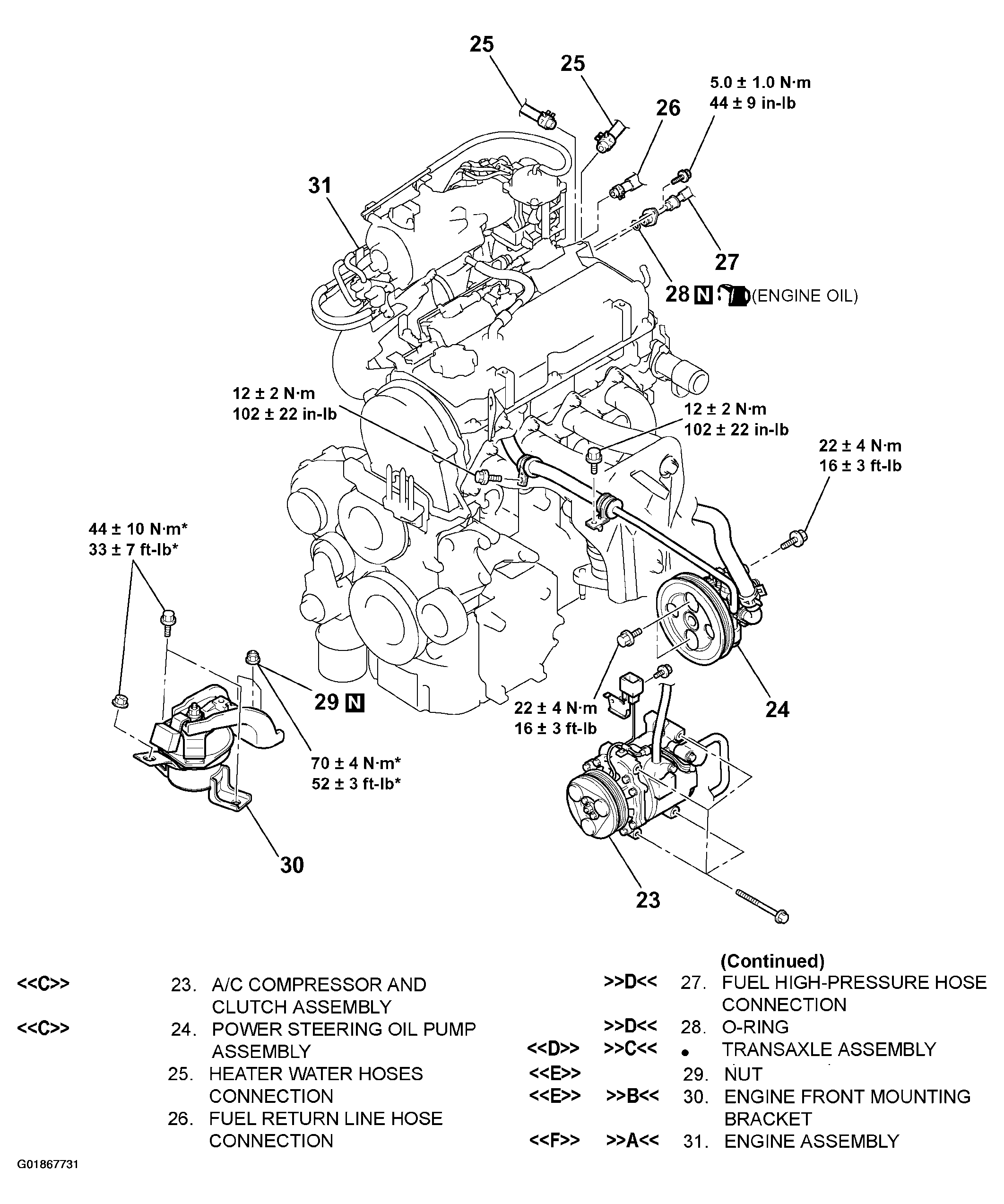

Fig 3: Exploded View Of Engine (2 Of 2)
G01867731Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
