Notes
Removal And Installation: Notes

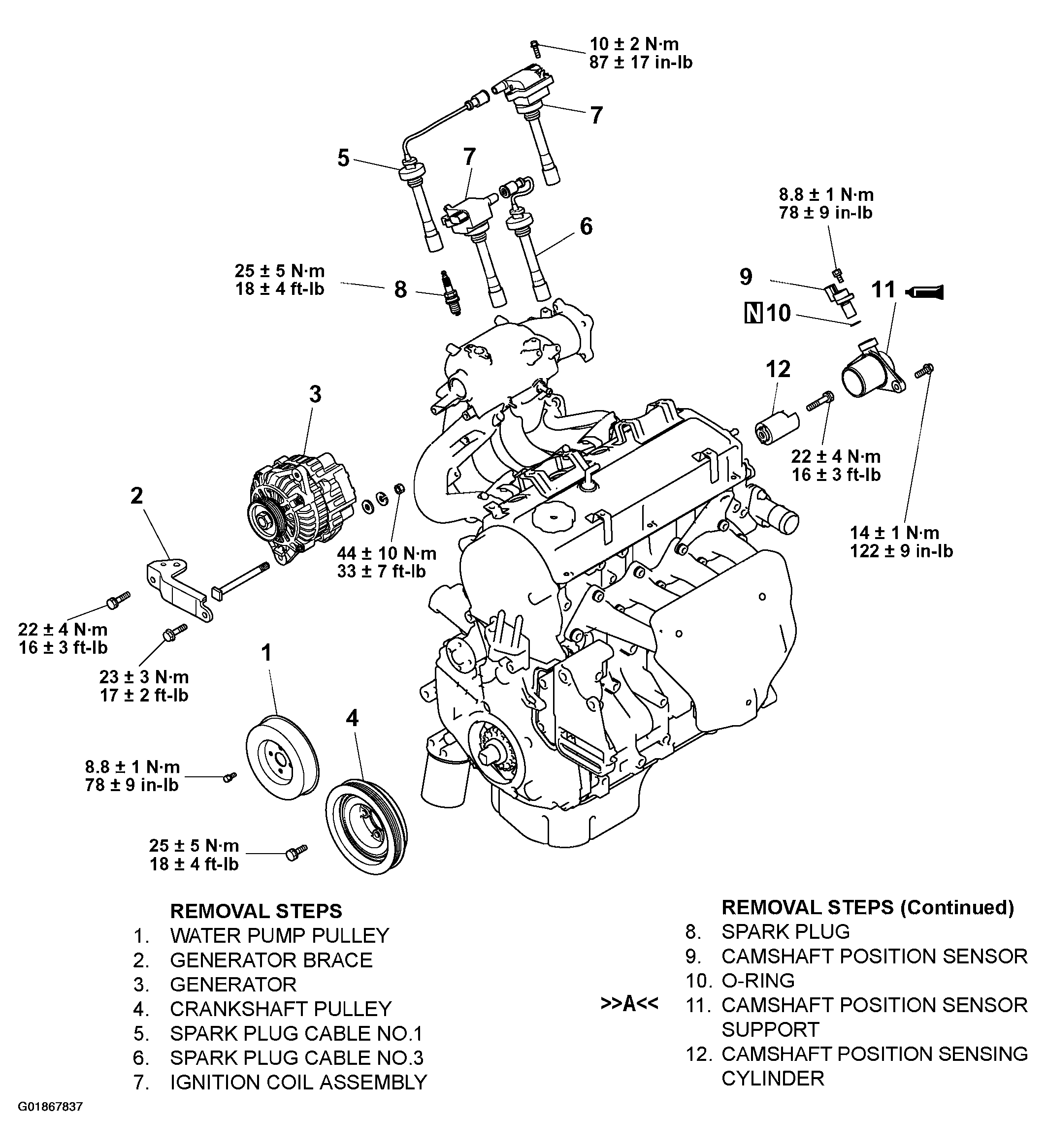

Fig 1: Removing And Installing Generator And Ignition System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
