DTC P0325: Knock Sensor Circuit: Operation

The knock sensor sends a signal voltage to the PCM (terminal No. 90). See Fig 1 .

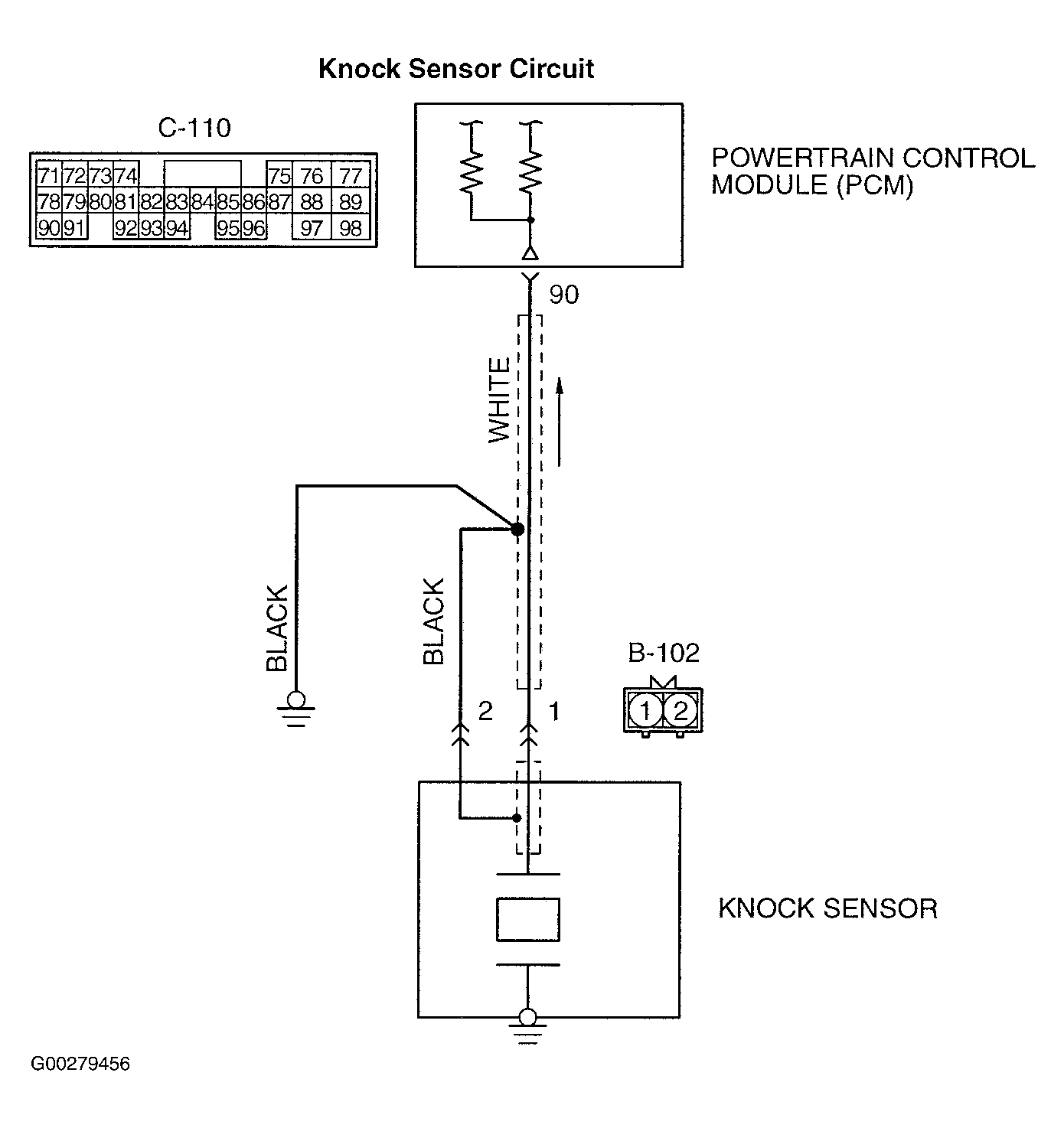

Fig 1: Knock Sensor Circuit Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
