Disassembly And Assembly: Notes

CAUTION: Never disassemble the terminal assembly. It cannot be reassembled.

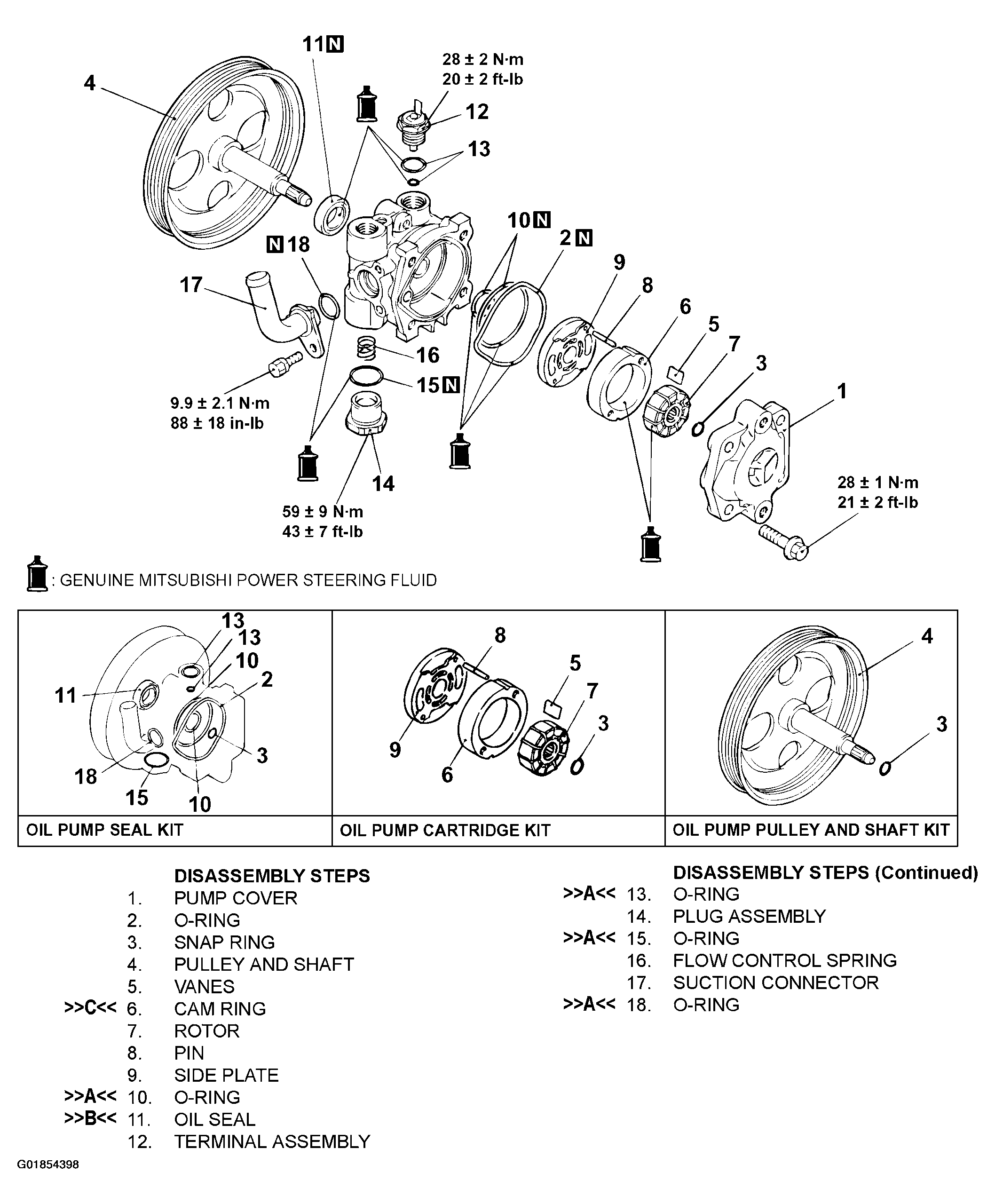

Fig 1: Disassembly & Assembly Of Power Steering Oil Pump

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
