Inspection Procedure Using An Oscilloscope

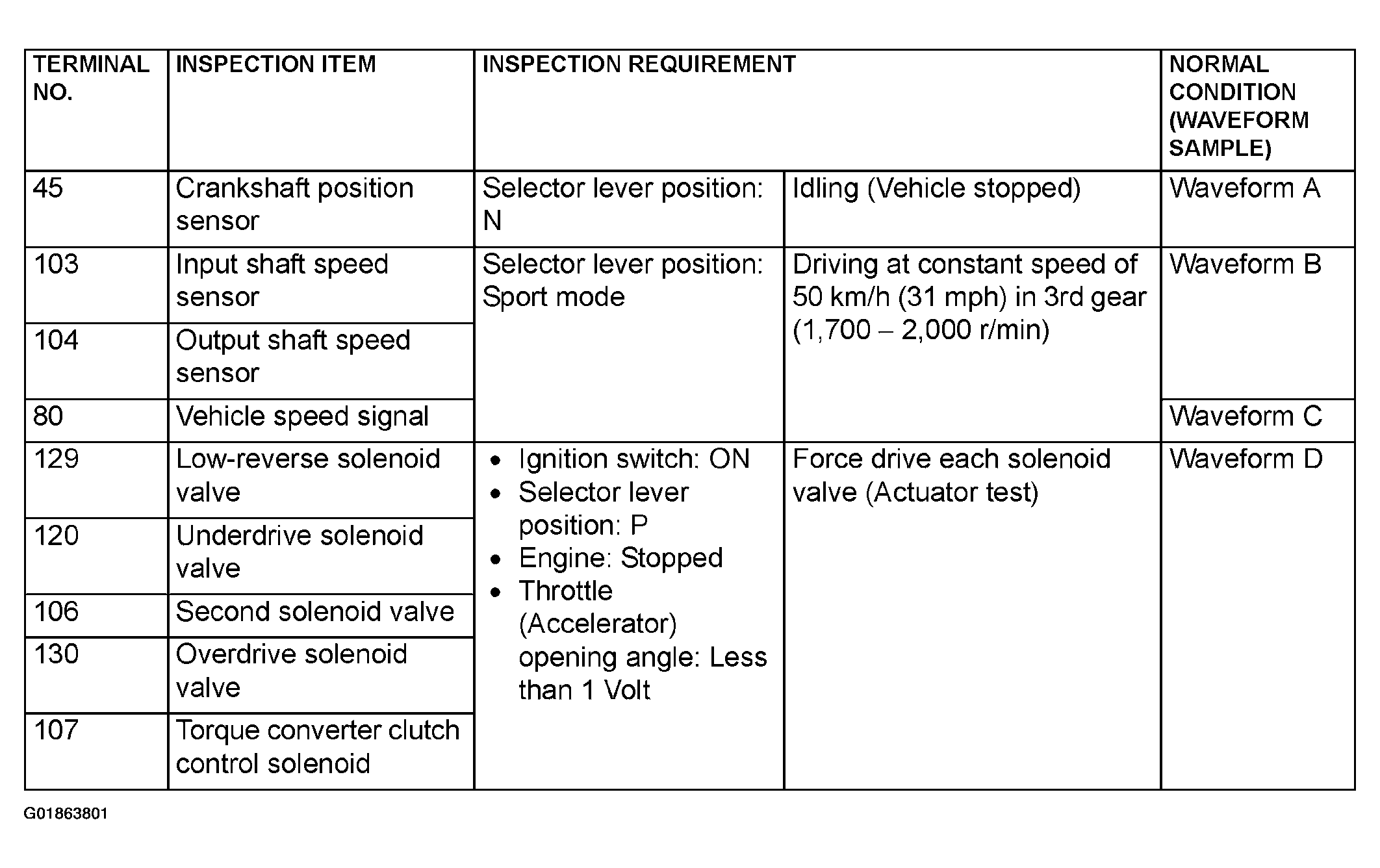

Fig 1: Inspection Procedure Chart Using An Oscilloscope (PCM)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

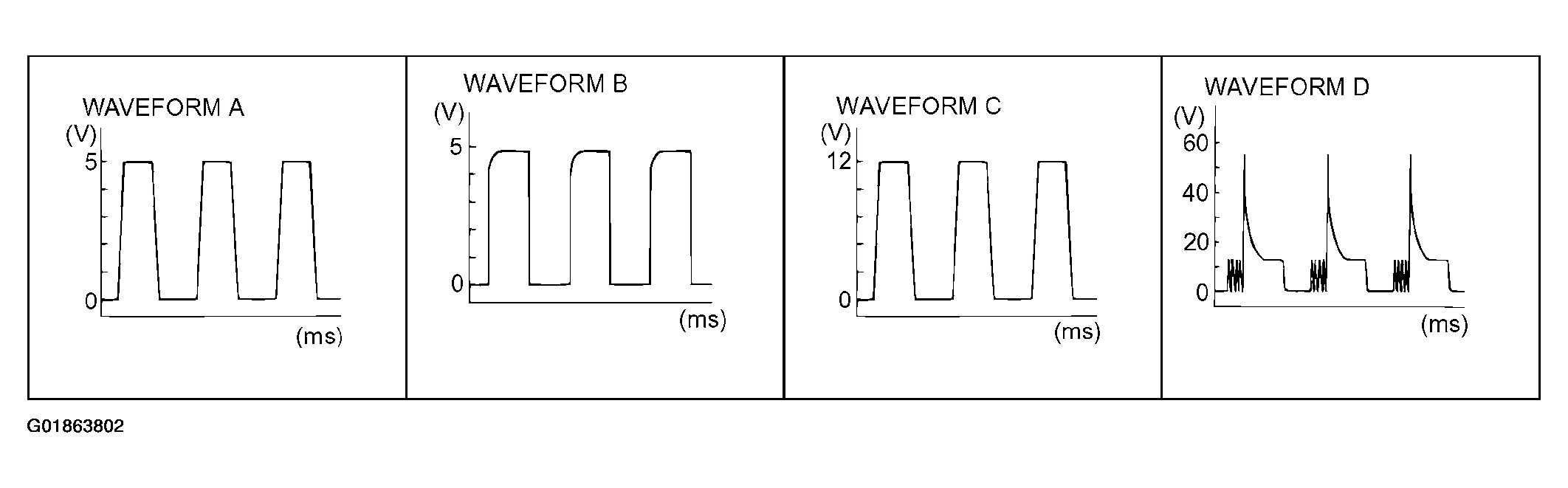

Waveform sample

Fig 2: Waveform Samples

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
