Home › Mitsubishi › 2003 › Outlander LS, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle › General Description › Shift Pattern Control › < Downshift Pattern >

< Downshift Pattern >

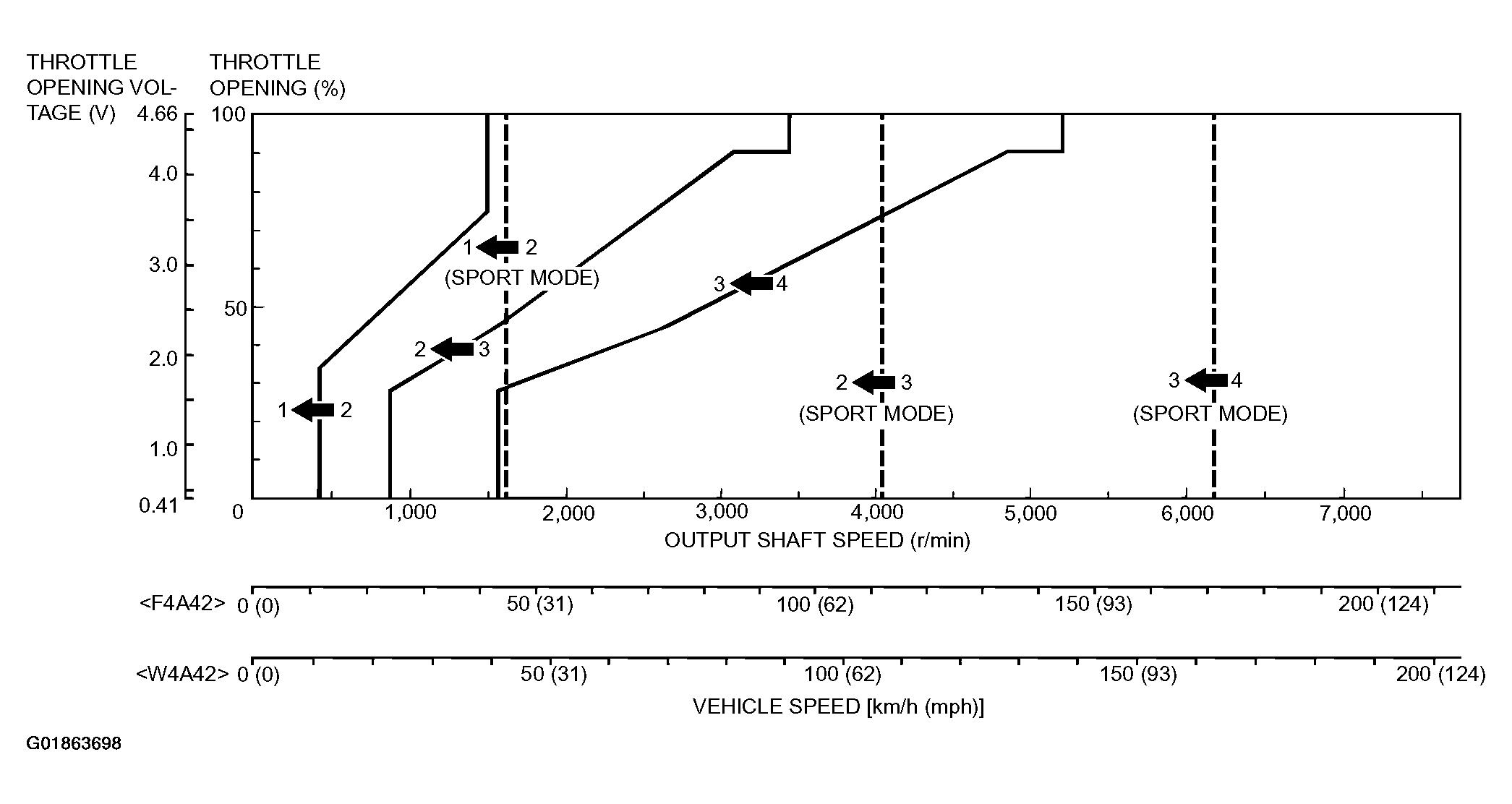

Fig 1: Identifying Shift Pattern Control (Downshift Pattern)
G01863698Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
