Disassembly And Assembly

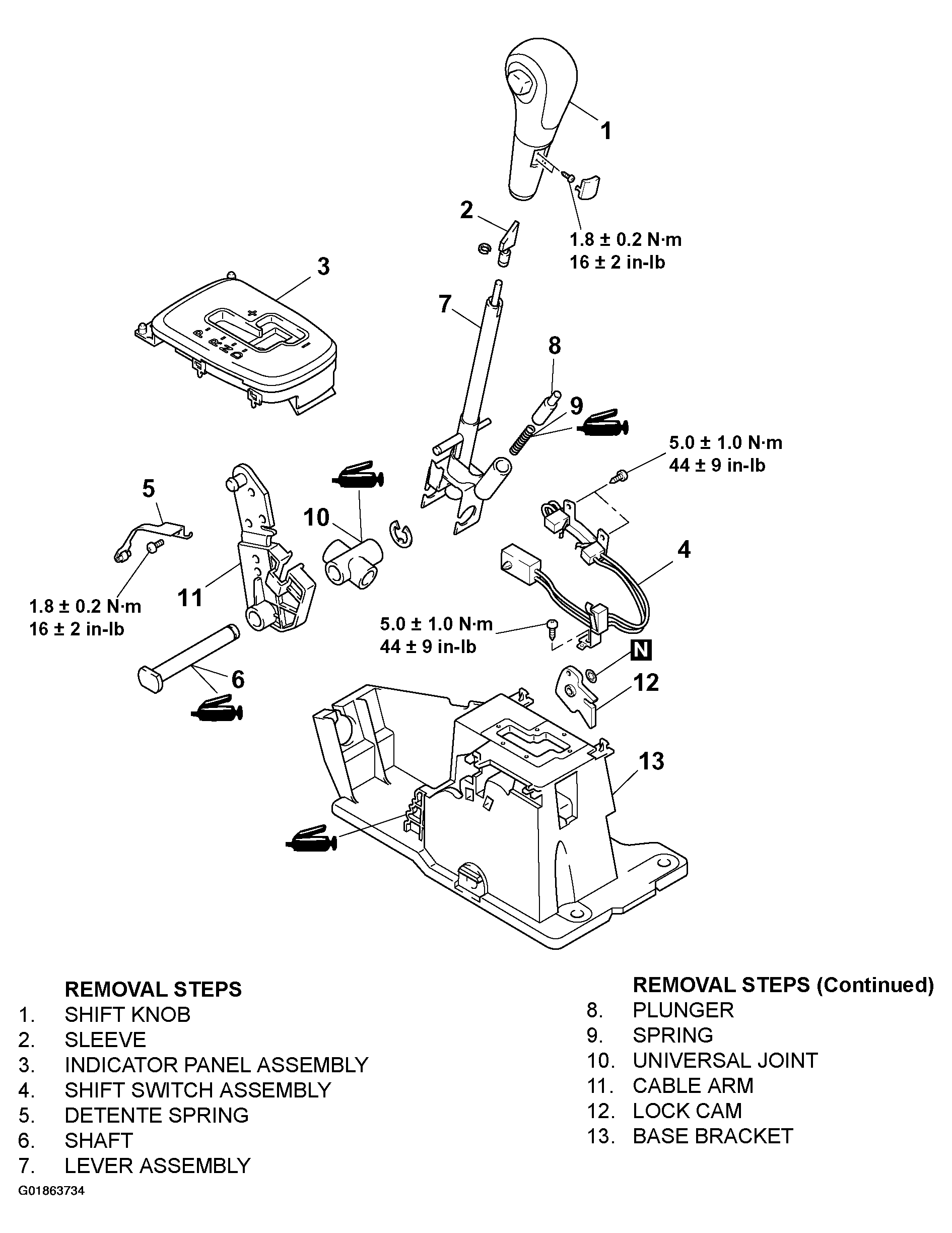

Fig 1: Exploded View Of Transaxle Control
G01863734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
