General Description
›
Function Element Table
Function Element Table

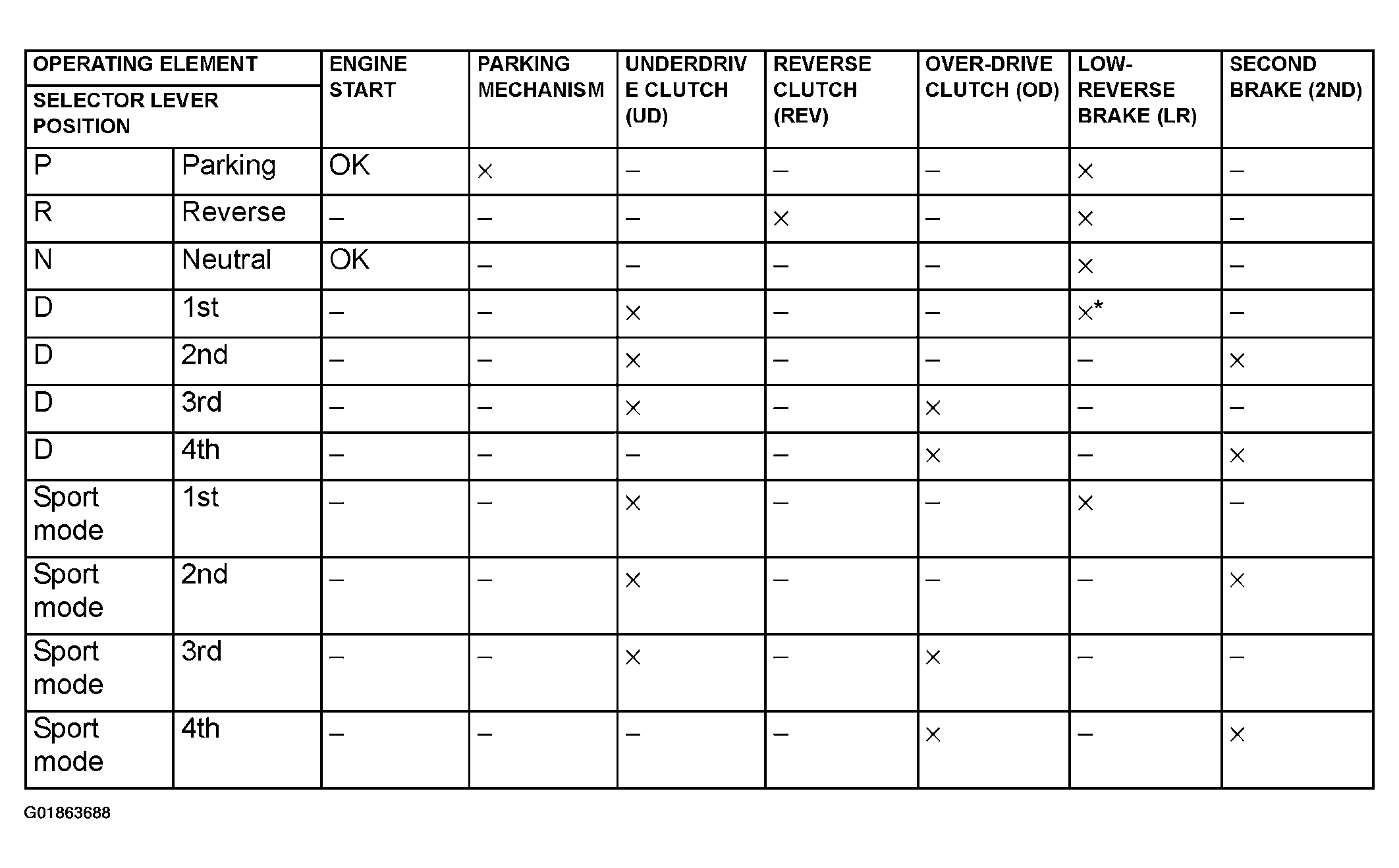

Fig 1: Identifying Transaxle Function Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
