General Description
›
Notes
Automatic Transaxle: General Description: Notes
The A/T come in two models, namely, F4A42 and W4A42.

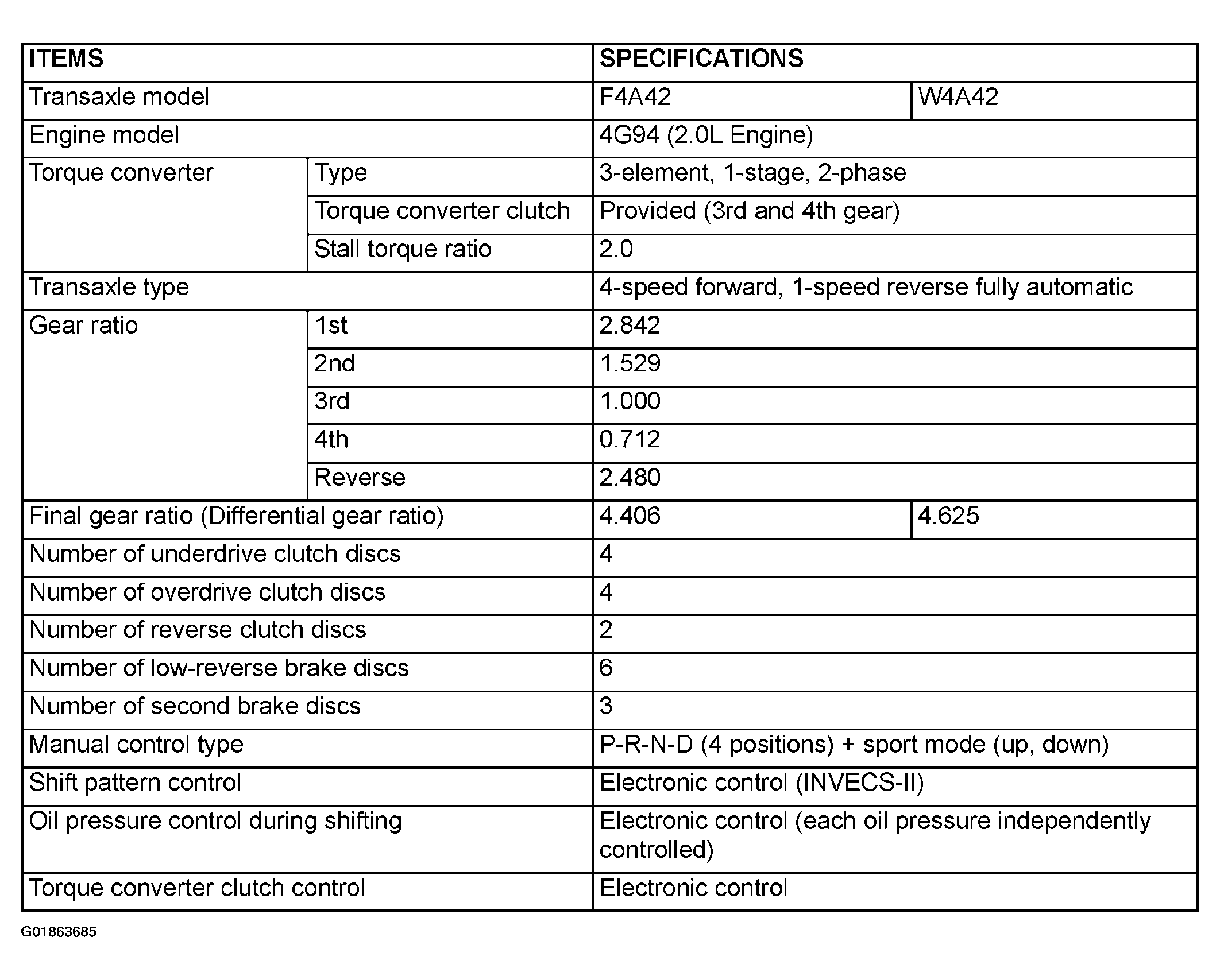

Fig 1: Automatic Transaxle General Description Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
