Actuator Test Specifications

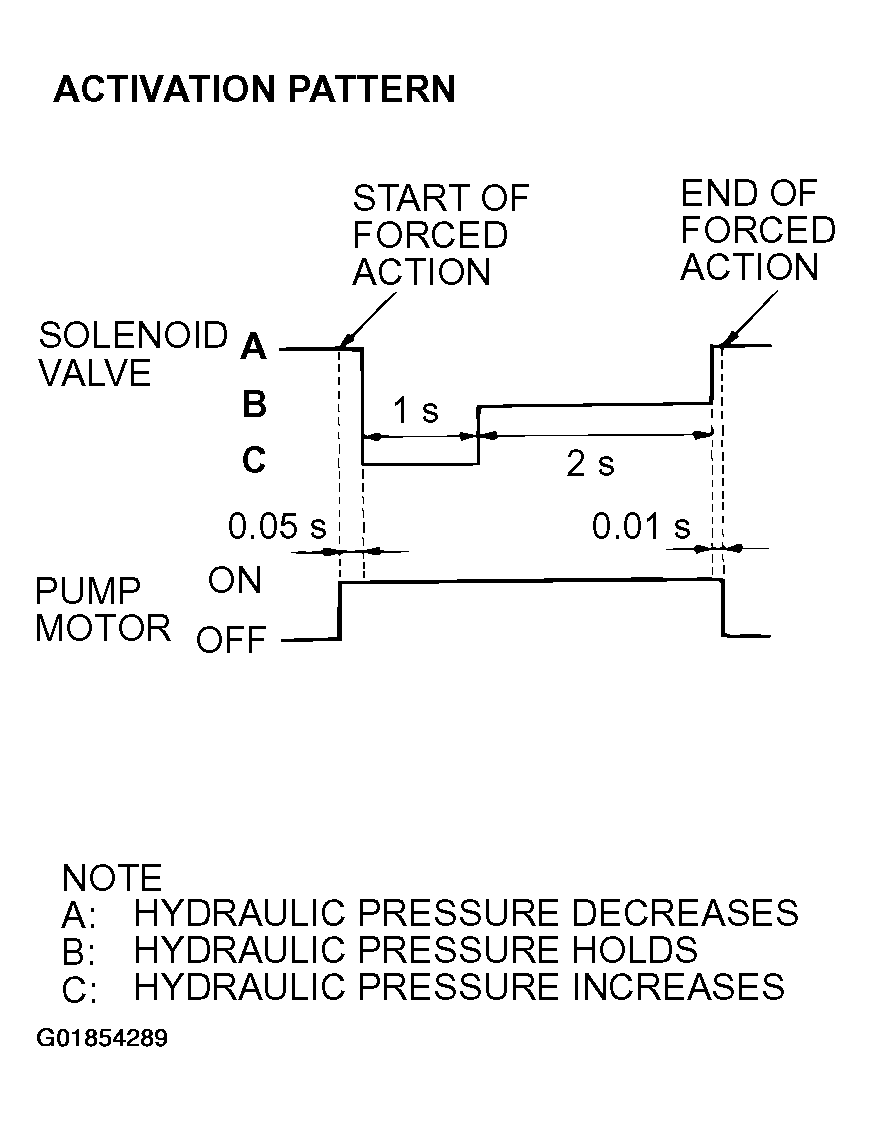

Fig 1: Actuator Test Activation Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

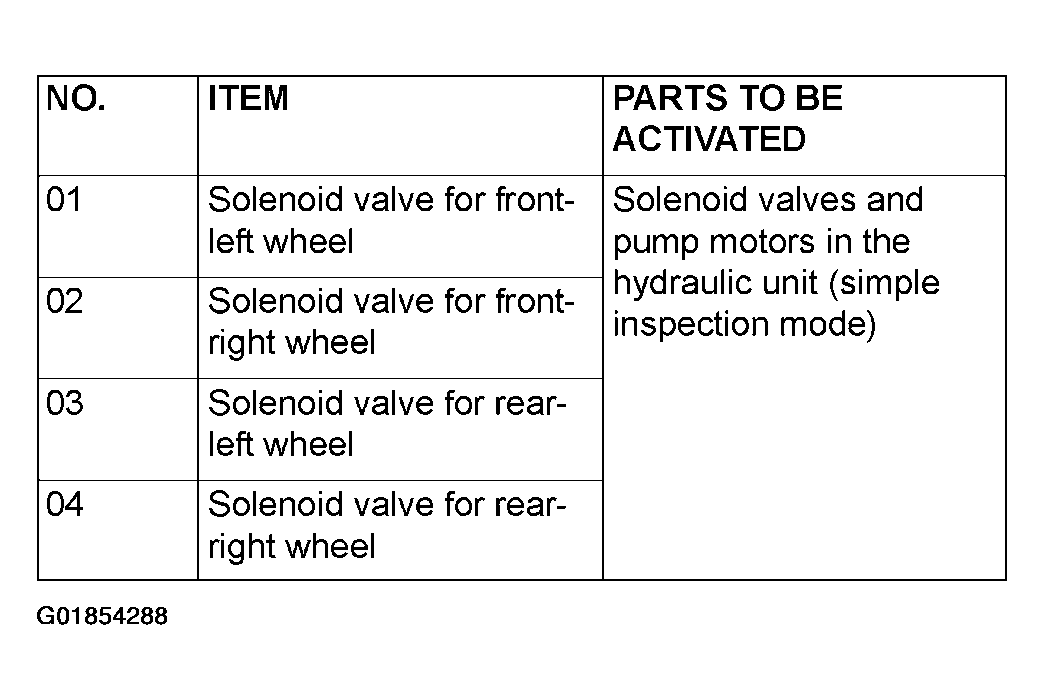

Fig 2: Actuator Test Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
