Waveform Observation Points: Notes

Point A: The height, length and slope of the spark line (refer to ABNORMAL WAVEFORM EXAMPLES 1, 2, 3 AND 4 ) show the following trends.

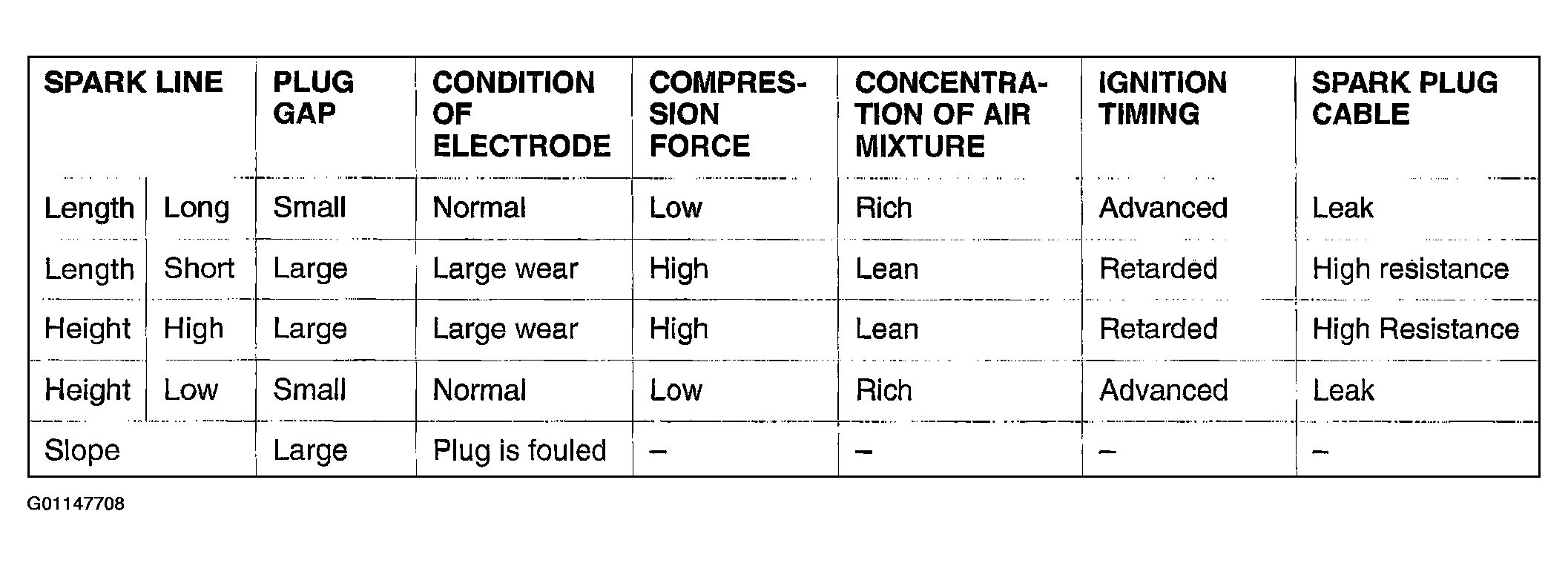

Fig 1: Spark Plug Specification Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Point B: Number of vibration in reduction vibration section

(Refer to ABNORMAL WAVEFORM EXAMPLE 5 )

Fig 2: Coil And Condenser Specification Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Point C: Height of Zener voltage

Fig 3: Height Of Zener Voltage Specification Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
