Key ID Register

NOTE: Using the key ID register function will cause all key IDs that have been previously registered in the immobilizer-ECU to be erased. All keys need to be registered. Those which have been registered before should be on hand before using this function.

NOTE: If registering more than one key, do not disconnect scan tool MB991502 halfway through the registration process. If the ignition switch is turned to "ON" position while scan tool MB991502 is disconnected, restart the registration operation from the first key.

NOTE: After registering key IDs, check that the engine can be started using all of the keys that have been registered. If the engine will not start, refer to IMMOBILIZER SYSTEM DIAGNOSIS .

Connect the scan tool to the data link connector. Select Immobilizer, then select "SPECIAL FUNCTION." Select "key ID register."
Input the password. Use the "UP" and "DOWN" keys to change the current password digit to a value between 0 and 9. Use the "LEFT" and "RIGHT" keys to move to a different password digit. Press the "YES" key to accept the password.

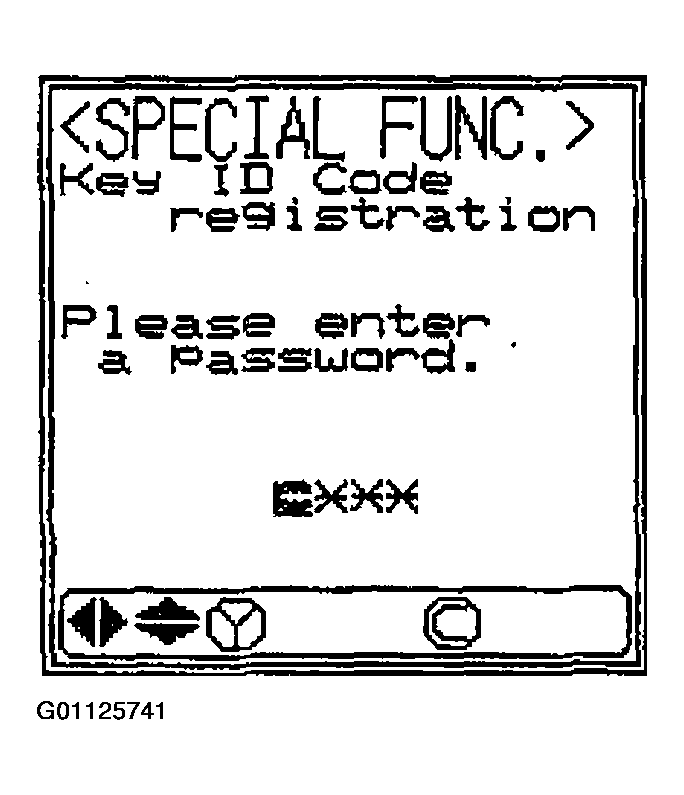

Fig 1: Displaying Key Id Registrations Mode (1 Of 5)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If an incorrect password is input five times in a row, this screen is displayed and the immobilizer-ECU switches to "Unauthorized operation, start-prevention mode."

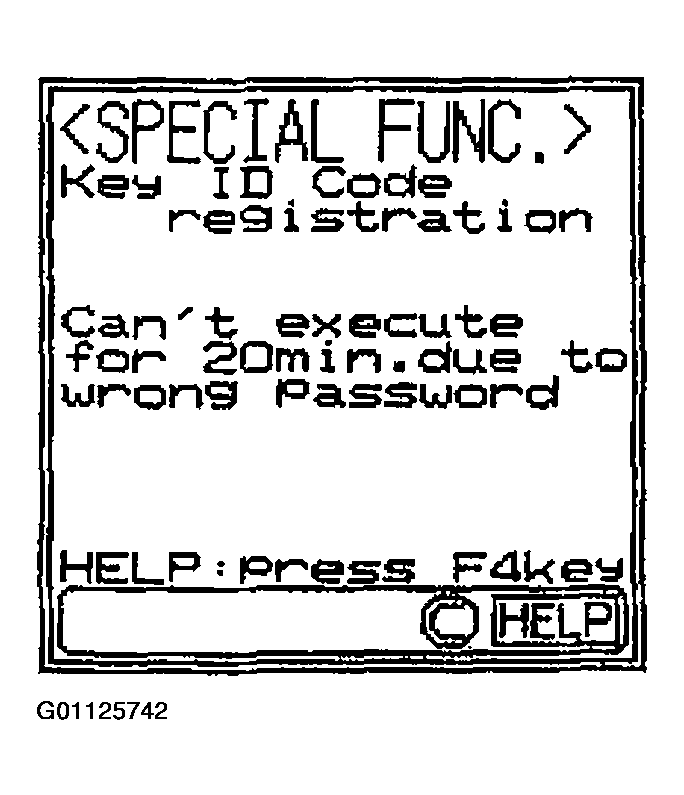

Fig 2: Displaying Key Id Registrations Mode (2 Of 5)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert the key to be registered into the ignition switch. Turn the ignition switch to the "ON" position. Press the "YES" key to start key ID registration.

Fig 3: Displaying Key Id Registrations Mode (3 Of 5)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
This will be displayed when the key ID registration is successful.
If an error occurs during key ID registration, the message "Can't execute" will be displayed. If the key has already been registered, "Key ID has been registered" will be displayed.

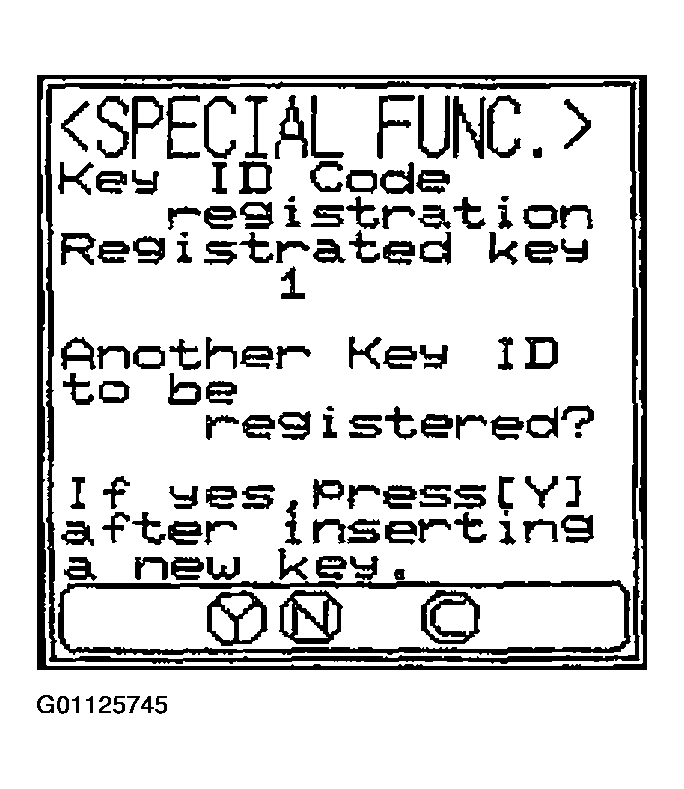

Fig 4: Displaying Key Id Registrations Mode (4 Of 5)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The number of keys currently registered will be displayed. To Register an additional key, replace the ignition key with the next key to be registered within five seconds and then press the "YES" key. Press the "YES" key. Key ID registration screen will be displayed, then register another key.
NOTE: A maximum of eight different keys can be registered.
If key ID registration is complete, press the "NO" key.
